26 gallon "pico" build

Mebeknob

New member
I've waited too long to post my build. I wanted to wait till I had loads of pictures and a few months of successful reefing before I started to post.
So here it goes.

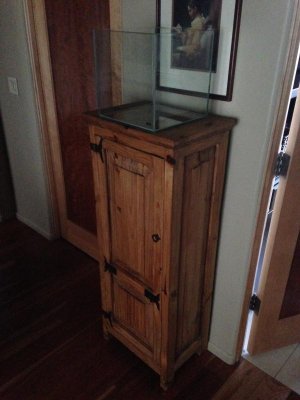

Display Tank:
Mr. Aqua 12" cube
DIY overflow (low profile modified beananimal)

Sump:
DIY 12"x13"x15" mechanical filtration and beananimal overflow
DIY 12"x13"x15" biological filtration and ato reservoir

Lighting:
DIY merge of radion and hydra26

Filtration:
Live Rock
SCA skimmer
ChemiPure Elite


Attachments

  • IMG_1271.jpg
    50.6 KB · Views: 0

Mebeknob

New member

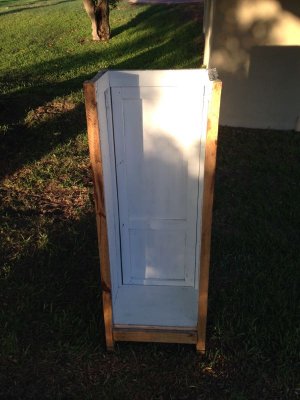

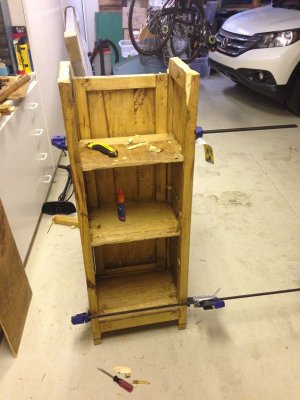

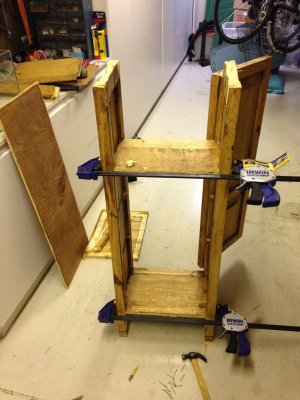

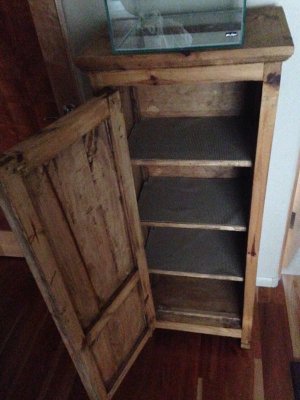

The stand had to be modified


Attachments

  • IMG_0734.jpg
    67.1 KB · Views: 0
  • IMG_0808.jpg
    70.8 KB · Views: 0
  • IMG_0812.jpg
    69.7 KB · Views: 0
  • IMG_0819.jpg
    69.8 KB · Views: 0

Mebeknob

New member

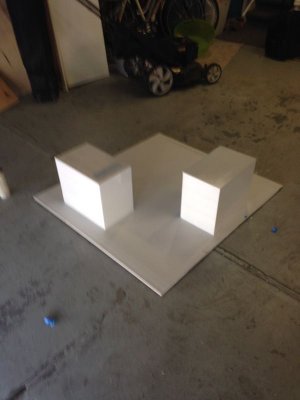

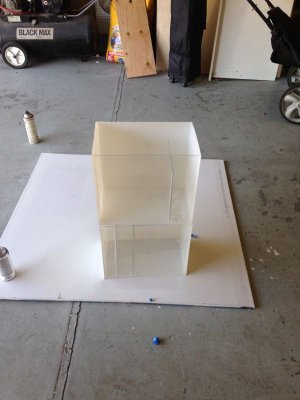

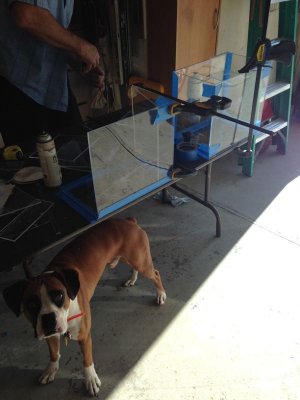

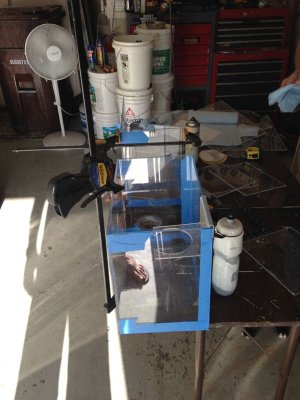

I found a piece of acrylic of craigslist for $40

I cut the pieces on a table saw and put them together with #4 acrylic glue and used silicon as a backup. (this was my first attempt at acrylic and I didn't want a leak)

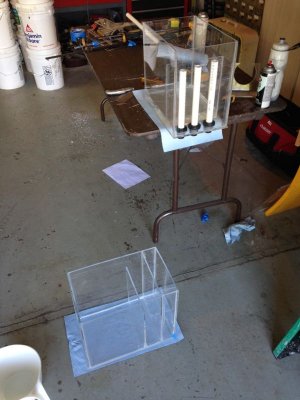

The blue water was to see if my ATO leaked into the main chamber of the sump.

I then painted the backs white and installed the bulkheads and bqeananimal overflow on the top sump


Attachments

  • IMG_0941.jpg
    54 KB · Views: 0
  • IMG_0942.jpg
    66.8 KB · Views: 0
  • IMG_0947.jpg
    65.3 KB · Views: 0
  • IMG_0951.jpg
    37.6 KB · Views: 0
  • IMG_0952.jpg
    53.6 KB · Views: 0

Mebeknob

New member

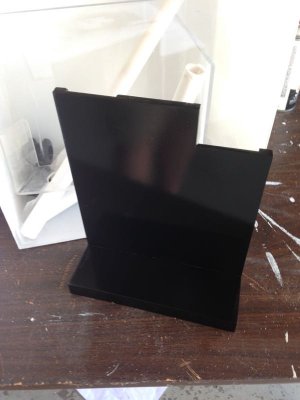

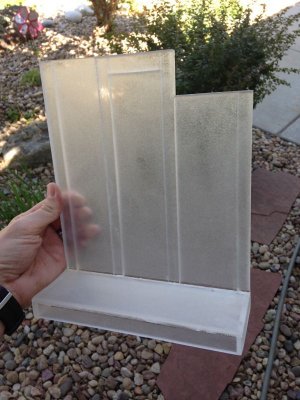

I then built my overflow.

Since I wanted it to be low profile, I drilled the bottom of the tank and made the overflow like the pictures.

I then painted it black after scuffing up the surface.


Attachments

  • IMG_0954.jpg
    75.5 KB · Views: 0
  • IMG_0956.jpg
    44.4 KB · Views: 0

Mebeknob

New member

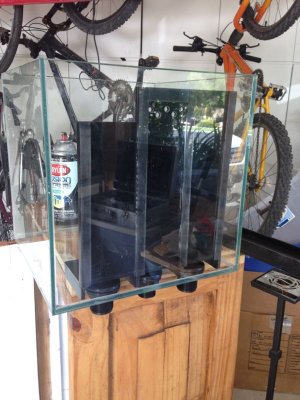

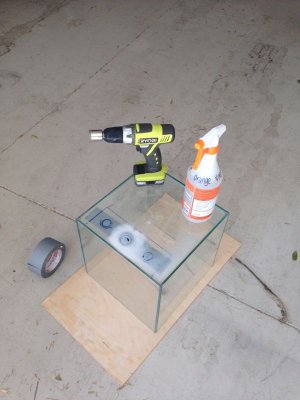

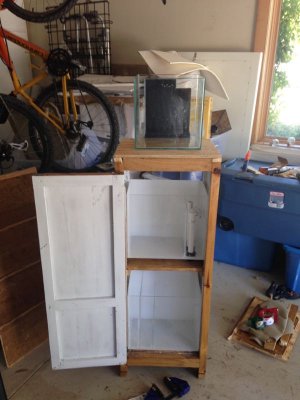

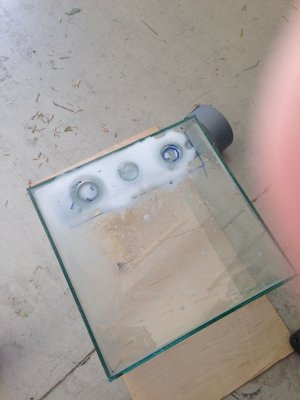

I then drilled the tank.

Installed the bulk heads and siliconed the overflow into the tank.

Then fit the sumps into the tanks with a bit of foam under each.


Attachments

  • IMG_0979.jpg
    52 KB · Views: 0
  • IMG_0981.jpg
    48.9 KB · Views: 0
  • IMG_0984.jpg
    56 KB · Views: 0
  • IMG_0986.jpg
    78.9 KB · Views: 0
  • IMG_0987.jpg
    59.9 KB · Views: 0

Mebeknob

New member

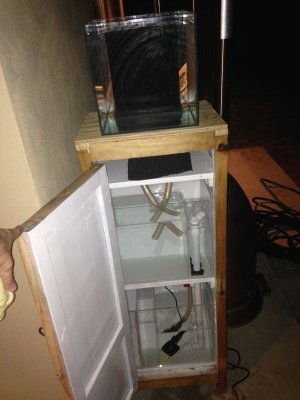

I then did a two week water test.

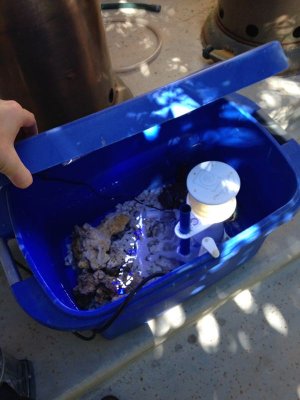

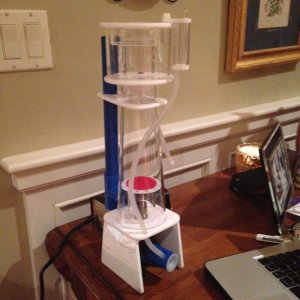

Got my SC Aquariums skimmer and got my sump rock cycling in a tub.

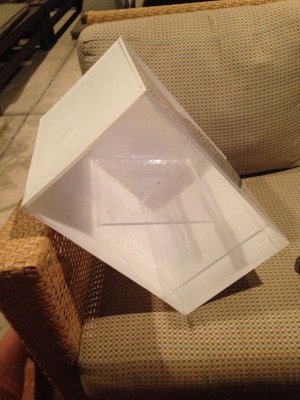

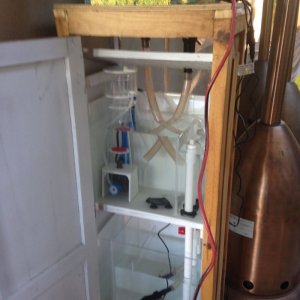

I had to modify the sump to fit the return pump and simply cut out a baffle and installed it on a diagonal.


Attachments

  • IMG_1139.jpg
    53.6 KB · Views: 0
  • IMG_1148.jpg
    79.7 KB · Views: 0
  • IMG_1151.jpg
    63.6 KB · Views: 0
  • IMG_1174.jpg
    72 KB · Views: 0
  • IMG_1303.jpg
    58.4 KB · Views: 0

Mebeknob

New member

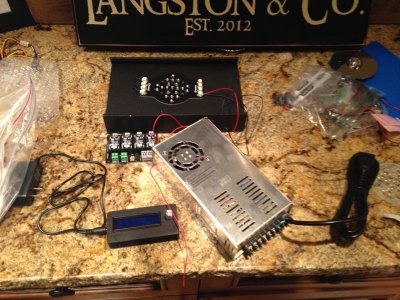

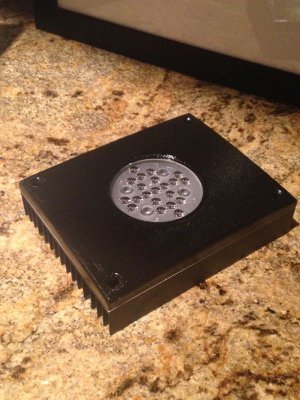

Started to build LED kit

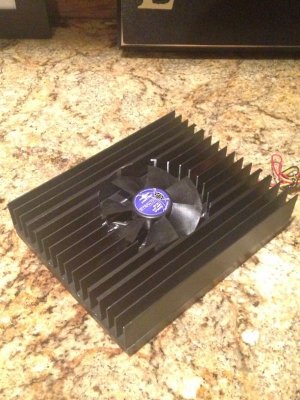

Milled Rapid led Heatsink for fit fan

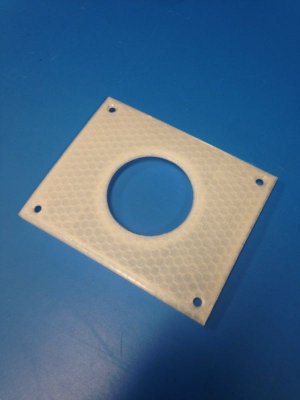

3D printed faceplate and painted it black.

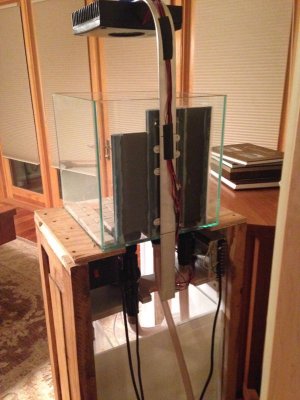

Rigged it up to the tank.


Attachments

  • IMG_1307.jpg
    100.2 KB · Views: 0
  • IMG_1344.jpg
    35.5 KB · Views: 0
  • IMG_1379.jpg
    87.2 KB · Views: 0
  • IMG_1380.jpg
    86.3 KB · Views: 0
  • IMG_1418.jpg
    69.7 KB · Views: 0

Mebeknob

New member

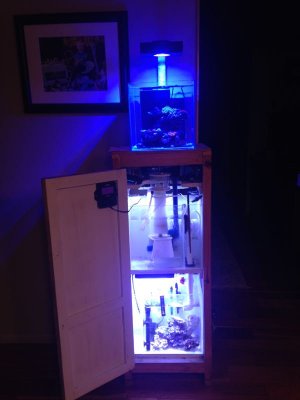

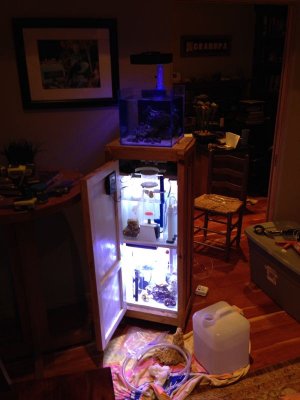

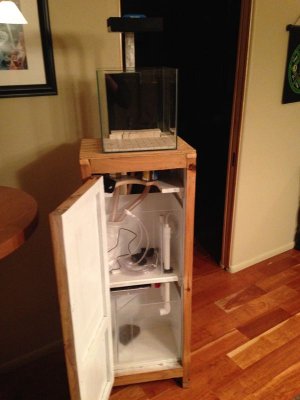

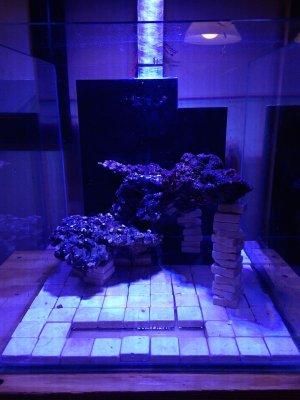

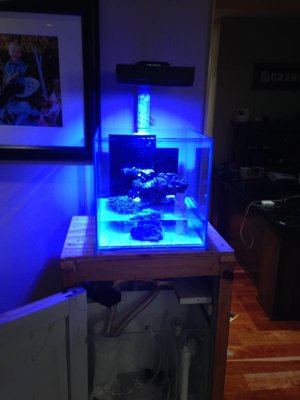

Added LR to sump and got the rocks cape working.

Installed RKE

Got the thing sorted.


Attachments

  • IMG_1422.jpg
    51.3 KB · Views: 0
  • IMG_1500.jpg
    63.4 KB · Views: 0
  • IMG_1501.jpg
    47.2 KB · Views: 0
  • IMG_1523.jpg
    55.5 KB · Views: 0
  • IMG_1657.jpg
    41.8 KB · Views: 0

Mebeknob

New member

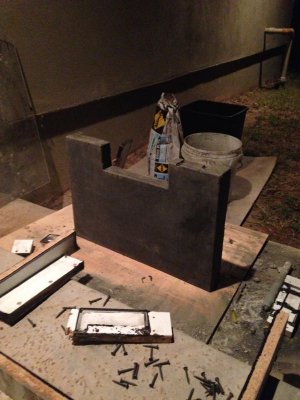

Built a concrete countertop for under the tank

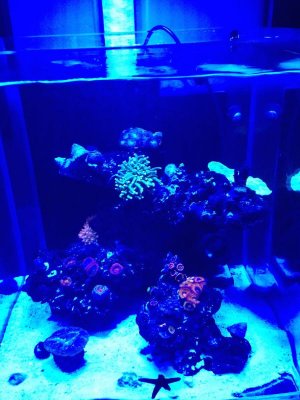

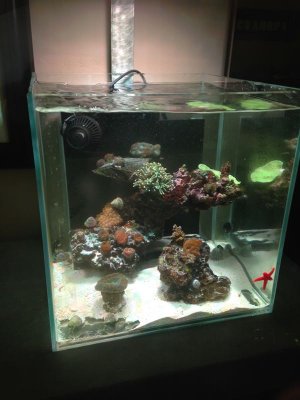

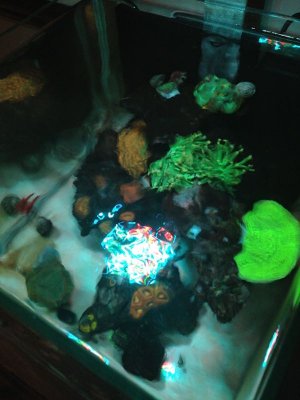

Just a couple more recent pics


Attachments

  • IMG_1742.jpg
    70 KB · Views: 0
  • IMG_1746.jpg
    74.6 KB · Views: 0
  • IMG_1715.jpg
    57.5 KB · Views: 0
  • IMG_1753.jpg
    60.5 KB · Views: 0
