Finally starting my new build
- Thread starter mat366
- Start date
SkiFletch
New member
Obviously it's a basement sump so noise isn't a problem. Are you planning on using filter socks for the drain? Something to counter splash would be good.
What's feeeding the AquaC? Can't reall tell there.
And the side and bottom drains on the refugium? Is one a backup?

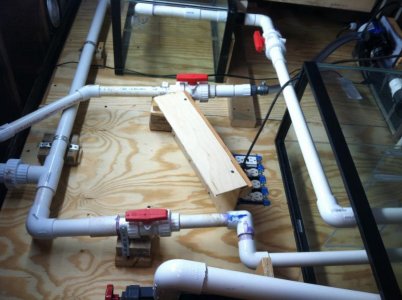

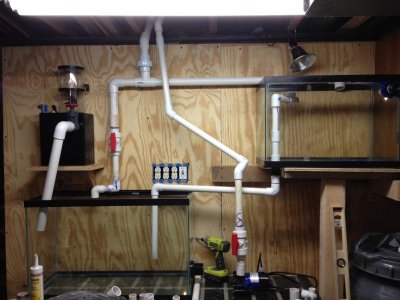

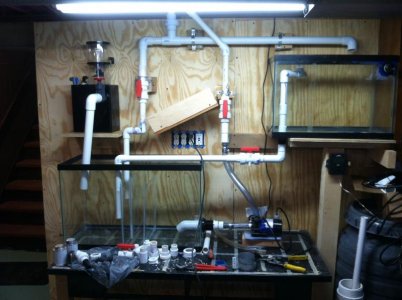

Some suggestions... Having only one drain line from the main tank is ASKING for trouble. Not IF, but WHEN a snail gets in there and clogs one up, you'll have a wet floor and a dry pump. Also, it's a good idea to strain relieve your pipes so you don't put too much stress on the glass in your display tank. Maybe you've done some elsewhere, but I don't see it in the pic. And finally, the electrical direclty under the drain scares me a bit. Especially with the union right there.
What's feeeding the AquaC? Can't reall tell there.
And the side and bottom drains on the refugium? Is one a backup?
Some suggestions... Having only one drain line from the main tank is ASKING for trouble. Not IF, but WHEN a snail gets in there and clogs one up, you'll have a wet floor and a dry pump. Also, it's a good idea to strain relieve your pipes so you don't put too much stress on the glass in your display tank. Maybe you've done some elsewhere, but I don't see it in the pic. And finally, the electrical direclty under the drain scares me a bit. Especially with the union right there.
reefboarder
Intelligent Donkey
You may want to put a valve on the drain feeding the refugium, just in case you want to slow that down. I really like the gravity set up for it otherwise. And like skifletch said having the electricity directly under a union might not work out so well.

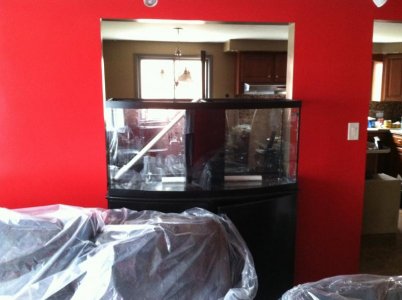

Yes I was just thinking of getting one of the hanging filter socks. And have to take a pump off my other system to feed the skimmer so haven't gotten to that yet. And yes I figured the outlets where a bad location after I couldnt put the tank in my first location so I was thinking installing one of the plastic cover like they use on outdoor plugs. And I was maybe thinking a screen on the drain but not sure if a large enough snail would get in the over flow bc I'm doing a center over flow bc the tank spear tea the kitchen from the living room(after I get home will try and figure out how to add more picuters at one time). And after I glue all the PVC I was going to tie the pipes to the wall.
Attachments
andrew2010
New member
Fwiw I love my Aqua c .. Even with a outdoor cover on the outlets, You might want to put a piece of epdm attached to the wall higher than your union and extending down to your sump. Kind of like a flap just for added security .
AmherstReef
New member
Isn't this common though, I have a corner overflow in my 90 which only has a single drain.
blanden.adam
Team RC
Please forgive my ignorance, but could you comment on what you mean by "strain relieving" pipes and how it helps?
SkiFletch
New member

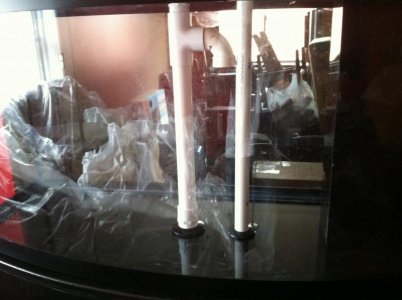

Is that a pre-fab drain setup in the display or did you do that yourself? FWIW I'm never comfortable with cutting the bottom glass since I'm always terrified of what happens when the Oring seal at the bottom leaks. Whole tank drains then, where if you have a side drain, just a few inches are lost. But, since you've got it, does the overflow box there have holes in the bottom, or just teeth at the top? And is the top open? If you close off the top so snails can't get in there, you've at least mitigated some of the problem. I would suggest developing some sort of removable screen mesh, or black egg crate, or something like that. Anything that will allow you to clean the teeth on the overflow box but keeps bigger things out.
SkiFletch
New member
Adam, I mean tying them to the wall with pipe standoffs, clips, strapping, something holding the pipes to rigid structure. You don't want to be messing around with the tank/plumbing/etc, bump one of the pipes sideways, put a lot of sideways torque on the bulkhead fitting in the tank, and crack your bottom glass... This is true with side-drain systems too, even more so because there the weight of the pipes is always torqueing the bulkheads.
I may sound like a worry-wort on this one, but it's 72 gallons of seawater you don't want on your livingroom/kitchen floor from something as silly as slipping while working in the basement...
I may sound like a worry-wort on this one, but it's 72 gallons of seawater you don't want on your livingroom/kitchen floor from something as silly as slipping while working in the basement...

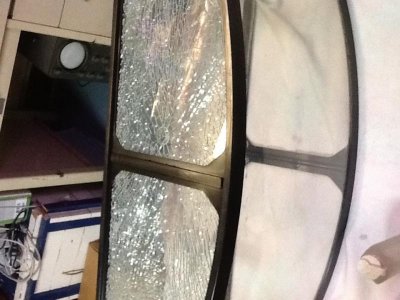

Did the drain myself, the first bottom was tempers so I had a new piece install and water tested it for a week and not one drip. And just teeth at the top but I like the egg crate idea I was thinking screen just to also stop fish jumping in ther also
Attachments
Ok yea that might be another option too. The best part of those plugs is there on one breaker

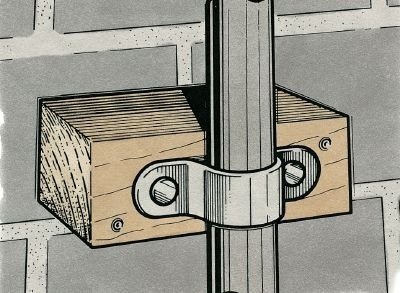

I was thinking of securing them like this
Attachments
sean obergfell
New member
Basement sump.....go with a much bigger sump....you will be glad in the long run...rubbermaid tub.
Why do you feel you need baffles?
they are not needed
Just some thoughts....
Why do you feel you need baffles?
they are not needed
Just some thoughts....
I would like to go bigger but right going with that and I guess not really baffles but a bubble trap just installing 3 piece of acrylic
magdelan
Fish?
What is the side drain on the fuge for? Also, why does it appear that you have a stand pipe in there with a 90 degree elbow with a horizontal run capped with a 90 degree elbow going vertical? Why not eliminate the horizontal run and just leave it as a vertical stand pipe? If anything, cap the stand pipe with (not sure of the name) a coupling that goes from one inch to two inches for better surface skimming.
