LED Dimmer Controller with WebUI based on Arduino Yun

[mizyeh]

Made my led dimmer controller by arduino yun + MW-SP200 + LDD-350H/LDD-500H with WebUI to set lighting schedule profile through browser.

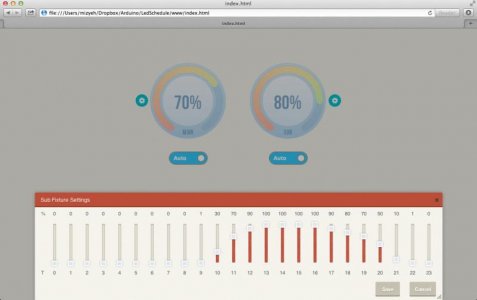

Controller Web UI 1


Controller Web UI 2


Video of Web UI

Video of Demo PWM signal to control intensity of led



[gernby]

Any updates on this? I'm about to start converting my system over to an LDD based setup with a YUN controller.
