4 Jebao Powerheads - Master/Slave Mode

griss

RC Mod
Staff member
RC Mod
I’m currently running 2 Jebao’s in master/slave mode and I’m happy with the functionality. But, when I finally get around to my upgrade, I was thinking about running 4 Jebao’s. Can you run more than 2 in master/slave mode?

If so, how does it work? With 2 they alternate, what would 4 do? I’ve searched and searched and see others have asked the same question but, I’ve not seen an answer anywhere on the web.

The instructions say you can but there is one thing missing. That is the ability to tell the 3rd and 4th pumps to run in sync with the master or opposite to it.
That would only matter in C mode where one runs and the other idles. It seems 1 would run and 3 would idle and then switch to 3 running and 1 idle. There is no button or setting to change this or set it. I have a master slave setup running in the fish room. Setting the pump mode on the master sets it on the slave. I do not see any way to override it and set 2 different relationships in one group.
Unless some new setting appears in a group bigger than 2. It doesnt say anywhere that will happen thgough.

I would attempt to use 2 master/slave groups If I wanted something other than all of them pulsing together in time with each other.

I will try this on mine tonight. I have those four running. I will try to put two in Master and the other two in Slave and see if they sync to each other.

I will try this on mine tonight. I have those four running. I will try to put two in Master and the other two in Slave and see if they sync to each other.
Thanks, appreciate it. I would try it with my existing Jebaos and my new SOW-20s but, I don't have room for the SOW-20s in my 40 and I think those would be too much flow (sandstorm).

I am not sure what you mean by separate. I am saying for 4 pumps in a tank use 2 masters each with a slave.
You have a master on each end with it's slave on the other end.
Or each end is a master/slave set.
You could just buy Ecotech pumps that will do exactly what you want. They just cost 8 to 10 times as much.

A small warning. When you get wave trains from 2 sets of pumps going in one tank they will be of slightly different frequencies.
(gee Ned WTH does that mean)
So each set of pumps puts out pulses. One set is slightly faster because you are setting them with a knob. So over time the pulses from each set of pumps in the tank will go in and out of phase.
When they go into phase the pulses add. May make big waves
When they go out they subtract. Looks like pumps are too low
And the point of all that is you can get standing waves that come and go out of nowhere. Or a few unusual waves now and then. These sometimes are much bigger than you want and put water on the floor.

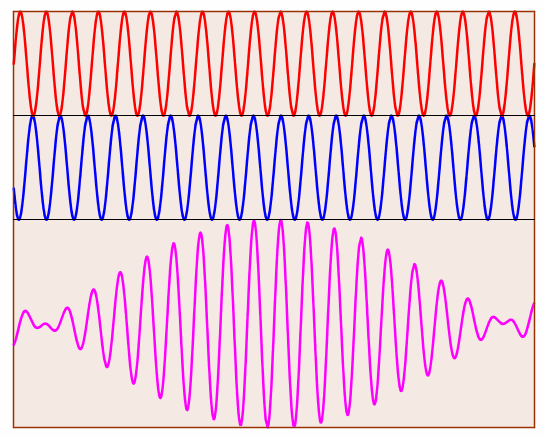

Like this.


and this may not happen. It depends on how much the pulses are damped by the aquascape, how big the pumps are in relation to the tank and the frequency at which standing waves will form in the tank.
Mostly that is just an interesting possibility. If the 2 pump groups are set to almost the same pulse speed it happens very slowly. There are 4 different pulse frequencies in the graph. From pump group 1, pump group 2, the resultant addition shown as the fine waves in pink and the overall shape of the pink is the 4th. It's only messy if one of the pink ones is the same as needed for a standing wave in the tank. A magically appearing wave that sloshes over the side of the tank.

Gee I am less than perfect. Typed all this last night but never hit post.

You are doing a 75? I have 2 SOW-30s in the one in the fish room. They seem sufficient.

I'm having trouble putting my thoughts into words. I appreciate your patience. This will be for when I upgrade to the 120.

My understanding of the Jebaos (which could be incorrect) is they communicate via RF frequency. What I'm trying to understand is, if I decide to use 4 pumps, can I have two masters and two slaves?

My assumption is they are all on the same frequency programmed from the factory. If that is the case is that having 4 on the same tank (close proximity to each other), only one could be the master and the other three slaves.

I think if you pair them while the other master is unplugged, then you can turn them all on and be okay.
