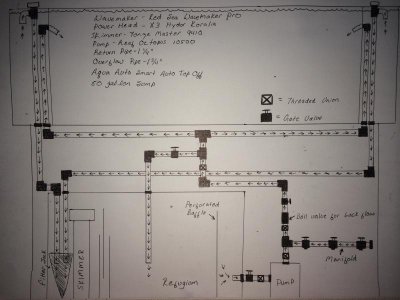

Hello, this is most first post. I'm new to the hobby and I've learned a lot on this board so thank you. I have a 60g rimless cube right now and I'm adding a 220g for my second tank. It will be a passive reef tank with mostly LPS/Soft corals and mixed fish. Please look at my design and give me pointers where needed. The baffles are too high in the drawing but I didn't want to redraw it. The ball valve will also be moved from where I have it to directly under the T split for the return. I will have an emergency overflow towards the top of the sump to a reservoir in the basement, that way I can use the full size of the sump. I haven't measured for the size of the sump yet, as I am not in town to do so. But it will be as large as I can fit under the tank. I would love some constructive criticism. Thanks.
