Glass sump - edge polish needed?
- Thread starter thedoogan
- Start date
r-balljunkie
Registered Reefer
bevel or polish?
if it doesnt have trim, id bevel to get rid of the sharp edges.
if it doesnt have trim, id bevel to get rid of the sharp edges.
r-balljunkie
Registered Reefer
meh, either one. long as it doesnt cut you. aesthetics end of the day.
funkyfish77
New member
i use 1000 grit wet\dry paper to knock the sharp edge off . getting cut by your sump while cleaning blows hard .
hllywd
Premier World Traveler
yes
ScootsComputes
New member
I didnt polish my 1/4 inch. My excuse was I'd be more careful in there. It got me yesterday. Not bad but I'd better b more careful.
Lionfish666
New member
I got bevelled, looks great but completely uncalled for.
If your not going to sand the edges yourself just get them to polish it? Cut glass is sharp!
If your not going to sand the edges yourself just get them to polish it? Cut glass is sharp!
NanoReefWanabe
Active member
i thinking these people are confusing polished edges with ground edges...completely different things.
ground edges are basically run through a belt sander to remove the razor sharp edges...
polished edges are finished to a smooth as glass finish, generally the edges of polished glass are beveled as well...beveled edges are ground down to 45* and then polished as smooth as glass can be...
beveled and polished edges are considerably less prone to breaking since all the micro fissures and chips have been removed and polished smooth...there is obviously 0 chance of being cut by beveled polished glass as well...
the same cannot be said for ground glass edges, as the majority of the fissures and chips remain on the edges of the glass (which conveniently enough is also the weakest part of the panel) only thing usually removed by grinding the edges is the burr created when the glass is snapped to size....
personally i would not build a tank for any purpose without having the edges beveled and polished, it is safer, stronger and looks 100X better...
ground edges are basically run through a belt sander to remove the razor sharp edges...
polished edges are finished to a smooth as glass finish, generally the edges of polished glass are beveled as well...beveled edges are ground down to 45* and then polished as smooth as glass can be...
beveled and polished edges are considerably less prone to breaking since all the micro fissures and chips have been removed and polished smooth...there is obviously 0 chance of being cut by beveled polished glass as well...
the same cannot be said for ground glass edges, as the majority of the fissures and chips remain on the edges of the glass (which conveniently enough is also the weakest part of the panel) only thing usually removed by grinding the edges is the burr created when the glass is snapped to size....
personally i would not build a tank for any purpose without having the edges beveled and polished, it is safer, stronger and looks 100X better...
Lionfish666
New member
No one here mentioned ground edges so I'm not sure how anyone is confusing them for something else. If you don't get polished edges or sand them yourself will eventually cut yourself, I've read enough peoples journals to learn this.
If he is going to charge an extra $25 for piece for the polish how much is the bevel? I got my glass, all beveled for $300, was about 10 pieces, cut from 3 full sheets in 5mm.
If he is going to charge an extra $25 for piece for the polish how much is the bevel? I got my glass, all beveled for $300, was about 10 pieces, cut from 3 full sheets in 5mm.
r-balljunkie
Registered Reefer
you need to further define "build".
if you mean assembling the panes together to form the sump, big no no.
to add baffles once the tank is completed, then yes.
Momentum RTV type adhesive is for constructing tanks....could also use it to add baffles, but in all reality you dont need the strenth if offers to keep the baffles in place, but wouldnt hurt end of the day.
NanoReefWanabe
Active member
"meh, either one. long as it doesnt cut you. aesthetics end of the day."
"i use 1000 grit wet\dry paper to knock the sharp edge off . getting cut by your sump while cleaning blows hard . "
both of those posts are referring to grinding the sharp edge off the glass, nothing to do with polishing or beveling
even your post here refers to grinding/ only sanding the edges off...
"If your not going to sand the edges yourself just get them to polish it? Cut glass is sharp! "
depending on the size of the glass (thickness) i am surprised it is only 25/piece extra as i have had quotes for as much as 7$/ft to bevel and polish
thedoogan
New member
I don't know if I'm willing to pay $100+ extra to polish the glass for a 21" x 21" sump. I've cut glass myself for overflows and sumps for a coral QT and cut myself doing so. Not a big deal for me, just super glue those shut

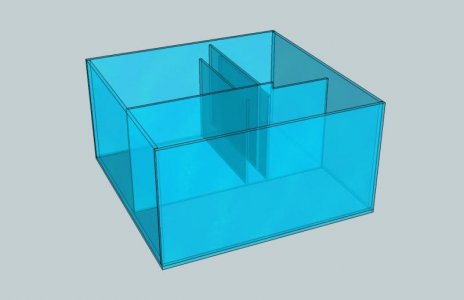

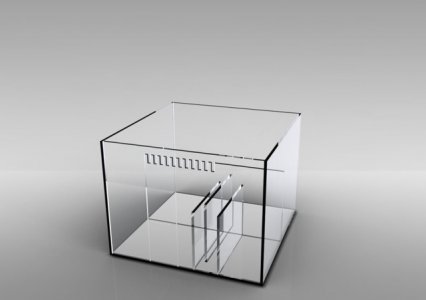

That was my plan, to construct the tank first then add the baffles. I don't have the design available right now but it's similar to this. Instead of teeth on the refugiums overflow it's an L shaped notch.
That was my plan, to construct the tank first then add the baffles. I don't have the design available right now but it's similar to this. Instead of teeth on the refugiums overflow it's an L shaped notch.
thedoogan
New member
He did not mention bevel in the quote, just arriss and polish.
NanoReefWanabe
Active member
the sharp notch in the glass will not hold up to any sort of abuse, be very careful in that area as it is a definite fracture point for the glass...really should have a much larger radius on the corner in the notch, something more along the lines of equivalent to the depth of the notch...
NanoReefWanabe
Active member
arriss is the same thing as a beveled/ truncated corners/edges...arriss and polish is the finish you want on the edges...
