Marine Source / Reef Star DSP-1 Dosing Pump help

[TheCoralGarage]

Hey all,
I'm hoping someone can help, I have this dosing pump but can't figure out how to set the number of daily doses. It seems it's the third column in the display.

Buttons:
A: head number, 3-11 depending on modules
B: Set seconds of each dose, numbers from 0-99
C: Third column, numbers from 1-99 ?????
D: Prime head, Enter, Esc

Display columns:
1st: Head number
2nd: Top shows setting in seconds, bottom shows the number of seconds for the current dose
3rd: I think it's how often in minutes, top number shows the setting, bottom number shows a countdown of how many left. ?????

I messaged the vendor but never heard back, any help is appreciated!

Peter
Murrieta CA



[Reefing102]

Dang there certainly isn’t a lot out there for reefstar. I don’t know how reliable the information is but I found this:

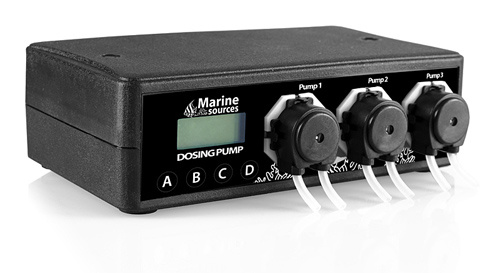

Marine Sources or ReefStar DSP-1 doser instructions

Does anyone happen to have one of these and know how to program them? They're very similar to the Bubble Magus or TMC but not the same.

www.pnwmas.org



[TheCoralGarage]

Hahahaha, Thanx for the reply, that was also me years ago asking the same question.



[TheCoralGarage]

If anyone else ever owns one and can't figure it out, I finally found the info I was looking for. The second column is seconds/milliliters for each dose, the 3rd column is hours between doses. So the top number is the setting in hours, and the bottom number is the hours till the next dose. If you want 4 doses a day, set it to "6".

From: Titration pump and supplies supporting DSP-1 three-channel titration Pump host

Working mode: interval cycles after dropping, dropping a single set flow rate and intervals, the product will be in accordance with the intervals set number of hours of intermittent dripping. Single drops flow 00-99ml adjustable, adjustable time interval 00-99 hours, and the other with automatic anti-interference mode, the same time there are two or more head needs dropping, the pump head is automatically converted to the anti-interference mode, the pump head will be different queuing drip drip after the previous head, a head after waiting two minutes after drip, drip while avoiding different elements may produce a variety of physical or chemical reactions and interference .
