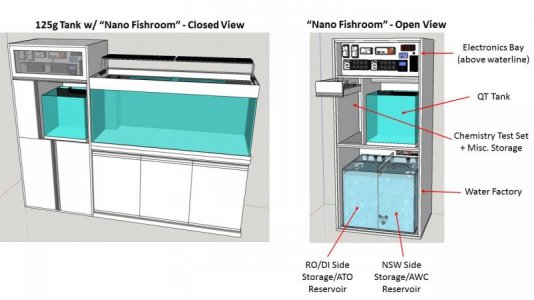

I live in South Korea where space is at a premium. A dedicated fish room is out of the question. So, I have been working on what I have dubbed: my "œnano fish room".

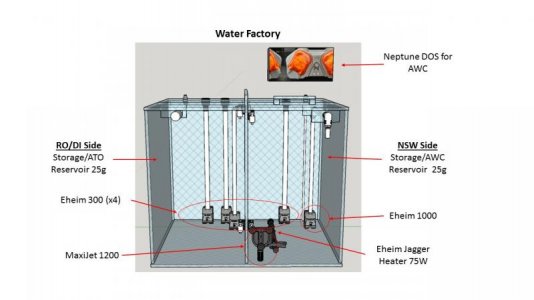

The main goal is to include a water factory and a place to mount my electronics.
Looking for some feedback to see what I have overlooked before I make a fairly substantial order for the electronic guts of this contraption.

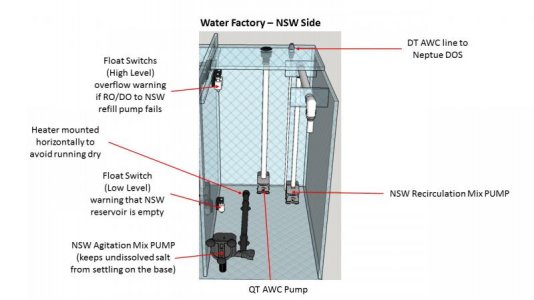

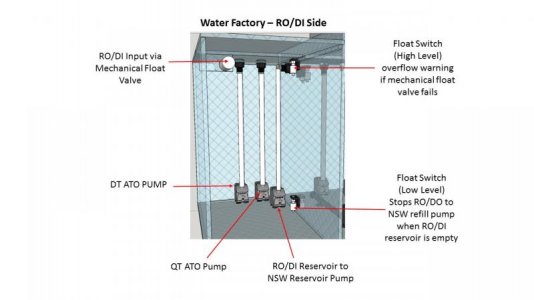

The ATO and AWC functions will be controlled by an APEX controller, a harem of pumps, and a gaggle of float switches located in the DT, QT, and in the water factory itself.

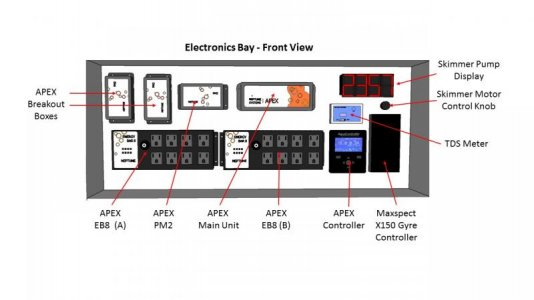

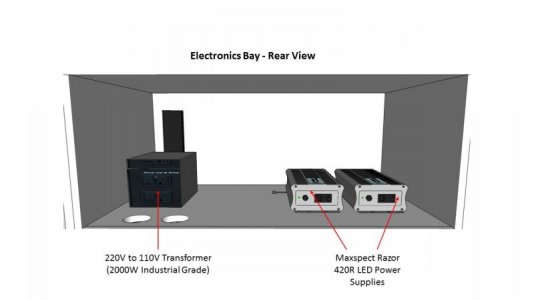

The electrical rack equipment dimensions are educated guesses so I have not designed in any cable holes yet. Waiting until I receive all the equipment to shore up the dimension requirements.

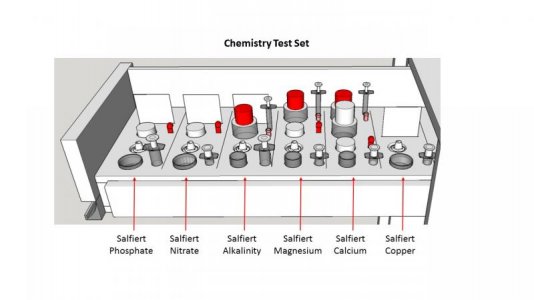

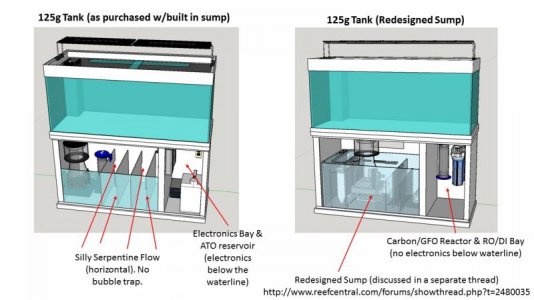

While I'm at it, I'm redesigning my DT sump and adding a chemistry testing compartment. I've already received some feedback on the sump and implemented those suggestions, but any additional feedback would be awesome as well. I'm gutting close to starting the build.
http://www.reefcentral.com/forums/showthread.php?t=2480035
