Thru-wall tank pics wanted
- Thread starter ynot65
- Start date
On-going three-year fishroom build project.
Sound proof drywall around the tank and in the equipment room to minimize sounds from the equipment room. One inch clearance for the tank and stand.
Tank and stand finally in place
Framing in the tank commences
Framing and wainscoting still need painting
Equipment room: Platform to access the top of the tank. The floor of the platform is hinged for easier access to the sump and filtration under the platform.
Someday we will have our system set up and running.
Sound proof drywall around the tank and in the equipment room to minimize sounds from the equipment room. One inch clearance for the tank and stand.
Tank and stand finally in place
Framing in the tank commences
Framing and wainscoting still need painting
Equipment room: Platform to access the top of the tank. The floor of the platform is hinged for easier access to the sump and filtration under the platform.
Someday we will have our system set up and running.
Assassynation
New member
WOW! What a project pacu mom! Where's the build thread for that project?
ynot65
New member
Thanks all,
Pacu mom, wow !! Beautiful I can't wait to see it finished. Beautiful home.
Mnavic, at night when you have the lights off in the kitchen do you still see through the tank or does it appear black ?
7808, nothing wrong there that's a great use of an otherwise dead spot, good plan. Do you plan on doing a refugium under it ?
Pacu mom, wow !! Beautiful I can't wait to see it finished. Beautiful home.
Mnavic, at night when you have the lights off in the kitchen do you still see through the tank or does it appear black ?
7808, nothing wrong there that's a great use of an otherwise dead spot, good plan. Do you plan on doing a refugium under it ?
7808
New member
this tank was up and running for a while, then taken down, now back up recently, there is just a baffled 20L sump under the tank with heater pumps and skimmer
i use only return jets and outside-plumbed looped-pump for water movement, i dont like the way powerheads look in tanks, and the through the glass drive ones are spendy
also i added a heavy duty chain and turnbuckles to tension on each side that goes from the side of the back of the stand diagnal up to the studs because i didnt %100 trust the stand not to collapse backwards some day lol (and when i asked on here i was told not to build a stand like that, it would probably fail)
i use only return jets and outside-plumbed looped-pump for water movement, i dont like the way powerheads look in tanks, and the through the glass drive ones are spendy
also i added a heavy duty chain and turnbuckles to tension on each side that goes from the side of the back of the stand diagnal up to the studs because i didnt %100 trust the stand not to collapse backwards some day lol (and when i asked on here i was told not to build a stand like that, it would probably fail)
Last edited:
ynot65
New member

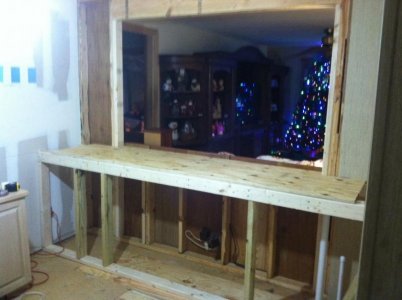

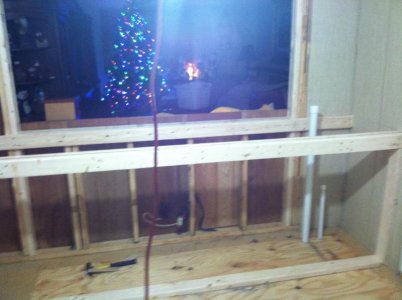

That stand will be fine it's a carpentry trick called "cantalever" all the load is back on the front wall. People dot realize that you see a lot of park benches and octagonal pick- nick tables done that way and people sit on them every day. Good luck with it and post some finish pics. Here's a couple of mine
Attachments
mnavick
Member
Yes.
Even in the depths of night you can still see through it.
Indymann99
New member
Here's my 150g. Can look through our front door, through tank and into kitchen
+1 very well done !! :beer:
ravi197699
Member
Sethjamto
New member
I agree! That's a beautiful setup there!!
ravi197699
Member
trinidiver
New member
Nice builds, Will post some shots later
