cool. havn't heard of many people changing thier closed loop time scheduals. most keep them going 24/7 nice idea to get differing flows

Lunchbucket



[weatherson]

Lunchbucket: When I originally designed it, I did so knowing I wanted to simulated a tidal, back and forth current. This is why I built in two, opposing systems that also pull from opposite ends to create a strong cross flow.

Joseph



[Lunchbucket]

sweet idea man. i'll have to keep that in mind. hmm manybe when i move i'll try that. i am going to have an acrylic 58gal built and drill it for a closed loop instead of using my over the tank one on my glass. guess i could use my iwaki 55rlt on my OM 4way adn add that panworld pump i have laying around forever

Lunchbucket



[weatherson]

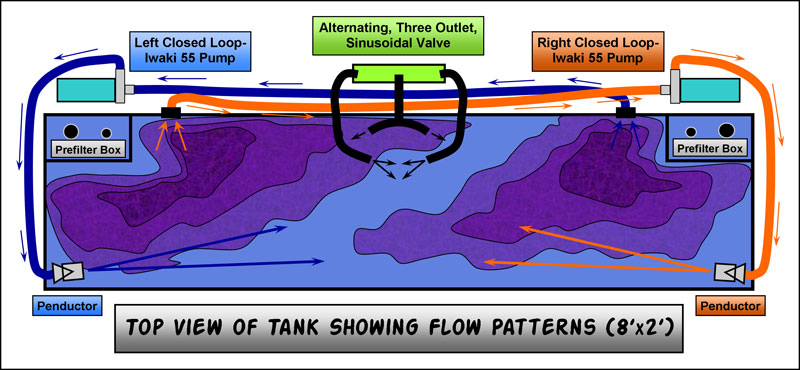

Since I haven't done a pretty diagram lately...

Joseph



[jarhed]

Simply beautiful!

BTW, what is your lighting schedule? I know you must have posted it but .... umm.... this thread.....

I'm thinking going reverse schedule so as not to pay Edison Electric too much money. If I can avoid the peak hours as much as possible, I'll (and my wallet) would be much much happier!

I think I'll use my sump return, which comes up on each side of the center overflow, like your middle sinusoidal valve, but unfortunately they wont alternate.

Without the penductors, were your outputs on the closed loops reaching the far side of the tank? I have two outputs (split) per pump and think I can aim them pretty much any direction I please.



[weatherson]

jarhed: My lighting schedule is based on the AQII's seasonal table. This has the lighting period based on the actual sunrise/sunset and lunar cycle of my location. As far as how the lights fire and go out, the first VHO set (440-watts) which is controlled by a dimmer, come on first and gradually brighten over a one hour duration. Once these are at full power, the second set of VHO's (also 440-watts) are fired. Thirty minutes later, the middle 250-watt MH bulb fires followed by the two flanking 250's thirty minutes after. Finally, the last two, end-of-tank 250's fire another thirty minutes later. At sunset, the process is reversed ending with the last VHO set dimming down to off.

Here's the photos depicting the closed loop current reach first with the output split to two 3/4" Lockline nozzles, then with just 1" pipe and finally with the Penductors. All three versions were driven with the Iwaki 55 pump which I injected air into its inlet for this visualization.

Joseph



[jarhed]

Beautiful!! I may just use Penductors on my four outlets then in order to reach the far side of the tank from the pump that is active.

AQII does all that with the lighting? Thats pretty awesome!



[weatherson]

AQII does all that with the lighting? Thats pretty awesome!

Well, it does all that except the dimming function of the VHO. That is done by a dimming module attachment (old Niche Engineering unit) for the IC 660 E-ballast. Everything else is handled by the AQII though and yes, it is awesome.

Joseph



[melev]

Never mind.. you just answered it. Where did you get the module?



[weatherson]

Marc: I purchased it from the original designer, Niche Engineering, many years ago. They are now available by Solar from several sites. Here's Champion's...

Solar 750

Joseph



[melev]

Thanks. I don't believe I've ever heard of anyone dimming their VHOs before. And I love the new look of their site.



[elephen]

Are those penductors DIY or did you buy them somewhere?



[weatherson]

They're from KTH Sales.

Joseph



[RGibson]

Joseph MRC has the penductors.



[Lunchbucket]

well good lord you are just full of information!! thanks for the diagram of the flow and for the links to the dimmer and penducator
