DIY 20L Sump Questions

[Milfordguy]

First section will be 8", refugium will be 7" high, and return will fluctuate with evaporation. The 4th baffle isn't a water height baffle it just makes the water go down, I think you didn't see the gap he has under it crazyeyes.

So this setup above would still work? I can't believe how clueless I am with this. I appreciate all the help from you guys



[blackwagon]

Yes, as long as each section is lower than the last you can have different water hieghts if you want. Do you know what return pump you are running yet?



[Milfordguy]

Yeah I have a tunze 1073.02 for the return.



[MrHarvard]

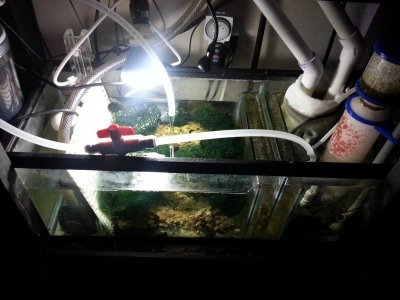

This is how I had my 20L sump set up under my 40g breeder. I only had 3 long baffles at the tank over flow end then a small baffle at the other end with a piece of egg crate up against it. I originally used a piece of filter Floss against the eegg crate till I decided I no longer needed it. This set up worked great for me.



[blackwagon]

This is how the water will sit in the sump you have drawn up.



[Milfordguy]

Thank you, that is what I thought it would look like. Someone on another forum convinced me otherwise, but I think they didn't see the gap under the second to last baffle.



[CrazyEyes]

Yeah I totally missed the gap under the forth baffle. I actually like that alot.



[stacerbean]

How did this turn out? I'm thinking of the same design.
