Opinions on my modified tank

seymour47

Member
I am going to get started in the hobby with an 11+ gallon acrylic tank. I know a lot of people suggest glass because it doesn't scratch as easily, but this is what I have.

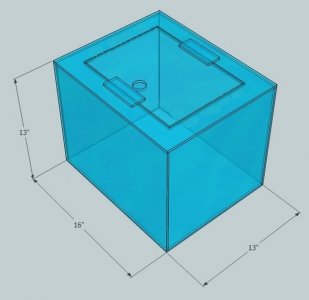

The current tank is in the first picture and my modifications are in the second. The lid is a bit weird, because I am getting this tank as a leftover in a project going on at my workplace.

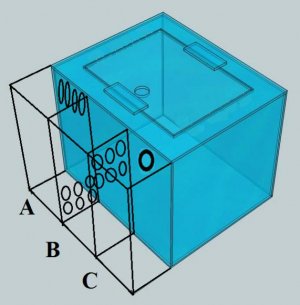

Anyway, I'm planning to modify the back of the tank by adding three 4" deep/13" high compartments. The second picture shows my modification plans. The overflow will be on the left (A). The middle for some live rock rubble and/or chaeto (B). And, the right side for a return pump (C).

I'm also considering potentially adding other treatment material (i.e. carbon, a skimmer, etc.) in the future. Where would you all suggest these various things go? Particularly a skimmer.

Would the skimmer be best in compartment (B) or would it work in (A)? Should I move the liverock/chaeto to a different compartment?

Thanks for your thoughts.


Attachments

  • Tank_Design.jpg
    59.9 KB · Views: 7
  • Modified_Tank_Design.jpg
    35.3 KB · Views: 7
Need more info:
What's the flow path?
Why are there 4 holes in the top of section A?

Sorry. Upper left holes represent the overflow area. Other holes represent where the flow would go. Large hole on the upper right side is the location of the pipe for the return.

Any suggested modifications would be welcome.
