Yes I'm getting closer every day tonight I have some final wiring to do. I ended up using a "evil cluster" style layout with
1 cyan,1 red, 1 cw, 1 nw, 2 blue,1 410uv, 1 430uv, and 6 royals per main cluster 3 total. Then for the 2 filler clusters are 1 ww,1 lime, 1 cw, 1 nw, 2 blue, 2 uv, and 4 royal blues. All with individual dimmable channels.



[Fishinbob]

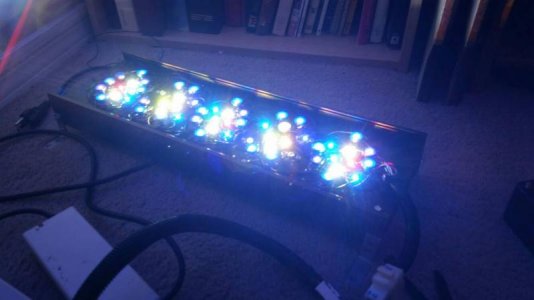

Well finally got everything completed and hung for testing! Total of 120 3watt cree/Phillips leds in an custom cluster. 5 dimmable channels which turned out better than I could have hoped. So far started with 80 degree optics on only the uv and rb stings and no optics on the blues,whites,cyans, limes or greens. Colors blend pretty fantastic.View attachment 342918reds ,ww,cyan, lime, and greens
View attachment 342919cool whites and neutral whites
View attachment 342920410 uv, 430 uv, and some stragglers rb

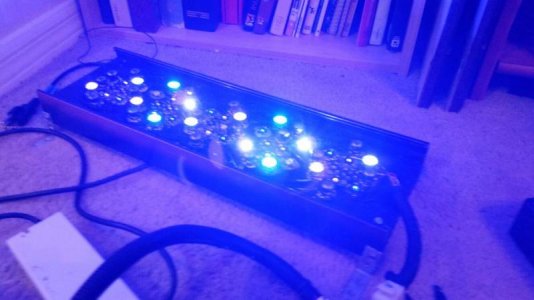

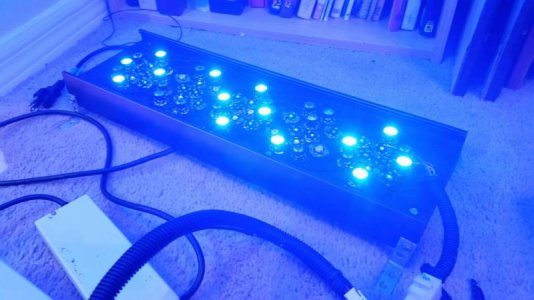

View attachment 342921blue string with a few rbs

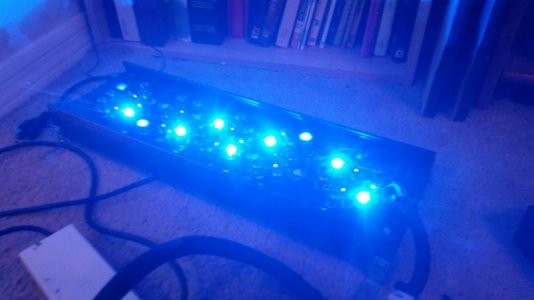

View attachment 342922royal blue string



[Fishinbob]

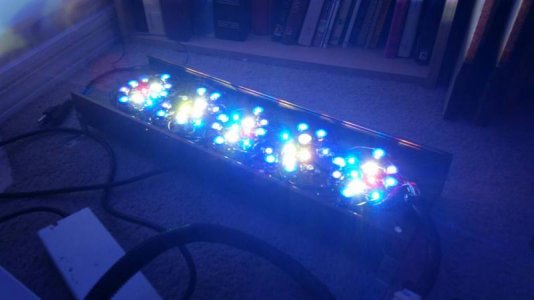

View attachment 342923all on 50%

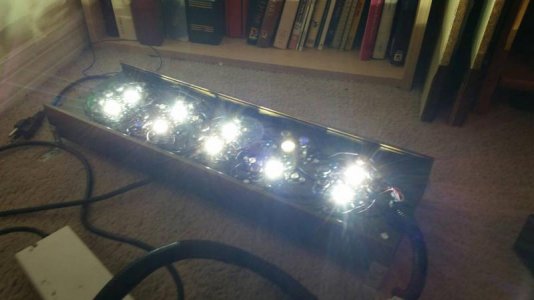

all on 100%

Got late and had to stop playing around will post some tank pics tomorrow.



[Fishinbob]

Finally got the fixtures done! Whew forgot what a battle this was.

Here are some tank shots for each channel.
1: nw and cw


2: uv 410,uv 430, 4 rbs

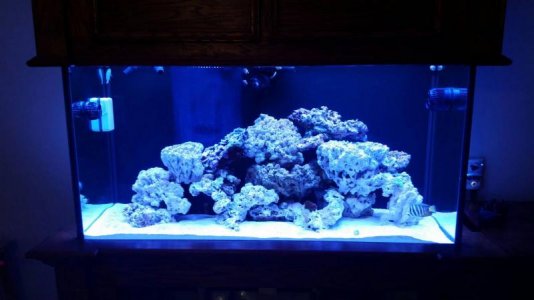

3: blues



[Fishinbob]

4: colored red,ww, greeb,cyan lime


5: royal blue

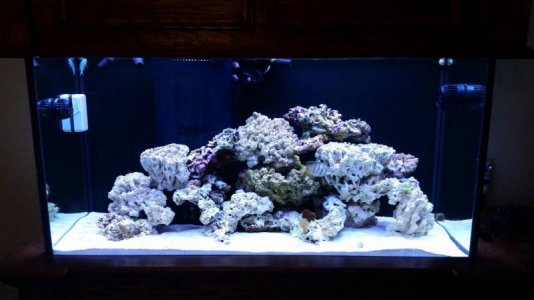

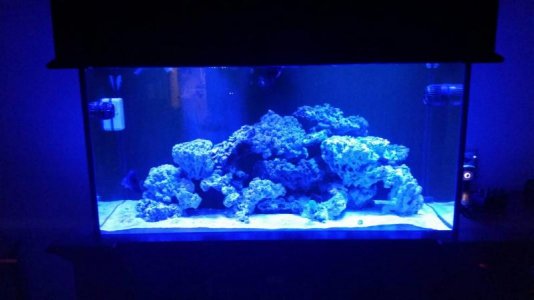

All on 50%



[Fishinbob]

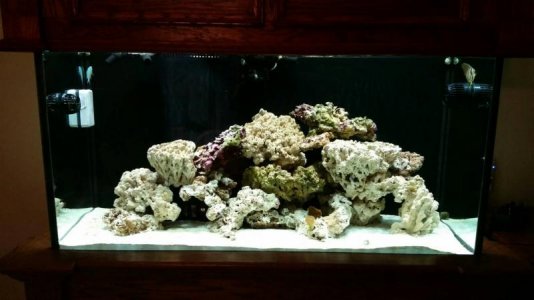

All on 50%

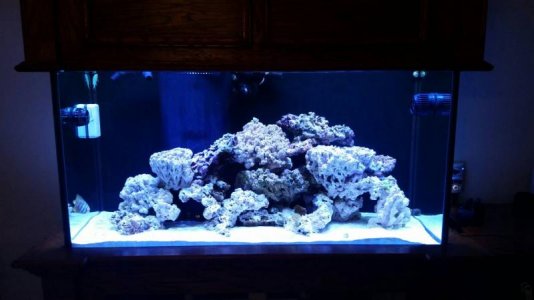

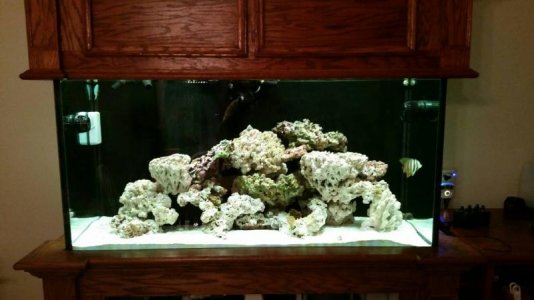

All on 50% and 2 t5 HO 1 actinic plus and 1 blue plus
