Rodi system help

[rum3002576]

Ok I have my system all hooked up. I have a float on the line that clean water comes out after it goes thru the system. I also have a drain line as well. Question is when does water stop coming out? The good water stops due to the float but the bad water just keeps running?



[afish70]

you need an automatic shut off valve which will make it all stop.



[rum3002576]

i have the drain line running into a floor drain, thats were i need a shut off valve?



[Opus123]

http://www.bulkreefsupply.com/instructions/article/Installing-an-auto-shut-off-valve



[jewlz]

http://www.bulkreefsupply.com/instructions/article/Installing-an-auto-shut-off-valve

^ This.... It goes between the inlet water line and the clean outlet water line. Shuts off the supply water when there is back-pressure from the float valve.



[hann1bal]

The waste water can take about 15 minutes to stop. As long as you have two things working you should be fine:

1) Shut off valve (thing with 4 connections)
2) Inline Check valve (mine is built into the BRS system I bought and looks like an elbow)



[hann1bal]

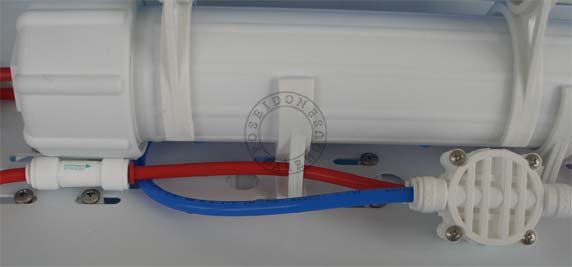

The thing on the left is the check valve - the thing on the right is the shutoff valve. (Hose going in and out of).
