1000 Gallon Rimless Build

Attachments

  • b81ef95e-1.jpg
    48.6 KB · Views: 4
  • b5425fa6-2.jpg
    50.4 KB · Views: 4
Just curious, did you check to make sure the floor can support that load?

Good Point, Yes it sits on an 8" slab. Originally, the space was a garage whose slab was in place for 30 years. When I remodeled the house I poured a new slab over the old. I should be good.

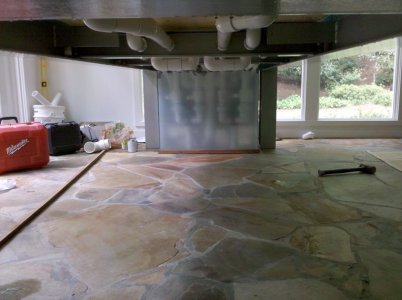

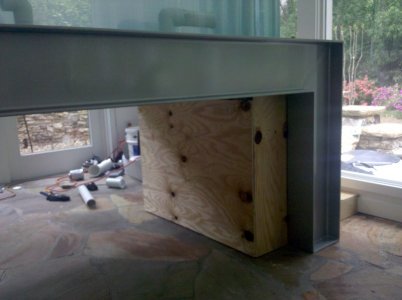

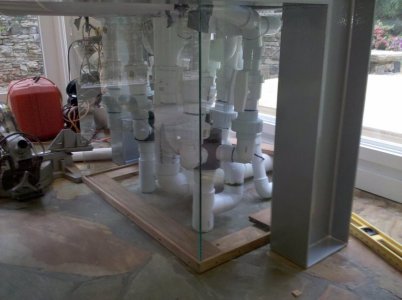

I want a very clean look, so I have to hide the plumbing. Pics 1&2 is of a prototype plywood box I built to get my dimensions and fit right. Once, I had a good Idea of how to make the box work, I started construction on a glass box around the plumbing.

The glass is 1/4". I frosted it with the stuff you by a HD. A plastic film that simulates frosted glass. The wood is left over Brazilian Cherry 6" x 3/4 hardwood flooring I had left over from the house remodel. Great wood. Very hard. Tough on the saws.

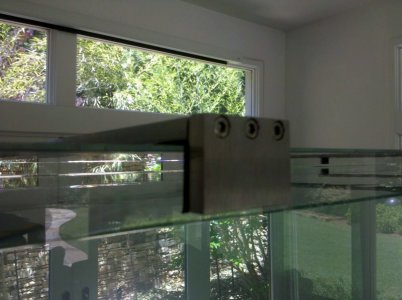

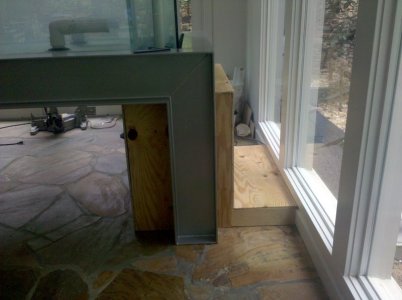

The box is 3 parts. The front glass section , the rear wood cover, and a wood box over the pipes going out to the sump.


Attachments

  • 2010-04-19 15.52.39.jpg
    2010-04-19 15.52.39.jpg
    67.5 KB · Views: 5
  • 2010-04-19 15.54.03.jpg
    2010-04-19 15.54.03.jpg
    73.5 KB · Views: 6
  • 2010-04-26 18.18.29.jpg
    2010-04-26 18.18.29.jpg
    76.3 KB · Views: 2
  • 2010-04-28 17.54.55.jpg
    2010-04-28 17.54.55.jpg
    85 KB · Views: 4

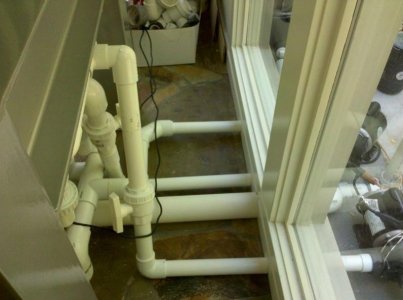

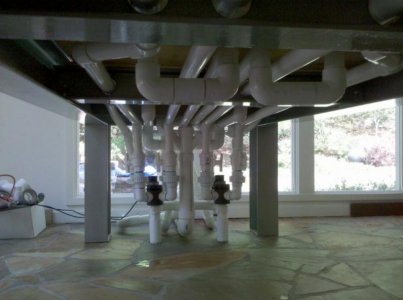

looks good, but i see some issues with union and valve placements. couple of the ball valves are upside down, and i dont see any unions on the pumps outside..?

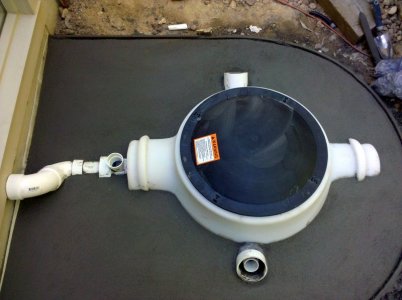

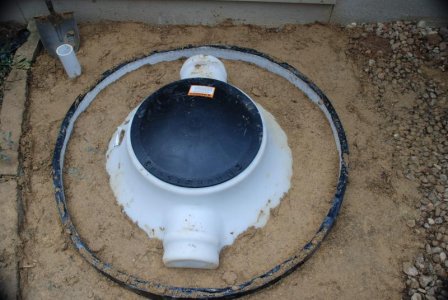

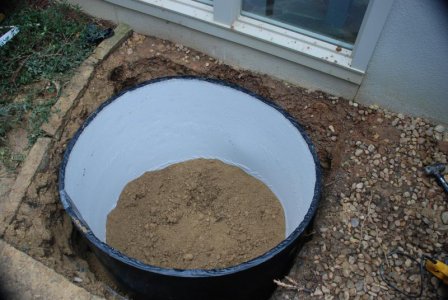

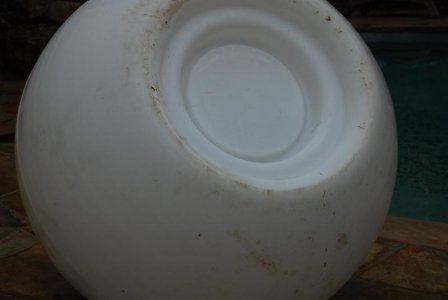

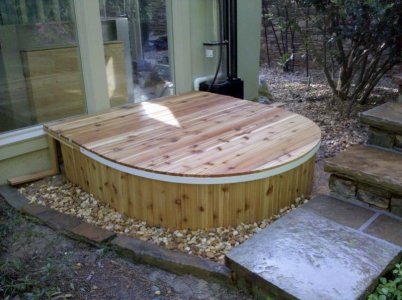

The sump configuration was my most difficult consideration. I spent hours trieing to figure out the best way to handle the sump without compromising my design goal and the safety of the tanks ecosystem. I finally settled on the 325 Norwesco plastic cistern, insulated and buried right outside the room where the tank sits. I like it. The tank is big enough I can get in it if need be. It offers a lot of room for filter socks, a refugium, ATF, and other thing you would put in or connect to your sump. Check out the pics


Attachments

  • DSC_0003.jpg
    21.6 KB · Views: 3
  • sump insulation3.jpg
    sump insulation3.jpg
    78.7 KB · Views: 3
  • sumpburied.jpg
    76.9 KB · Views: 4
The sump configuration was my most difficult consideration. I spent hours trieing to figure out the best way to handle the sump without compromising my design goal and the safety of the tanks ecosystem. I finally settled on the 325 Norwesco plastic cistern, insulated and buried right outside the room where the tank sits. I like it. The tank is big enough I can get in it if need be. It offers a lot of room for filter socks, a refugium, ATF, and other thing you would put in or connect to your sump. Check out the pics

if you planning on running a skimmer, controller, reactors, etc. where will they go?

if you planning on running a skimmer, controller, reactors, etc. where will they go?

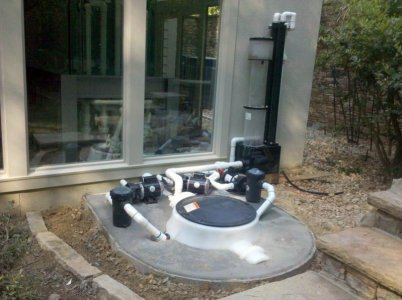

Yes, I'll be running all of those. And yes, it posed a great dilemma. To accommodate the Skimmer I need a separate insulated closet out side next to the sump. On the opposite side of the wall the skimmer is on (inside) I'm going to build a cabinet for reactors, dosing pumps, ect.

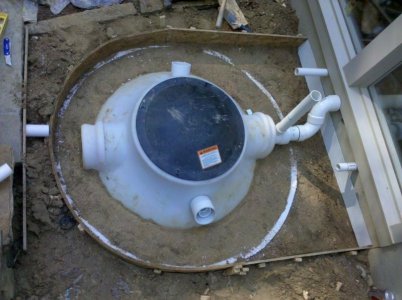

More sump pics


Attachments

  • 2010-04-12 10.03.13.jpg
    2010-04-12 10.03.13.jpg
    69.8 KB · Views: 2
  • 2010-04-12 16.25.56.jpg
    2010-04-12 16.25.56.jpg
    85.7 KB · Views: 6
  • 2010-04-23 17.40.41.jpg
    2010-04-23 17.40.41.jpg
    79.2 KB · Views: 3
  • Sumpwpumps.jpg
    70.4 KB · Views: 2
very interesting, I have never seen a set up quite like this, what are the outside temp highs and lows there?

Noticed the skimmer against the house, is it an MRC?

No. It is an ETSS downdraft. It's "brick and mortar" technology for a foam fractionator, but it still does the job.

If I didn't already have this skimmer, my first choice would be an MRC Orca Pro model. Super nice skimmers. I know the two guys who operate the MRC business. Great guys, the produce a high quality product.
