AI Hydra Settings Thread

[SycoCell]

I figured it out. After converting to .txt, I had to open the file manually and change the second line of the code from version 2.0 to version 1.0. Thanks



[Orcus Varuna]

Also you can post a screenshot of the profile and I can tell you if it's correct or not


Sent from my iPhone using Tapatalk



[SycoCell]

This is with the 12 profile...Not sure the differences. Granted, I have them at 70% dial down for Acclimation. Primarily softies and lps.



[cowboysfan09]

Gen 1 Hydra settings help

Gen 1 Hydra settings help

To all of ya all who have a gen 1 hydra, what are the setting that you use for a mixed tank???



[Mr06evo]

^+1 I've been using the AB+ File and have been seeing great growth for the past 4 months.



[FullBoreReefer]

To all of ya all who have a gen 1 hydra, what are the setting that you use for a mixed tank???

I feel your pain. I have yet to upgrade from the original Hydras, seems nobody care much about them anymore haha.

I stopped using my apex AWM and actually went back to the original AI "wireless" controller. AWM kept dropping lights randomly.

Anyways, here's what I run. I have nothing to base settings from except when I used this controller back in the day. Also used some knowledge I gained from the AWM.

By no means are these the go to settings, mine are mounted 11"AWL...

W- 16%
Blues - 80%
R&G - 3%
V - 80%
UV - 55%

1pm-8:30pm with a 1.5hr ramp.

1pm-2:30pm (sunrise), 2:30pm-8:30pm (mid day), 8:30pm-10pm (sunset).


Hope that helps...



[SycoCell]

Anyone have a good "viewing" light setting? As in, a quick temporary setting to flip to if someone visits and wants to see some nice colors and really make the coral pop?



[Orcus Varuna]

AI Hydra Settings Thread

Anyone have a good "viewing" light setting? As in, a quick temporary setting to flip to if someone visits and wants to see some nice colors and really make the coral pop?

If your looking for straight fluorescent pop just turn UV, V, & Blues to 100% and W,R,G off. If not I don't really know how much more pop you are going to get. The AB+ profile is about as much pop as the lights are capable of.

Sent from my iPhone using Tapatalk



[SycoCell]

Great. Thank you.


Sent from my iPhone using Tapatalk



[d0ughb0y]

I got an AI hydra 26HD and a 52HD and compared the power consumption.

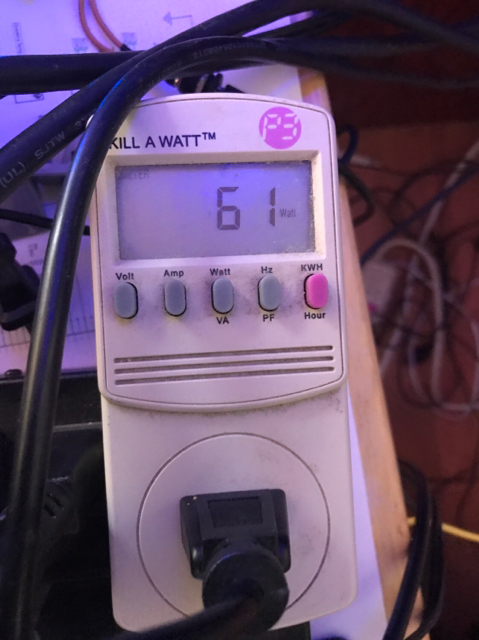

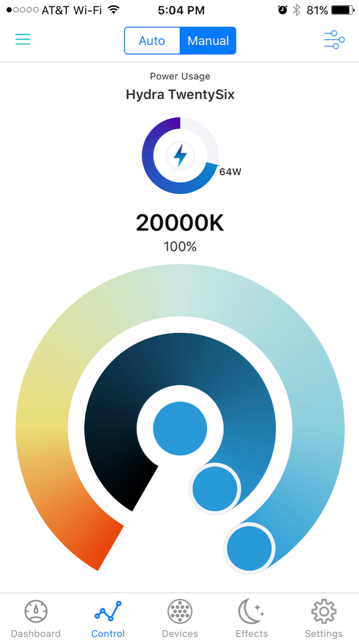

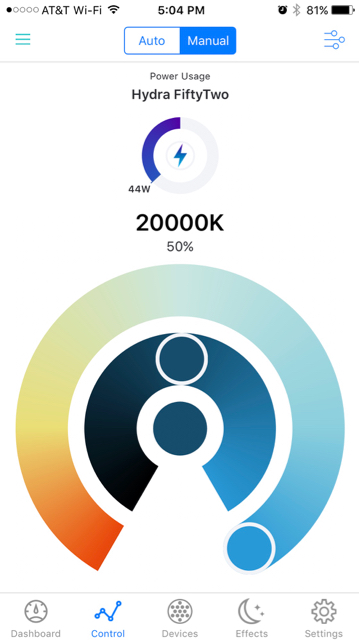

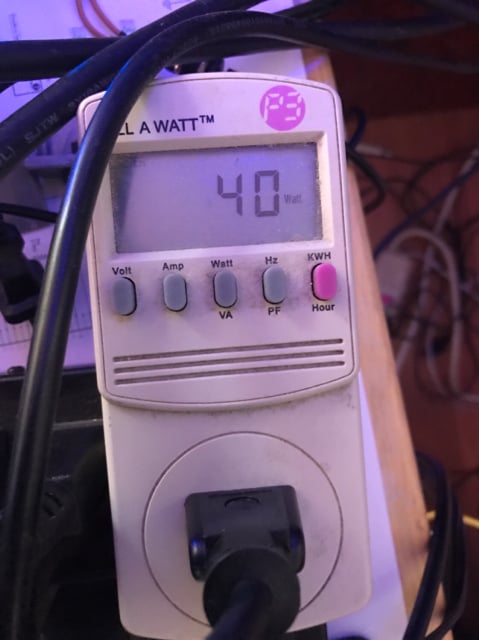

I compared 26HD 20K 100% vs 52HD 20K 50% and here's the result from the iPhone app and reading from killawatt. The iPhone app power values are quite accurate.

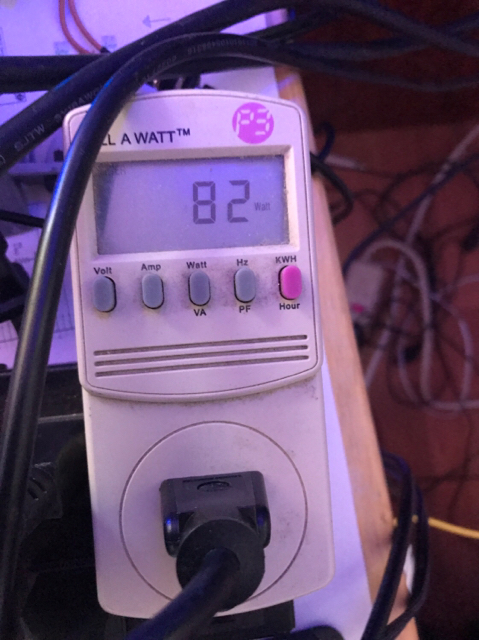

Then I checked power usage of 52HD 20K 100%

I do not know if the PAR values of 26HD at 100% is comparable or same as 52HD 50%, but it seems 52HD is more power efficient.



[Orcus Varuna]

Pretty much yes to question 1. So pretty much within reason the most lights you can run and the highest you can run them off the water (up to about 2') the less hot spotting and better coverage you can have. As for question 2 the wattages are a misconception and have to do with power routing. The more diodes you can run in series the less total wattage per diode is required due to the effect of some energy used to power diode one passing on to diode two and so on. Someone with an electrical engineering degree can describe much better then I lol. But basically even though if you add up two hydra 26HD it is higher total wattage then 1 52HD this doesn't translate into two 26's or 4 primes putting out more photons then the 52HD. I hope hat wasn't confusing as all hell lol


Sent from my iPhone using Tapatalk

Bump


Sent from my iPhone using Tapatalk



[Orcus Varuna]

AI Hydra Settings Thread

I got an AI hydra 26HD and a 52HD and compared the power consumption.

I compared 26HD 20K 100% vs 52HD 20K 50% and here's the result from the iPhone app and reading from killawatt. The iPhone app power values are quite accurate.

Then I checked power usage of 52HD 20K 100%

I do not know if the PAR values of 26HD at 100% is comparable or same as 52HD 50%, but it seems 52HD is more power efficient.

See the response I just bumped on increases in led efficiency the more you place in a series. Hence the 52/26 efficiency differences you are seeing. On your other question about PAR the short answer is "probably yes" the long answer is "probably no" due to the intensity of the light being emitted by a diode run at 100% vs 50%


Sent from my iPhone using Tapatalk



[Orcus Varuna]

I figured it out. After converting to .txt, I had to open the file manually and change the second line of the code from version 2.0 to version 1.0. Thanks

Glad you got it hope you are liking the schedule


Sent from my iPhone using Tapatalk



[SycoCell]

Glad you got it hope you are liking the schedule


Sent from my iPhone using Tapatalk

At the moment it's on the AB Rep schedule not the SPS+24. I need to modify the AB+. It shows lights on 100% and super powerful. Slowly learning.


Sent from my iPhone using Tapatalk



[d0ughb0y]

Bump


Sent from my iPhone using Tapatalk

yes I have read that, but wanted proof so I did the tests for the record.



[gtp0083]

Little help please . I've read most of this thread just can't seem to find an answer on this. Went from Obit Loop IC lights to the AI Hydra 52 over my IM Lagoon 50. Hydra is mounted about 10" from the water surface.

The tank is 18" deep. I have a zoanthid garden about 2-3" from the top of the water. Everything else, mostly lps, is midway down or on the surface.

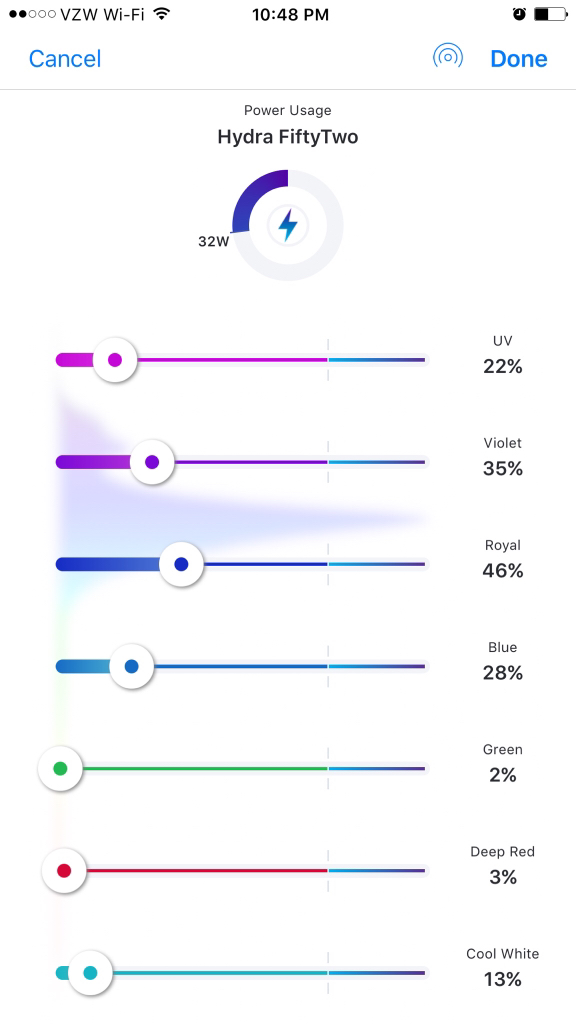

Here is what I set the lights at with a acclimation period of 1 month. Using values about half of these. Does this seal like a good place to start?

Thank you!

Sent from my iPhone using Tapatalk



[Orcus Varuna]

AI Hydra Settings Thread

Little help please . I've read most of this thread just can't seem to find an answer on this. Went from Obit Loop IC lights to the AI Hydra 52 over my IM Lagoon 50. Hydra is mounted about 10" from the water surface.

The tank is 18" deep. I have a zoanthid garden about 2-3" from the top of the water. Everything else, mostly lps, is midway down or on the surface.

Here is what I set the lights at with a acclimation period of 1 month. Using values about half of these. Does this seal like a good place to start?

Thank you!

Sent from my iPhone using Tapatalk

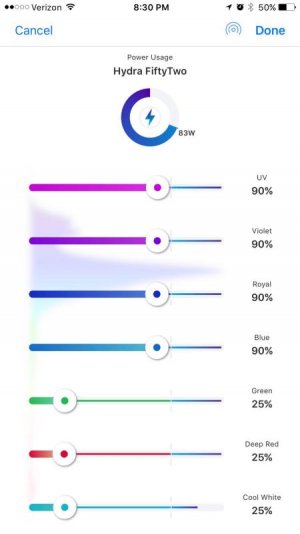

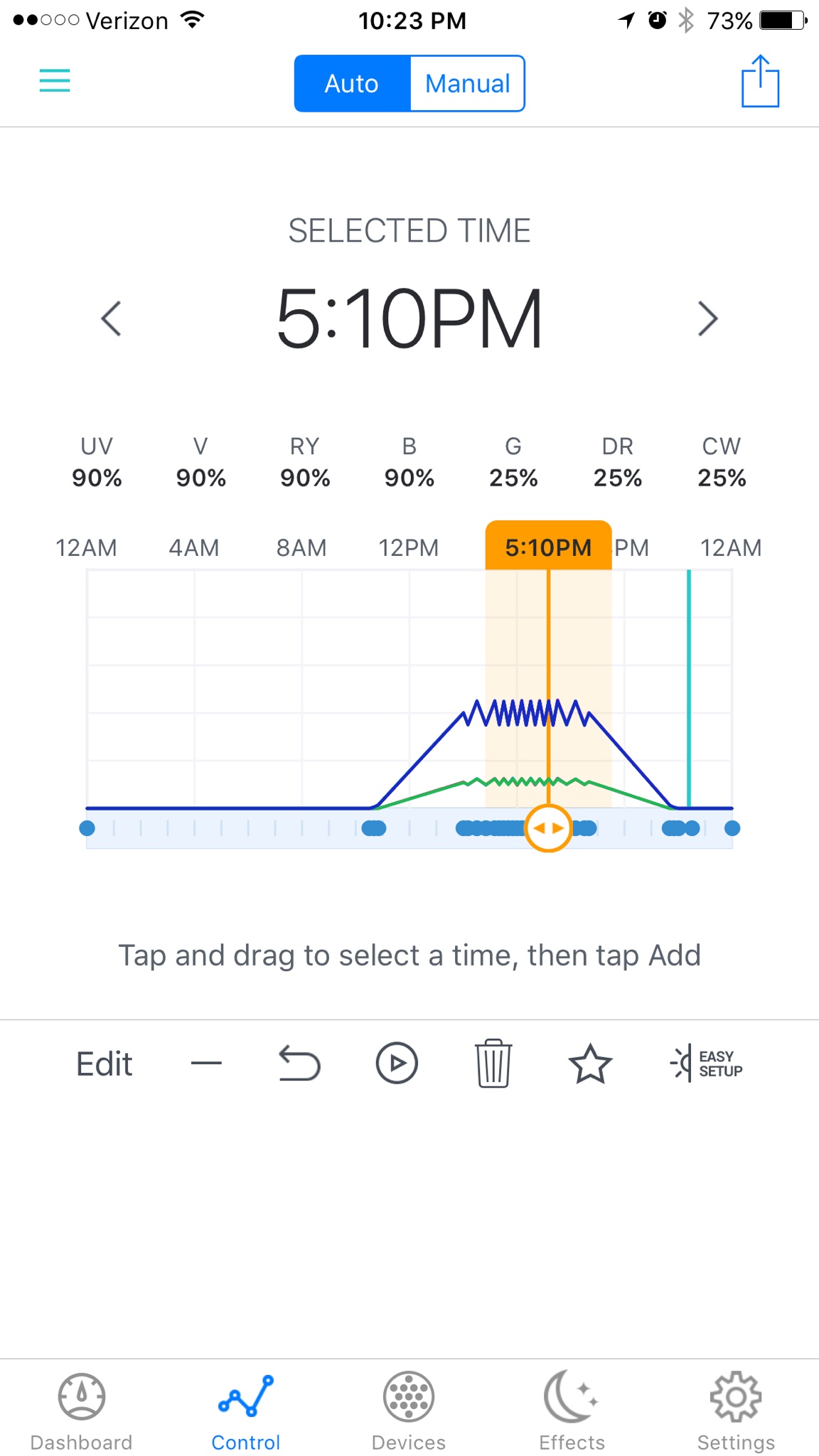

That is an exceedingly weak schedule for a 50 gallon cube. On my SCA 50 my sps AB+ schedule and two 24 watt t5ho. Below is a snapshot of my schedule mid day. My tank is as mixed reef as it gets with Softies/zoas, lps, sps/acropora, and anemones.




Sent from my iPhone using Tapatalk



[gtp0083]

That is an exceedingly weak schedule for a 50 gallon cube. On my SCA 50 my sps AB+ schedule and two 24 watt t5ho. Below is a snapshot of my schedule mid day. My tank is as mixed reef as it gets with Softies/zoas, lps, sps/acropora, and anemones.
View attachment 376885



Sent from my iPhone using Tapatalk

Thank for the reply Orcus

I was concerned with hurting the coral or shocking them with the new lights. I will bump them up to about 60% with a 30% reduction for the acclimation period.

Today was the first full run of the previously mentioned schedule and nothing really opened up fully as it would have with my Orbit lights. Probably to weak.




Sent from my iPhone using Tapatalk



[Orcus Varuna]

Thank for the reply Orcus

I was concerned with hurting the coral or shocking them with the new lights. I will bump them up to about 60% with a 30% reduction for the acclimation period.

Today was the first full run of the previously mentioned schedule and nothing really opened up fully as it would have with my Orbit lights. Probably to weak.




Sent from my iPhone using Tapatalk

Take the acclimation slow as the current lights are very weak especially when compared to the hydras


Sent from my iPhone using Tapatalk



[Orcus Varuna]

AI Hydra Settings Thread

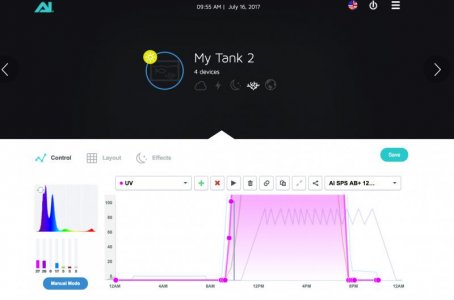

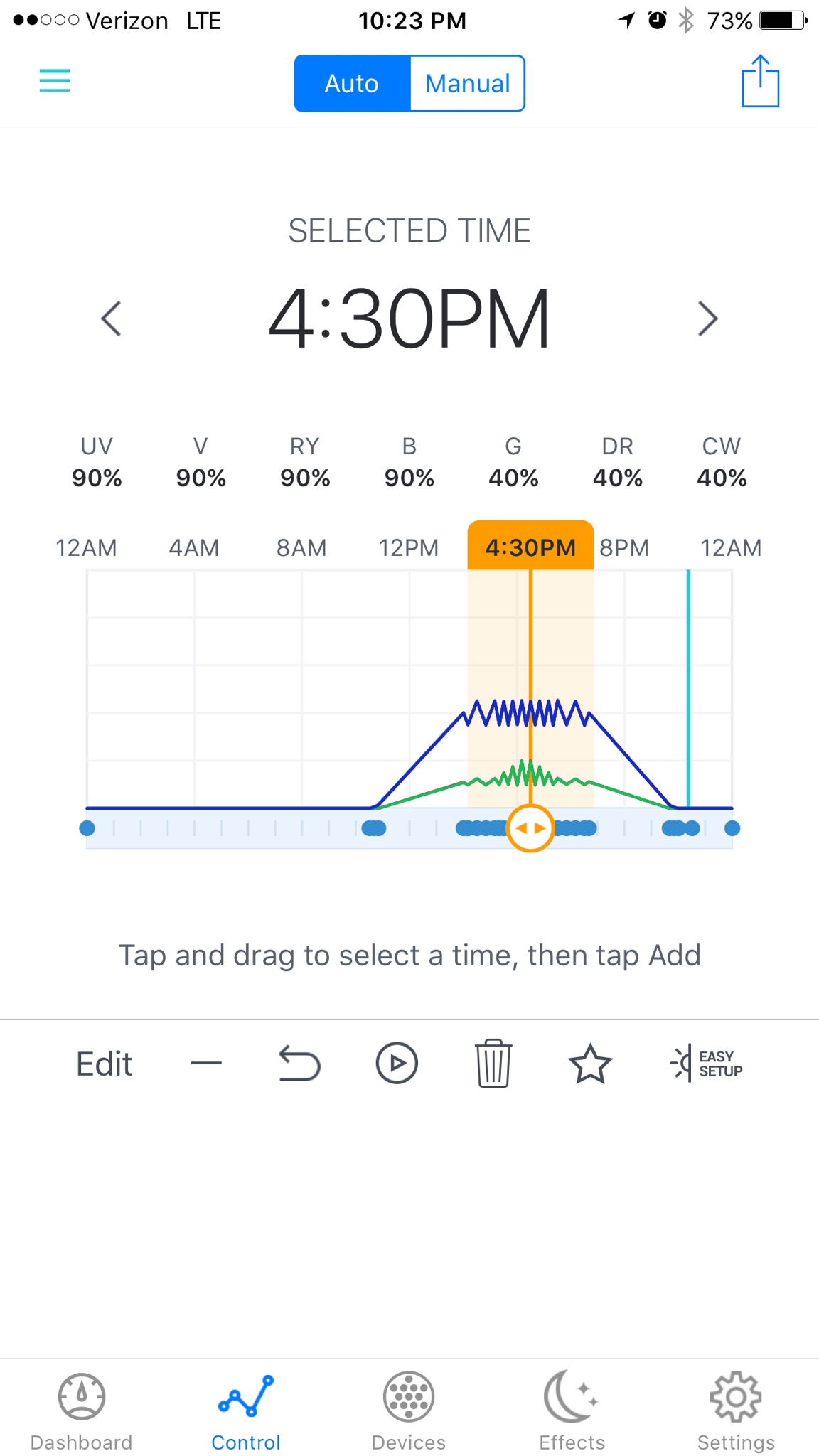

I have gone ahead and updated the SPS AB+ files to the ones I have been using for the past few weeks. I tweaked the profiles a bit to reduce the max intensity photoperiod but added high noon rapid shifting peaks to more closely mimic the suns natural PAR fluctuations at mid day. If anyone is interested a reefer scientist named Dana Riddle has some fantastic research out there on coral coloration and the intensity of the light being produced by the sun. His studies are what I based the profile changes off of. I am using the low power schedule in conjunction with two T5HO (1 ATI Coral Plus & 1 Giesemann Tropic) on my SCA 50 and the High Power schedule on my 17 gallon anemone cube. If anyone is interested I can link Riddles articles and explain the why in more detail. Below is a screenshot of the new profiles and a link to where they can be found. Happy reefing! https://1drv.ms/f/s!Akco_cmvvLNrgZdidaM1bosnUqv21g

Low Power

High Power

Sent from my iPhone using Tapatalk
