Mobile water change station

[Redman88]

Well this a build thread on my mobile water change station. Door I am using tapatalk to post the pictures.

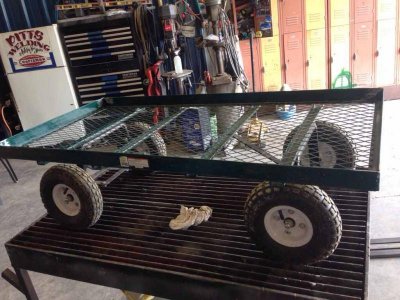

Started off with a cart from harbor frieght

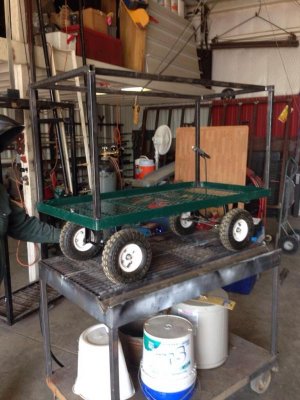

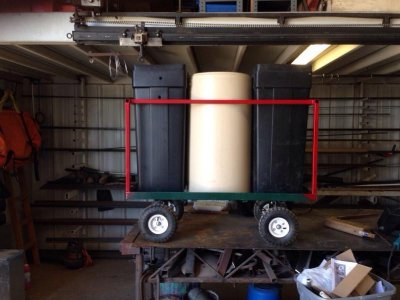

Father in law helped make a frame


Now I am working on the plumbing


More to follow



[Redman88]

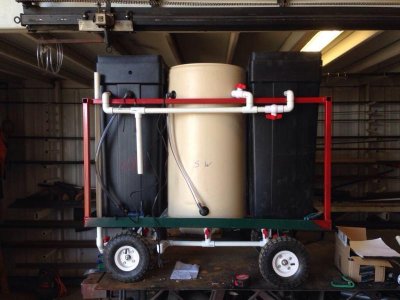

Ruffed in pluming complete



[Redman88]

Mobile water change station

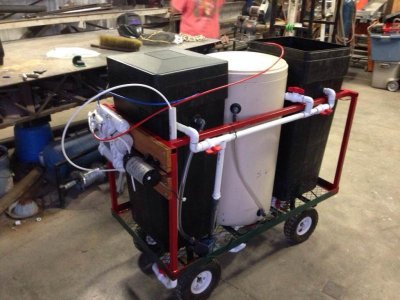

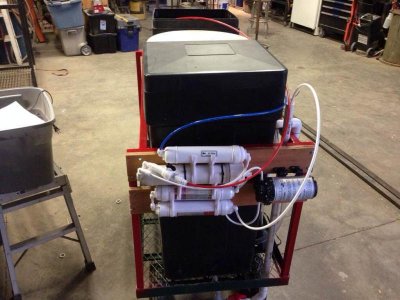

Well got it all glued together and my RO/DI mounted.



Leak test to follow in the next day or two. Just need to get a few fittings and some mor hose



[100%hydrophylic]

Interesting. It looks really well made. Why exactly did you chose to make it mobile?



[Redman88]

Cost of doing a stationary one would have been way to high



[100%hydrophylic]

Where did you get the containers, and what are each of them for? One for fresh, ome for salt, one for waste?



[Redman88]

Where did you get the containers, and what are each of them for? One for fresh, ome for salt, one for waste?

They are brine tanks from water softener systems. And you are correct RO/DI water on the left, salt water in the middle, and waste water on the right



[IgnatiusRath]

Looks good!eMore details on how you plumbed this and what pump you're using please.



[Redman88]

okay, so my ruff in picture doesn't show two of the valves in this picture but the were put in place.

the pump is a Quiet One 1200, but i can upgrade latter, might have to add another Tee in the output pipe and use that to push to sump, will have to see with the wet test.



[IgnatiusRath]

Thanks for that! I may be copying this idea. Those Harbor Freight carts are the best! Since I have to take care of my tanks and go to my mom's to work on her tank, a portable system might be what I need.



[Redman88]

not sure yet how its going to roll with all the water, hopefully i can get to test it out today. if not i will be testing it out first thing tomorrow



[M_Jaco]

not a fan of carrying buckets eh?



[Redman88]

Yep it's a pain on my 55 fresh don't even want to think how it will be when I start up a salt water tank



[Redman88]

Filled with water only found two problems. One easy to fix the other is a bit harder. The easy fix is a water leak on the return side of the pump. The harder problem is the valve for draining the system can't be closed. It hits on the wheel axle. Should be able to cut part of the handle off and fix it. Just need to find the best tool for the job.



[tallball158]

Looks awesome man! keep us updated and keep posting pics!



[IgnatiusRath]

Also watch for the cart sagging. My parents have a few of those and one sagged in the middle after a few years. A few braces welded on underneath fixed it. Will probably depend on how much water you leave in the tubs full time whether you're does it or not.



[Redman88]

The right tool for the right job.



[Redman88]

The right tool for the right job.



[Redman88]

stupid tapatalk


okay so fixed the leaks, and checked my RO/DI system. didn't want to waste my my DI so i just checked the RO. 535 TDS in, 9 TDS out of the RO.
