My Project ★ GENESIS ★ 110G (Miracle) SPS Dream Tank - (I) Pre-Build Thread

No it's not just foam. Check the link above.

Also says don't use on Delicate or Glossy materials (but maybe glass isn't delicate)
Weird. Who ever thought of using Mr. Clean Magic Erasers

I'm leaning towards the Tunze.
I should say you need to reread it as it states it is just foam.

Sent from my Pixel 2 using Tapatalk

Re glass cleaner: I gave both the flipper and the tunze car magnet. The flipper gave me several scratches! So tunze wins on that regard... but the flipper is much more ergonomic and super easy to move around corners as it floats. Tunze is a pia because it doesn't turn the corner as easy and it sinks... so you have to put your hand in the tank for switching sides. If you don't, you risk having the cleaner fall on your corals...


Sent from my iPhone using Tapatalk

I should say you need to reread it as it states it is just foam.
You are correct. The Formaldehyde mixed with Melamine becomes a non-toxic foam.

INTERESTING.

So do you just stick the WHOLE thick pad in between your Strong magnet cleaner? Or slice it like thin salami?

Last edited:
Re glass cleaner: I gave both the flipper and the tunze car magnet. The flipper gave me several scratches! So tunze wins on that regard... but the flipper is much more ergonomic and super easy to move around corners as it floats. Tunze is a pia because it doesn’t turn the corner as easy and it sinks... so you have to put your hand in the tank for switching sides. If you don’t, you risk having the cleaner fall on your corals...
Thank for your input. Flipper is OUT since even one scratch is too many (for at least a while).

I can live with sinking but SAFE Tunze. Maybe add a fish line for recovery.

I can't see more options (all pad types can grab dangerous grit)......... except maybe for the HARD TO BELIVE (Magic Eraser gizmo method). I gotta try it on my old 65 Gallon tank.

You are correct. The Formaldehyde mixed with Melamine becomes a non-toxic foam.

INTERESTING.

So do you just stick the WHOLE thick pad in between your Strong magnet cleaner? Or slice it like thin salami?
I have done both I now just use the whole thing and flip it after several cleanings.

Sent from my Pixel 2 using Tapatalk

I have done both I now just use the whole thing and flip it after several cleanings.
INCREDIBLE!!!

I am reading up on Mr. Clean in various forums.
Many many people say it's effective.
People use the Mr.Clean Pads on ACRYLIC Tanks.

If it won't scratch acrylic, then it's gotta be ok for Starphire Low Iron Glass.

Amazing.

Thanks Brandon. Maybe getting a good floating magnet might be the better choice. Or just use the one I Float Mag I have.

Is it important to get a strong magnet to ensure pressure is good due to the extra SPACE/GAP (between Magnets) created by the MC pad thickness.

How about getting to the Corners/Edges with the MC Pad?

I also use it on my acrylic tanks. With my strong hammerhead magnets it works great. I find it gets the corners well too since it over hangs the magnet. You're welcome.

Brandon,

Very cool. I found a couple of Magic Erasers in the cupboards and Tried One (on Old 65G tank)
Works like a charm for cleaning glass using my Not-So-Strong MAG FLoat magenet (when I sliced a pad thinner).

The pad does provide quite a bid of resistance when sliding across glass.
Bit tricky to use, and I figure will take some practice getting around corners (since I lost the MC pad once.....but it just floated away harmlessly).

I also tried a small piece of the pad on my Two Little Fishes mini Magnet cleaner (works great too). For sturdiness I may carve the sponge to fit the inside cleaner pad better.

I am ordering the Tunze for the frequent cleaning chore. Sure it doesn't float, but appears to me effective, easy to use, and safe.

HOWEVER I just realized I have a new Challenge I never faced with my OLD TANK SETUP.
-> I now have a EuroTRIM top, so it will be more challenging getting the inside magenet part into the tank (Over the 5inch, 3inch trim) ** Never thought of that disadvantage**)
-> I used to be able to clean 3 side of tank in SUmp Room, and 1 side in office side (now I have 2 and 2). So having trim on hinges [side and top of tank] might be a good idea.

NOT SURE how I'll build a way to have easy glass cleaning (ACCESS)
This means I need to put tank on Stand, and have it roughly in wall for me to understand how to Frame the Tank (IN-WALL) for easy maintenance.

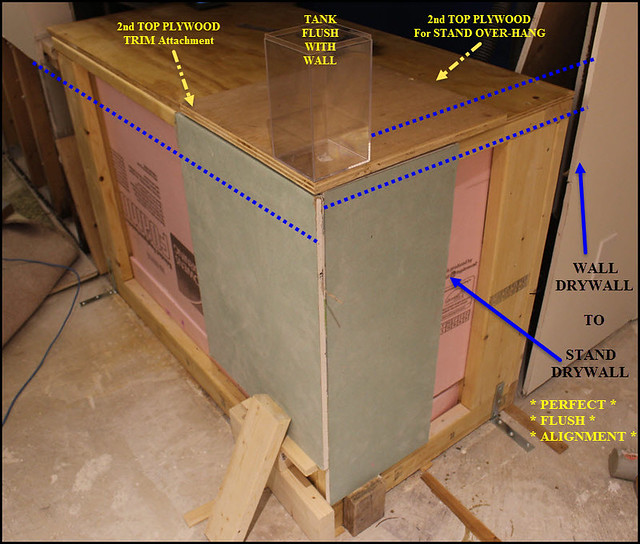

FINALLY FIGURED OUT (BOTTOM FRAMING)

I've been thinking about this for Weeks. (Tons of ideas TO GET TANK FLUSH with WALLS).



This finally to came me today. The * SOLUTION * is the 2nd Plywood or Solid Wood Sheet on TOP (It should work).

The Objective is:

-> A SOLID FOUNDATION (right to the Tank Edges). [ Done by a 2nd Plywood Sheet on Stand]
-> A FLUSH TANK with Drywall [ Done by the 2ND Overhanging Plywood ]
-> Perfectly Level Tank TOP [ The shims under stand AND if needed (fine adjustments) with shims between the TWO plywoods ]
-> Alignment of (BOTTOM & TOP) Walls (with TANK WALL) [ if needed (fine adjustments) with shims between the TWO plywoods ]
-> A PLACE TO ATTACH [Minimal Width Trim] [ To cover Bottom Tank Glass Plane ]


THIS MEANS ( ** NO (Full Surface) FOAM TOP ** ), which would decrease Stability, and shift over time.
I may place thin Pieces of FOAM (kids playmat pieces) in the Minor GROOVE under Tank (between TRIM)....For more even weigh distribution (Less pressure on Tank Trim Edges/Edge of Top Plywood)

I can build this IN ADVANCE and GO AHEAD with Tank PLACEMENT (Then Figure out TOP/SIDE Framing)

Last edited:
Matt,

You know how many times this last week I had a feeling like "Just let's finish this....I want to move on to Sump room (the fun part)".....

But this is Last Chance.....for FOREVER. 15+ years in the making so it has to be done right (or it will bother me for a long time to do a less than perfect Tank install).

I can redo sump , lighting, wires a 100 times, but tank Install changes after water goes in is one shot deal.

Plus all this work for many, MANY weeks can't end with a less than best effort.

Kind of lucky that I can't co-ordinate people to drop by and carry the tank downstairs.

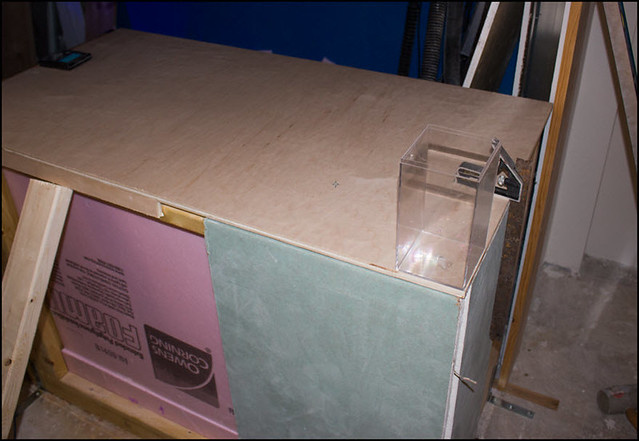

DOUBLE Plywood (Stand TOP) For Flush IN-Wall Tank

Absolute Perfection!!

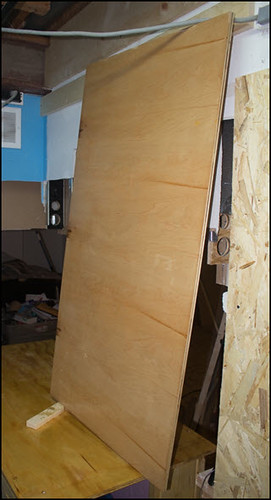

This plywood is what I was going to use for Front Bottom Stand Cover which I won't be using with Change to Drywall......
.. (so I just cut it 1/2" greater than Current Tank Stand TOP for the FRONT/RIGHT Overlap over 1/2" Drywall )

Stand Top Plywood (Sealer)

New Top Plywood sealed with one coat of URERTHANE (Sump Room Side Edges are most important....Where drips and spills may happen)



Takes one day to dry....Then I can finish the Tank Bottom Framing.

SheetRock (Drywall Edging) Corner & Edge

Discovered this (new to me) SheetRock Edging at HOME DEPOT



Stuff is cheap but looks better than the OLD Fashion Metal Edging for Smoother but Strong Plaster CORNER Finish. (This one [shown on bottom] will be used for Drywall-to-Drywall Bottom Corner around Stand)

The 2nd Edge Guard version gives me some idea's for some other possibilities (Top Panel Finish) and (Possibly a hinged panel that won't Crumble of time)
I still might use plywood (scraps), but not sure if I can get a finish similar to Drywall, so it may stand out. Drywall with Plaster will be perfect match.

Good question. Since that 46" decision took me many weeks to make.
Few reasons for 46":
1) To stay at 1/2" glass thickness that was the design limit (Safety)
2) I want to have some office desk space for monitor and don't want to rebuild everything. 46" will be pretty tight with 2 Sumps, 1 tank in Sump room.
3) External Sump will take up some space, but that space isn't an issue since Overflow drains will be directly over sump.

My Lighting for short term will be 2x250W MH (Fixture is 48", but Bulbs move on track. Will widen, since currently at 36" width), and 2x3ft T5's.
But the T5 Ballast can handle a 4 foot T5.

derek made me a 60x24x18 rimless with 1/2"

derek made me a 60x24x18 rimless with 1/2"
Too late now.

Perhaps your 18" height was allowed. Mine is 22" so 4" Taller.
Could be other reasons (Derek Was having a bad day :) ,
Derek did check with the crew on the limits , And one of the main factors was this is a HIGH CIRCULATION SPS tank with 3 Gyre's, Plus SeaSwirl so he mentioned Internal Dynamic Pressure Safety, when pushing around WAVES and PULSES ).

He said a regular tank with low-medium circulation could be larger at 1/2" Glass.

I'm actually happy with my tank size. 46" Wide is really working out for desk space and great extra Space in Sump Room. 24" deep is something I look forward to trying for first time.

Regardless, I am really pleased staying 1/2" Glass and not any thicker.

Last edited:
ALL READY (For Tank Move) Nothing More Can be done

The Top is Dried (2 Coat).

I also replaced the Corroding Metal studs with Wood...Last Chance before Drywall goes up.



My meticulous attention to Building stand to accuracy paid off.

The Stand lines up SQUARE [Vertically and Horizontally] to (Side and Top Walls).
Final validation will be when Tank is placed on top.

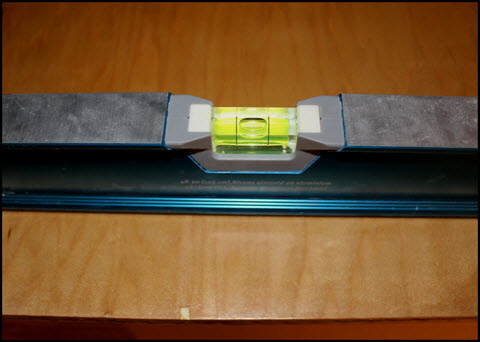

The Stand is perfectly Level without any adjustments. Shimmy are there to fill in minor gaps (concrete Floor), but no Leveling Adjustments were needed.

NOW I need to find 3 helpers for Carry down. Plus one Spotter who can be my son.

TANK WILL BE ON STAND THIS WEEKEND (I Hope).

Trying a Stand Skirt (Wood VS Drywall) Left over Plywood/Planks

I don't want to cut the Full Sheet of Drywall yet.

To line up Top Plywood, I used left over wood.

Doesn't look bad. Wood is always better than Drywall.



Not sure if this will work for the wall matching, etc.
May look ok as a Stand Alone Stand but I am not sure....

May look awkward.....(1/2 a Stand Stuck in Wall).

More Fooling around (Oak Trim)

Just trying to see options.



These Oak Trim Strip are $10 each, so I can't cut them unless I decided on using them. (using tape for trials)

The value of the Oak Strip is they are THIN and HARD (so won't warp and easy to mount)

Could be painting to match wall, or stained (but mixing 3 kinds of wood might not be ideal)


BUT I HAVE TO PUT THINGS in Perspective.

When the DESK is put back will all this Framing really matter.



Simple Drywall with Slightly Darker Paint Trim may be best.

Last edited:
