Need Help with Skimmer

[kratosxxl]

Hi all

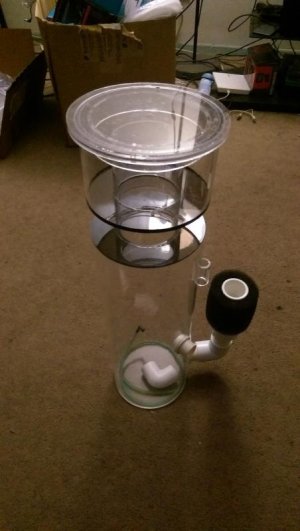

I just got this skimmer and i have no idea what is missing .
Can anyone ID this skimmer brand or maybe tell me what part im missing , i do have about 4 pumps so pump wont be an issue



[tzylak]

Looks foreign to me.
Skimmers usually don't use typical pumps, they use aerators.
Are you trying to cut corners? I'd question that mode.
Good luck.



[kratosxxl]

No but if i can make this guy working why not ?



[viper12775]

looks like a clone of a euroreef rs80 or asm g1 or 2 I would put a sedra 3500 needlewheel pump on it and call it a day



[kratosxxl]

what about buble regulator? or maybe some extra hoses ?



[Jade5051]

Get a nice needle wheel pump with an air hose and slap it on there. You may want to put a gate valve or something on that output so you can control the water level better. Looks like a great skimmer. I'd use it for sure.



[kratosxxl]

Thanks Jade5051
i think i got one with him ill check later today.
and basically that it right ?
also another dumb question , how will i know if its running properly after setup ? like skimmate color or amount ?



[viper12775]

if you have any kind of bioload in your system that skimmer will put sludge in the cup just set the water level to the base of the neck and your done as far as tuning goes



[kratosxxl]

awesome thank. what about pump GPH ? it is for 75 gal reef



[Jade5051]

I think you should follow vipers advice a sedra 3500 needle wheel is probably perfect. Other options include aquatrance and sicce. It really does look like a clone of the euroreef rs80 or asm g1 or g2. You should google those skimmers compare their size to the size of yours and see what pumps they are using then order that.



[kratosxxl]

great thank you



[A sea K]

The neck diameter looks fairly large in relation to the body diameter. What are the dimensions (diameter, height and neck diam)?



[kratosxxl]

sorry for late reply, ill get the dimensions probably today . what will it tell you ?



[Jade5051]

It will tell us what kind of bioload it can handle and what kind of pump you are going to need.
