SPS-A-Palooza grow out system

[Usernam Invalid]

Starting this build thread to document the build and progression of my grow out system. Enjoy

The system currently consists of most of the livestock from my old system, the same display is currently plumbed into this system with plans to replace it in the future. Most of the running equipment has been brought over from old system.

Equipment list:
Apex classic with most of the bells and whistles
Apex ATK for ATO
Deltec TC 2056
Jebao Dcp 18000 main circ pump
Panworld 100px for display supply
Calc reactor is modified Geo 8x18 w/2nd chamber
Kalk reactor is modified Geo 8x18

Sump:
150g 48x24x30 with (6) 7" filter socks and 3 chambers
Fuge:
65g 36x18x24 light by 6x39w T5 w/ various macro algae
20g cheato light by par 38 led grow light

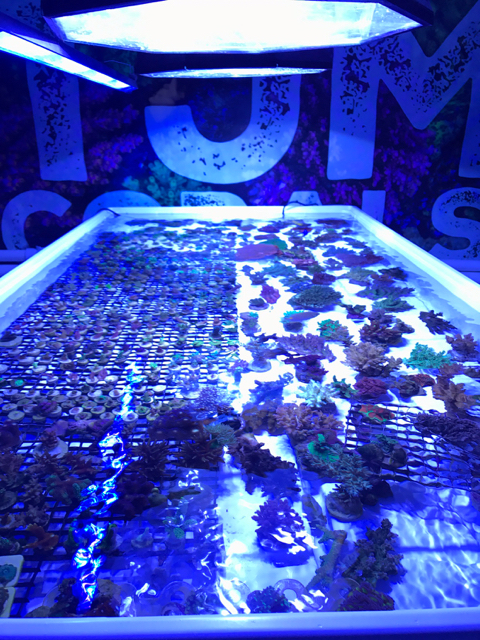

Colony grow out tank:
6'x3'x7"
(2) 250w radium on 20" reflectors
and Reefbright led strip

Frag tank:
6'x3'x7"
8x54w ATI sun power with Reefbright strip

Lps tank: eek
72"x19"x16"
(2) kessil ap700

Display:
120g 4x2x2



[Ombhatt10]

Following along, good luck Jay


Sent from my iPhone using Tapatalk



[Usernam Invalid]

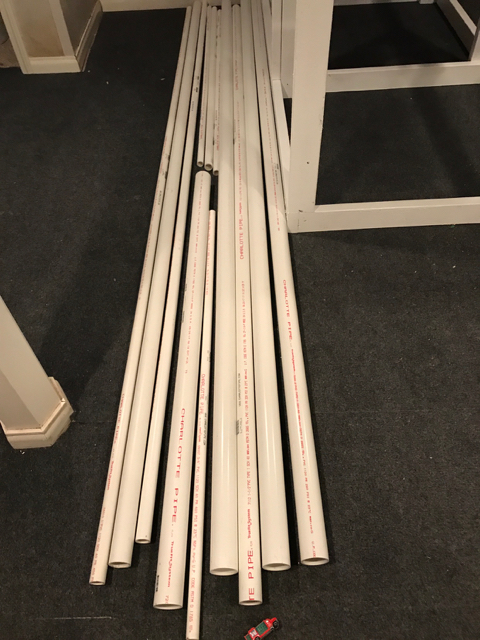

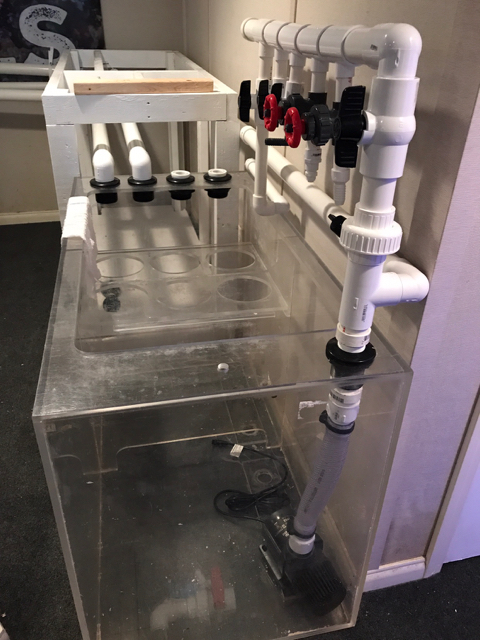

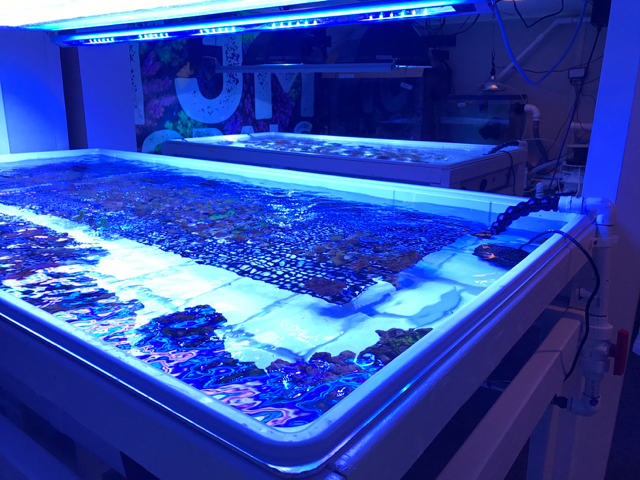

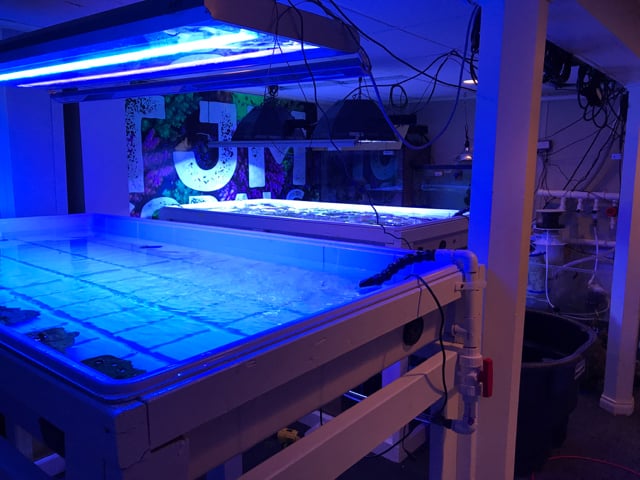

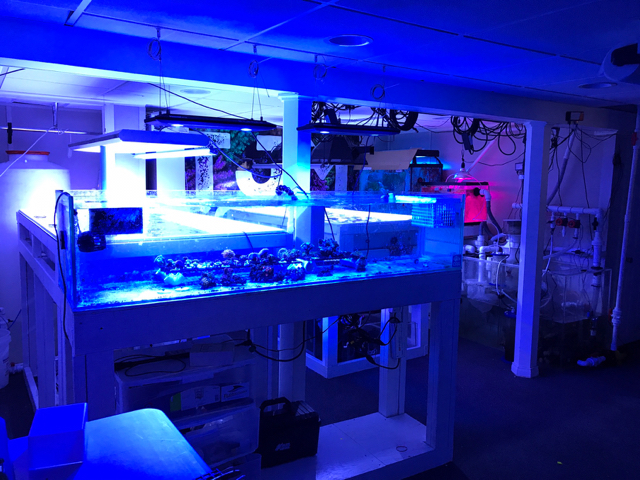

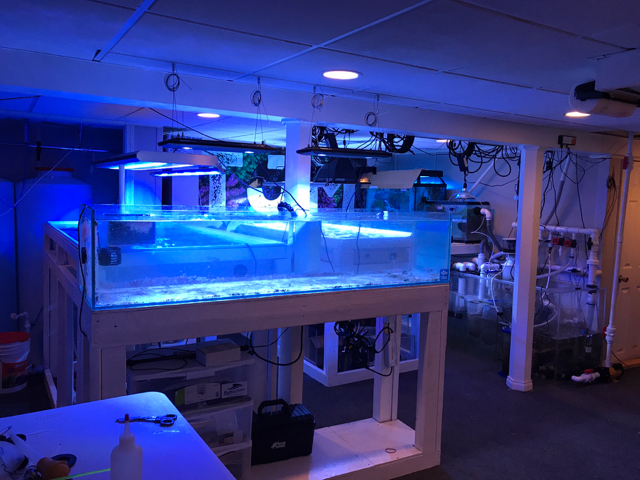

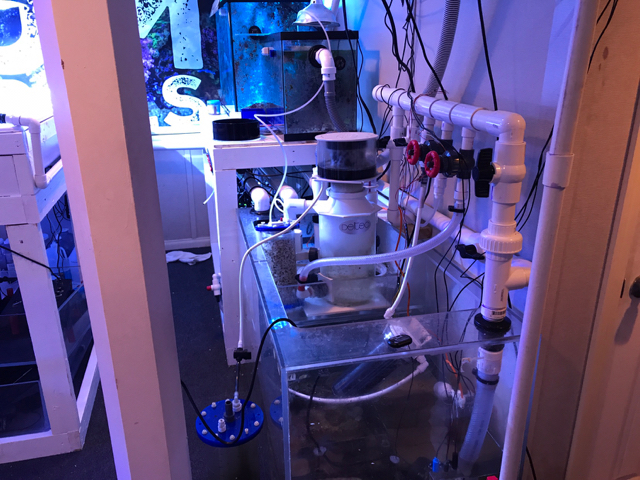

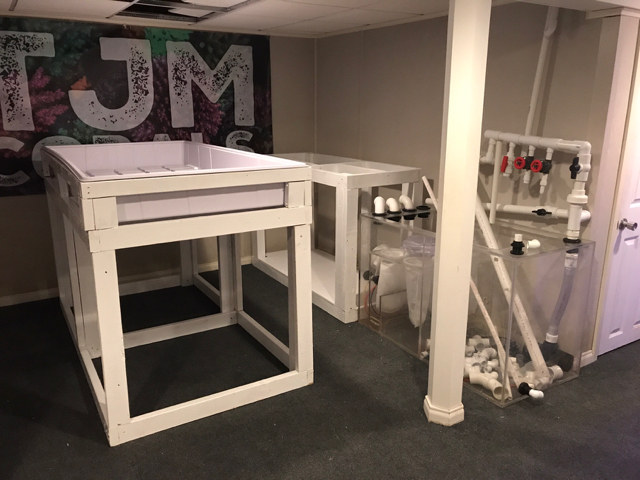

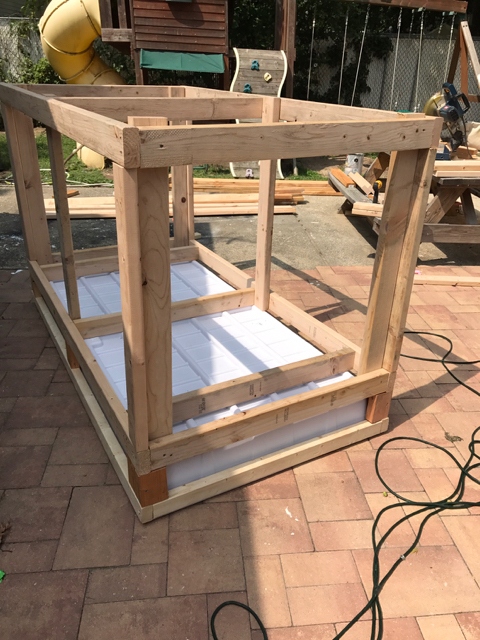

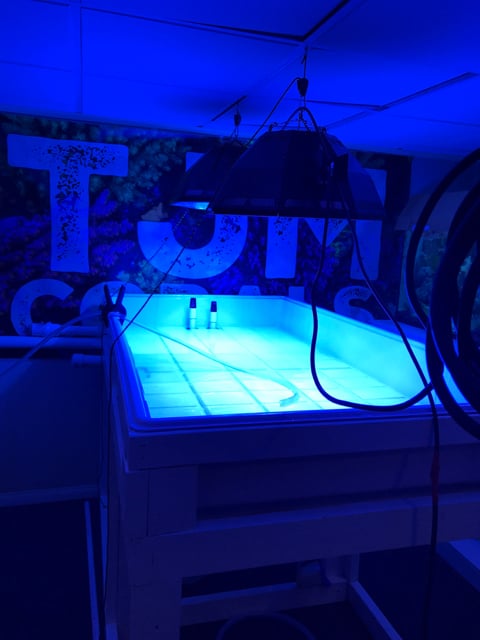

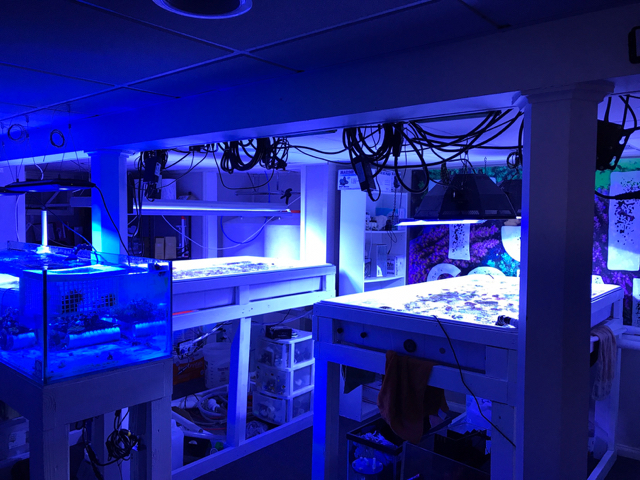

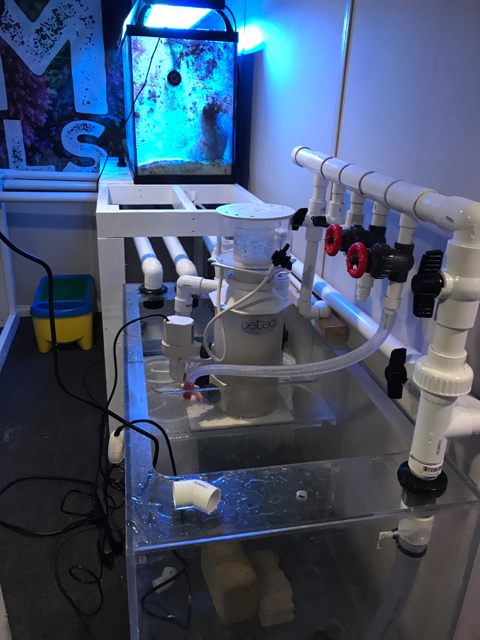

Some build pics

Many more pics to follow



[Usernam Invalid]

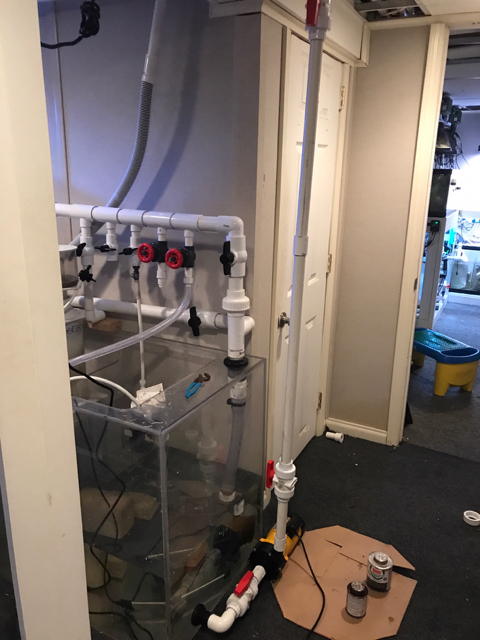

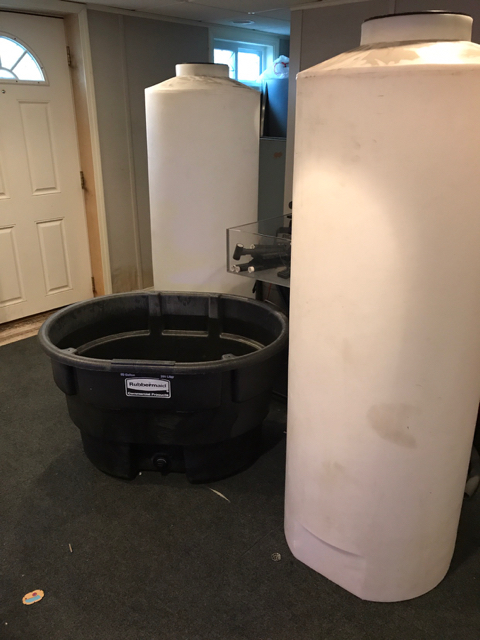

Can see a glimpse of the old system threw the door

Still more



[Usernam Invalid]

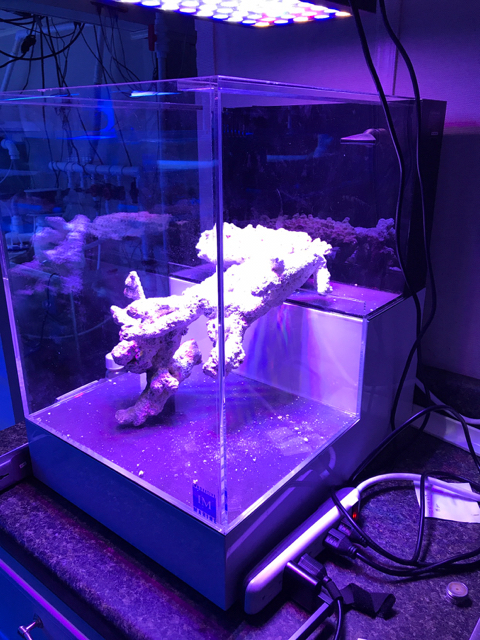

Also have this lil side project I'm helping my son with

Will post plenty more as the system progresses

-jay



[jpitch]

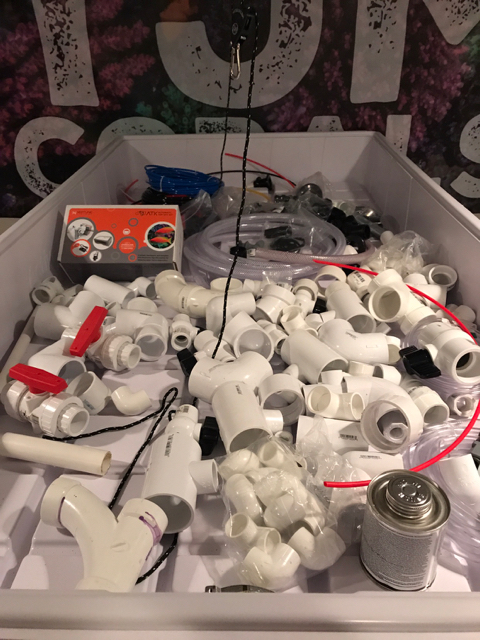

Looks awesome Jay! Amazing how much those pvc fittings add up, eh?


Sent from my iPhone using Tapatalk



[LuizW13]

Dude, that's your house?? shiiiiiit, some operation you got there, bravo.



[DM and the Boys]

Looks great. What's your solution for humidity?


Sent from my iPad using Tapatalk



[reefmutt]

Yep... you are an animal!
Following this for sure.



[Usernam Invalid]

Looks awesome Jay! Amazing how much those pvc fittings add up, eh?


Sent from my iPhone using Tapatalk

Thanks Jon yea tell me about it that was only the first half of the fittings to plum the sump many more were need to the rest of the system.

Dude, that's your house?? shiiiiiit, some operation you got there, bravo.

Yes it's is. I took over the larger part of my basement that my sister in law was living in for last 10 years. The old system was on the other half that the kids have no reclaimed as there own.

Looks great. What's your solution for humidity?


Sent from my iPad using Tapatalk

Thank you
For humidity control I have 1.5 ton AC unit I run for the warmer months and a large dehumidifier I run for the winter months. There currently is a small exhaust fan that will be replaced with a commercial unit if humidity or heat becomes and issue.

Yep... you are an animal!
Following this for sure.

Thanks Matt tryin to get some good colony pics for you



[Gig 'em]

Wow nice set up. Are the shallow grow out troughs hydroponic trays?



[Leopardshark]

Wow this is insane!



[Usernam Invalid]

Wow nice set up. Are the shallow grow out troughs hydroponic trays?

Yes they are PVC troughs intended as hydroponic reservoirs

Wow this is insane!

Thank you



[Usernam Invalid]

Ready for some colony pics these have been in my system for awhile. Pics were taken under kessil AP700 whites at 50% blue at 40% with my iPhone so quality not the greatest. Colonies where placed on top of a piece of black acrylic



[reefmutt]

Nice!!
I really love the second one with the red body and bluish growth.
But they are are all real sexy!!
Third and second to last are also very interesting.



[Jakers88]

Following. Awesome build. Look forward to the updates.

Sent from my Pixel XL using Tapatalk



[Usernam Invalid]

Following. Awesome build. Look forward to the updates.

Sent from my Pixel XL using Tapatalk

Thank you

Nice!!
I really love the second one with the red body and bluish growth.
But they are are all real sexy!!
Third and second to last are also very interesting.

Thanks matt
The second one is my "Pinky and the brain" or what some vendors are calling pinky the bear the colony been with me about 1 1/2 years now.
It's pink with purple body and red polyps

Better pic of a frag under t5 the led makes the pinks and purples wonky

The third one is one of my Aussie pearlberry that's also been with me longer than I can remember.

pic from old sys under radiums

The second to last is what I've been calling "Boo berry"

One of the few I did a color progression shot of.



[MikeG]

Beautiful build and colonies. Good luck!

Might have to meet one day on the Island...!!



[nemodan]

Oh my God !!! What else I can say. I am speechless.

The Boo Berry is the yellow/pink, correct ? I have never seen something like that. Do you think it will keep those 2 colors ?

Amazing.... Best Daniel



[JB NY]

Wow, that looks great Jay, I need to stop over and check it out!
