60 Cube emergency build from 29 that SPLIT

2 simple guidelines for stocking:

1. get the appropriate fish to fill the space.

some fish are solitary and will claim a large space. some are communal and will share nicely. some are sedimentary and will never need much room, while others feel the need to roam; some to feed others to swim. then there are some fish that like to stay at the top while others prefer the substrate.

2. your tank will have a certain bioload it can handle.

depending on your setup, fuge, skimmer, etc, your tank will have a certain amount of waste it can dispose of. think of it as a septic system. just add the right mix of fish and keep an eye on your nutrient levels. you will eventually reach the correct balance between stocking levels and nutrient export.

if planned accordingly, you can have a tank full of life and not be "overstocked".

<a href=showthread.php?s=&postid=15721661#post15721661 target=_blank>Originally posted</a> by Kdocimo90
I like how that overflow looks. Not too bulky or anything.

It is actually very cool. The only downside to it is that it's 'permanent'. If you want to do any work on the bulkheads, you're draining the tank and pulling that overflow panel off. :eek2:

Went to a frag swap over the weekend & picked up a few goodies:

One thing we managed to pick up was the "herpes of reefkeeping" in a nice fat aiptasia, but we simply remounted the coral on a new rock.

Sorry the pics are so blue. Just got the new ATI Powermodule & took the pics late with mostly actinics on under a few layers of screen.

Couple of Ric's:


Some type of Acan (wife knows)


Acan colony


Colt:


Toadstool:

Okay, so time for a few updates.

Everything has been going pretty well since the emergency build. We've added a few more corals, and the water has stayed very stable. The new ATI Powermodule light fixture is working brilliantly, but we still have another week and a half of acclimation to go through before it's on the tank at full strength (using 3 layers of screen, removing 1 layer weekly).

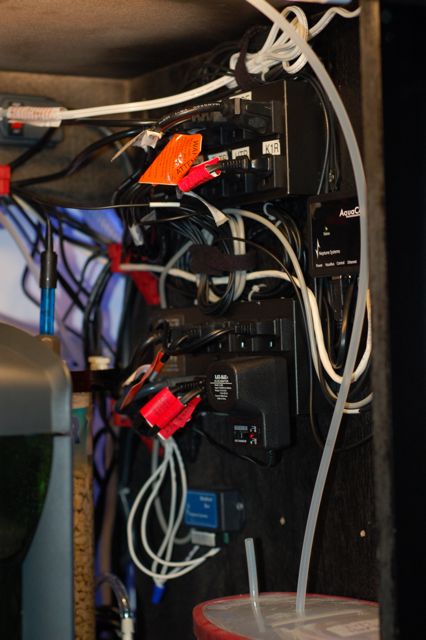

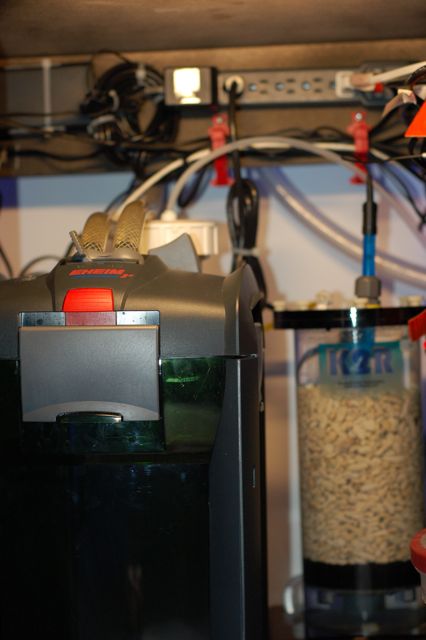

We picked up a calcium reactor from a local guy who was getting rid of it and have installed it. In doing that, I cleaned up all of the wiring to get EVERYTHING electrical off the floor of the cabinet.



I ended up mounting the ATO pump on the left wall of the cabinet away from everything electrical, and ran the feed tube for it across the top of the cabinet. It worked out pretty well.

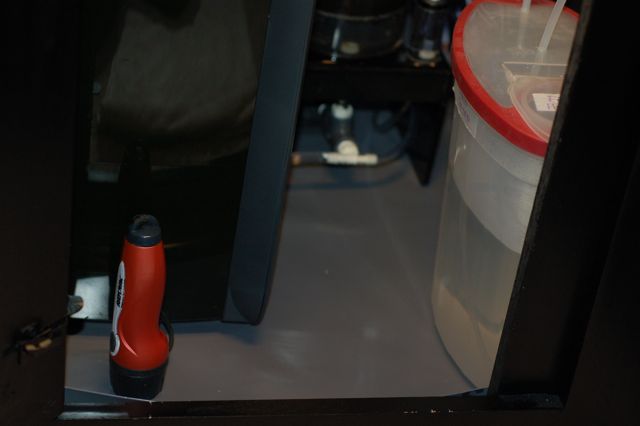

Another thing I did was pick up some thick rubber "Shower Pan" from Home Depot which we screwed into the bottom of the cabinet to catch water before it gets a chance to hit the carpet where we couldn't clean it up. Eventually I want to pick up a water-bug type sensor and lay it down here. I'm sure this could hold a few gallons of water, but I'd rather not test that theory.



In our additions, we also wanted to add a few more fish. One was for function:

Lawnmower Blenny



The other for beauty:

Flame Angel


All is going quite well, but we still have to toy with the CA reactor to get it set up right. I started with a 'basic' setting, but it ended up raising my Alk more than I was comfortable with, and right now I have to leave town unexpectedly for a few days so I simply shut off the CO2 and will start things up when I get back.

So last night as we were testing the tank and checking things out, I was looking in the sump, watching our banished creatures (we banish things to the sump for bad behavior or because we don't want them in the display. Currently there are a handful of snails (maybe) and 3, make that 2 emerald crabs). Anyhow, I'm watching one emerald pick at some rock and my wife was commenting on how "the poor fella has lost a few legs, looks like he got into a fight" when OUT OF NOWHERE, a hooligan gangsta emerald jumped on the crab and totally decimated him! It was awesome, sad and sick all at once...

The only thing I could do was video it! LOL..

Warning! Violent cannibalistic content! Viewer discretion advised
http://www.youtube.com/watch?v=fADsFK8J-5M

Haven't had any updates to this thread in a long time, but here's something I recently did.

Our Vertex IN-80 skimmer pump became REALLY loud over the last few months, and despite cleaning it repeatedly, it's still rattling a lot and making just too much noise for the bedroom environment it is in.

While visiting with a local guy, I was absolutely astonished at his I-Tech skimmer with a Tunze Hydrofoamer 9410.040 pump on it. It was DEAD silent. Like unbelievable. So I started my quest to see if we could put that pump on the Vertex body.

I would have just bought the I-Tech skimmer, but my sump layout isn't big enough for it.

After a lot of discussions, I ordered the Tunze pump from the guy who sells the I-Tech (google it). It was around $160 shipped.

The pump is almost the same size as the OEM Vertex pump, but differs because everything on the Vertex is METRIC! The Tunze on the other hand is 3/4" FPT which can easily be made to adapt to the skimmer body.

Here's a video of everything from start to finish including before/after sound recordings. While it doesn't sound like much, the difference in noise level is pretty great. Just waiting for everything to break in yet and get some good skimming going on.

http://www.youtube.com/watch?v=V6soHickqVk

quick question: how did you set up the plumbing for the overflows on this tank? I ask b/c I have the exact same tank (getting set up this weekend) and I'm not sure how exactly to plumb it. If you had a picture that would be fantastic!

Sorry to hear about the mayhem! That's my greatest fear with this hobby! Knowing my luck I'd walk downstairs and step in half an inch of water all over my hardwood floors...

quick question: how did you set up the plumbing for the overflows on this tank? I ask b/c I have the exact same tank (getting set up this weekend) and I'm not sure how exactly to plumb it. If you had a picture that would be fantastic!

I don't have any decent pics and can't really get any due to how it's setup, but I'll describe how I did it and how I WISH I'd have done it.

How I did it was to glue "Street"-90's into the bulkheads, and then from there I glued fittings to go into a "True Union" ball-valve (available from BRS) and came out of the ball valve with a barbed fitting to flex tubing down to the sump, and up from the sump return.

The problems I had with this are:

1. I screwed up one of the glue joints on the street 90 and it leaked. However, it was mostly glued so I couldn't remove it. As you see, in THIS tank, getting a bulkhead out is impossible unless the tank is drained, and even then it's almost impossible. This overflow design is quite possibly the worst on the market.

2. Using flex tubing is great, but as the light hits it in my sump/fuge, it grows algae inside of it. To the point that I have actually had a reduction which caused me to overflow once. However, now I clean these lines every 2 weeks when I do a water change. When I move, I will use hard tubing which the light will not get through.

How I would have done it & would recommend:

Find a way which you can use the threaded outside of the bulkheads to attach something threaded to (either an elbow or a simple straight joint) and then reduce down to the size of the plumbing you want. Going with a glued in permanent setup with this particular tank is a terrible idea because the bulkheads are nearly impossible to replace.

Sorry to hear about the mayhem! That's my greatest fear with this hobby! Knowing my luck I'd walk downstairs and step in half an inch of water all over my hardwood floors...

Yeah, it happens. Surely could have been worse. On the whole, I've been VERY lucky with my accidents/incidents.

Hey great save there! My glass tank started leaking at a side joint a few inches from the top. About a drip a second. I could phyiscaly push the glass together and it would stop. Luckily I had a huge clamp in my basement which solved the problem temporarily. Later on I epoxyed on an exterior aluminum "L" channel with a clamp. It's still holding to this day, over a year ago. A pet store owner asked my why I didnt just "wet seal" it. Apparently you can glob on the silicone underwater and the water pressure itself forces it into the gap and stops the leak. He's done it to alot of his displays and it can work. I wonder if it would have worked on your split acrylic?

I was looking for an excuse to upgrade anyhow. LOL..

And the tank that split was glass, not acrylic. I'm guessing that even if I could have stopped the leak, it would have continued to split until it went.

It's been a while since I've updated this and I got a new toy today so here's a few shots.

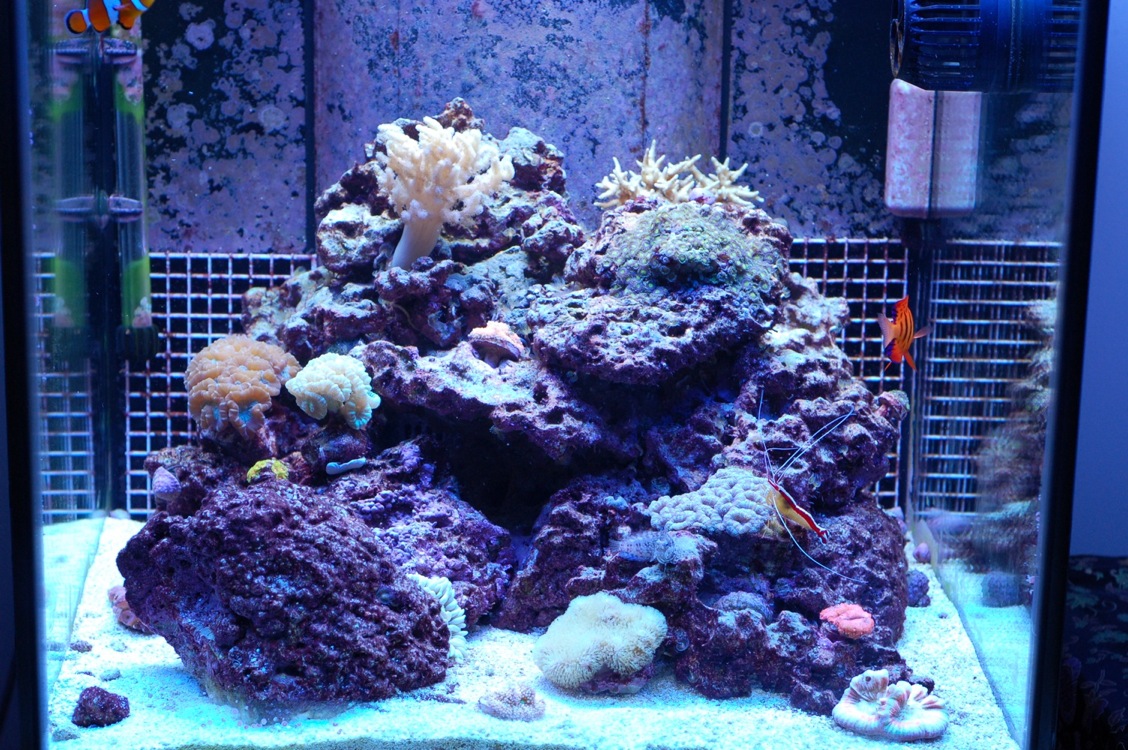

FTS


Pedro the Blenny protecting his Zoas


Candy Canes that grew from ONE head 1 yr ago - From Pauls Corals

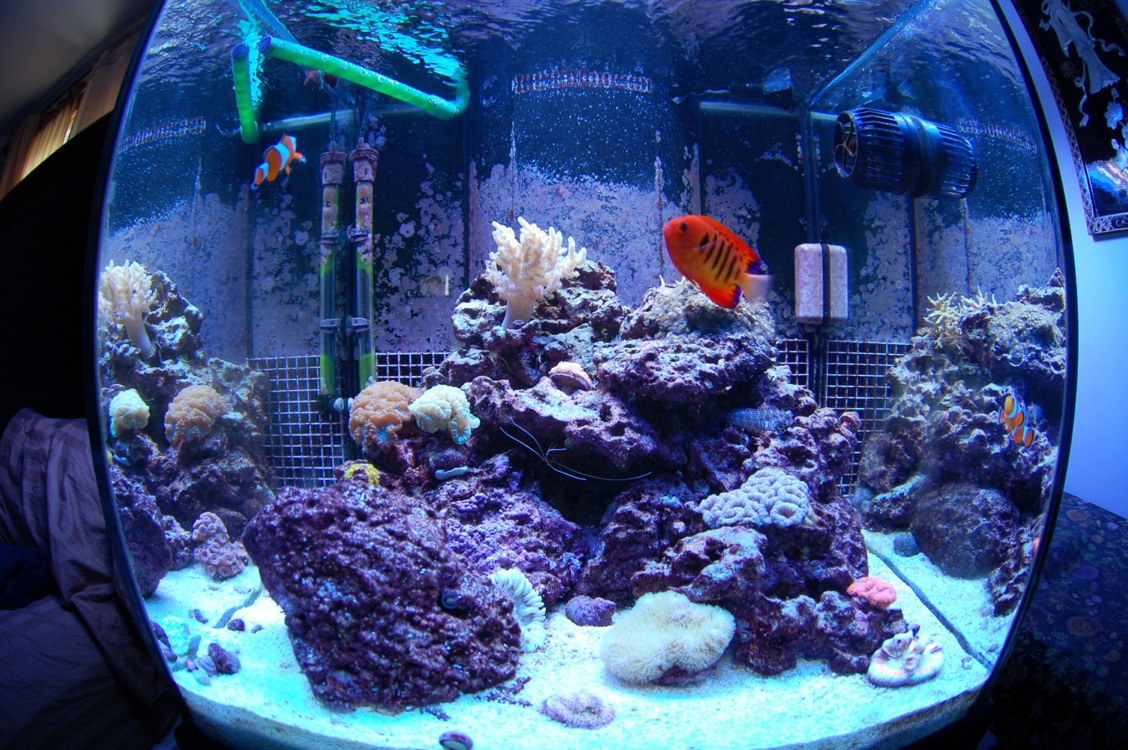

New toy - Fisheye for the Fish tank!


Another Fisheye shot.

Okay, so back for more fun!

The goal was simple. Move the 60 cube from SE WI to downtown Atlanta. Pre-planning took a HUGE role in this and made things go off pretty well. In the pre-planning, I had a new stand made from 80/20 extruded aluminum, topped with granite and then skinned with painted wood (which we will snazz up a bit later).

The plan in a nutshell was to take place over the 3 day weekend of the 4th and was to tear down the tank on Friday, load all of the non-living things in the rental van on Fri, load the livestock into the van on Sat morn ~3:30 and make a 4:00am start, driving straight through to Atlanta, unloading and doing partial setup Sat night, then finishing up on Sun/Mon.

All went mostly as planned.

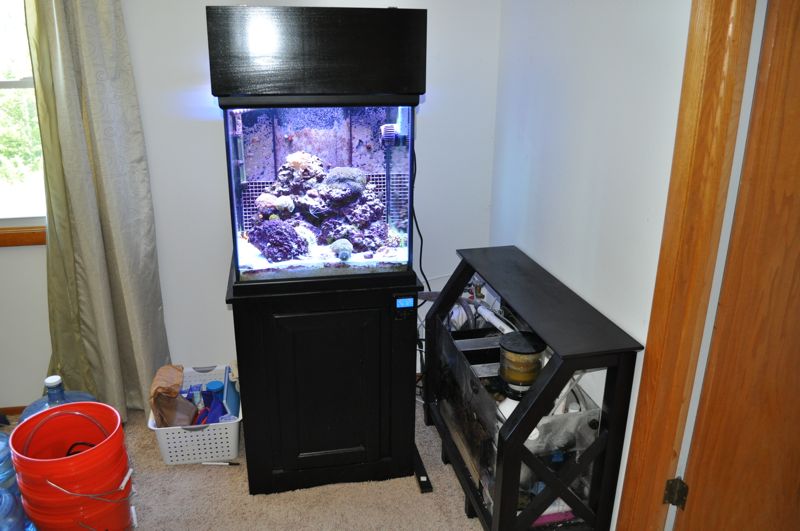

Here's a shot of the start, tank/stand/sump:


And of course, the all important stats on what we've got:

Marineland 60 cube Reef Ready
~20 gal acrylic sump
Vertex IN-80 skimmer modded with Tunze Hydrofoamer pump
ATI 8x24 Powermodule T5 HO lights
Eheim canister filter
Neptune Apex Controller (w/temp/ph x2/ato/moon lights, etc etc etc)
K2R CA reactor
Vortech MP-40W Powerhead
And of course a few other bits which I forgot to mention.

Livestock is simple:
2 clowns
1 target mandarin
1 lawnmower blenny
1 cleaner shrimp
1 fighting conch
1 rock-flower anemone
Trumpet/torch corals
Birdsnest
Shrooms
Toadstool
Zoas
and then some hermit crabs & snails as CUC.

in the move, our existing rock was pretty bad with red furry algae (geledium I believe) and some green bubble algae so we swapped out the worst of it for some VERY clean but seasoned rock from a guy who was tearing his tank down and selling stuff off.

One downside was that I couldn't make water right off the bat at the new place, so I needed to haul ample water with me to keep everything wet and do the build without reusing coral, fish or rock water. Yeah, that meant carrying ~100 gallons of water down there (can you say a van full of 5 gallon buckets?!?!) with some of the water used to keep rock wet & livestock alive.

We got everything loaded & hit the road. The drive was uneventful and everything did just fine. Temp dipped down to about 76, but held in there. We had corals all bagged separately and the fish & shrimp were supposed to stay in sectioned off areas of a cooler which I divided using eggcrate, but they ALL could wiggle through the eggcrate which AMAZED me because my big clown is 2x the size of the holes. I had a battery powered airstone keeping things aerated.

We got in around 7pm and had to lug everything up 1 flight of stairs before we could get into the elevator and take it up to the loft. Once we hauled ~1000lbs or so worth of stuff up to the loft, I started placing things and plumbing, etc.

I had bought 80# new substrate (fiji pink sea-flor sand) for the tank and pre-washed it, so getting it down was simple. I got that down and ran the tank about 1/2 full before calling it a night.

Sunday morning we pulled out the rock and drilled/rodded it (3/8" fiberglass rods from tapplastics) to create a "tripod" style rock stack. I still need to fill in some of the gaps with rubble, etc to hide the rod but for now I'm very thrilled with the layout of it.

We got the rock in and filled the water up using about 50% recovered water and 50% newly made water which we brought down. It took the night to get up to temp and then on Monday we started putting livestock in.

Opening up my huge rock of prized blue zoanthids (which miraculously a newbie like me managed to have the perfect tank as they grew like CRAZY), I was heartbroken to be knocked across the room by the most putrid smell I've ever encountered (and I've smelled some BAD stuff). Ugh. Despite them actually looking okay, the god awful aroma said NO GO for putting them in. As we opened the rest of the corals, the only 2 others we lost were a large finger leather coral and a colony of sun corals. And the only other loss was 3 mexican turbo snails & my tuxedo urchin. In all, not bad at all.. I was VERY worried about the anemone as he didn't look good at all and just wouldn't eat, but after 3 days he's snatching chunks of food just like he used to. And everyone else is adapting quite well.

So without further ado, here are the pics!

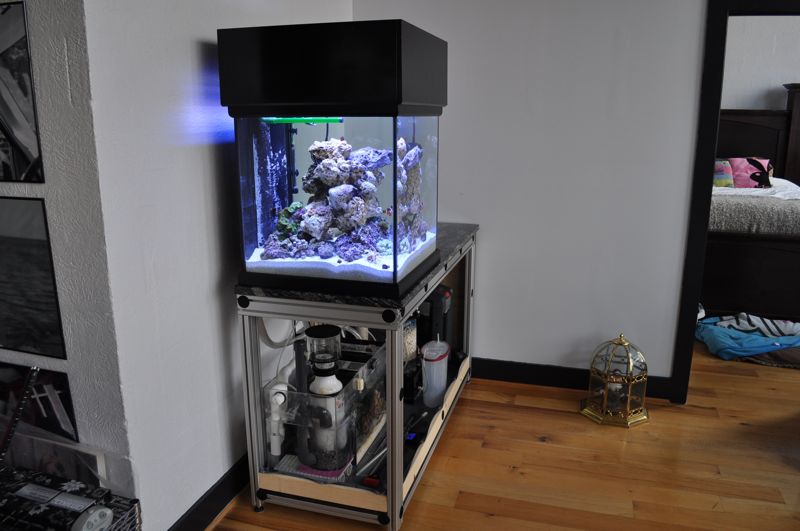

Front of the setup:

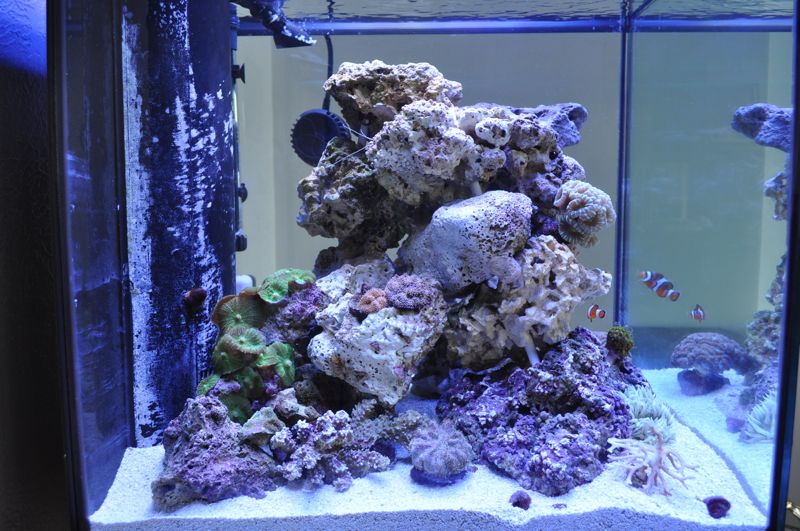

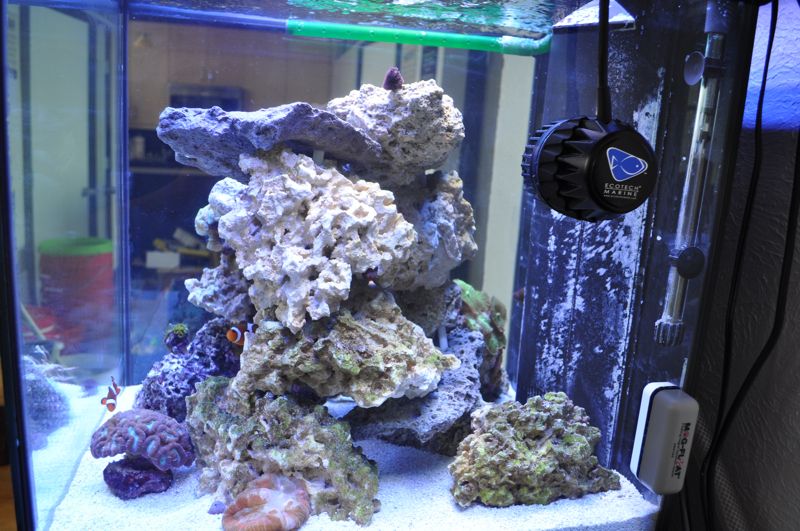

Front of tank:


Right side of tank:


Left side of tank:


Left view of setup:

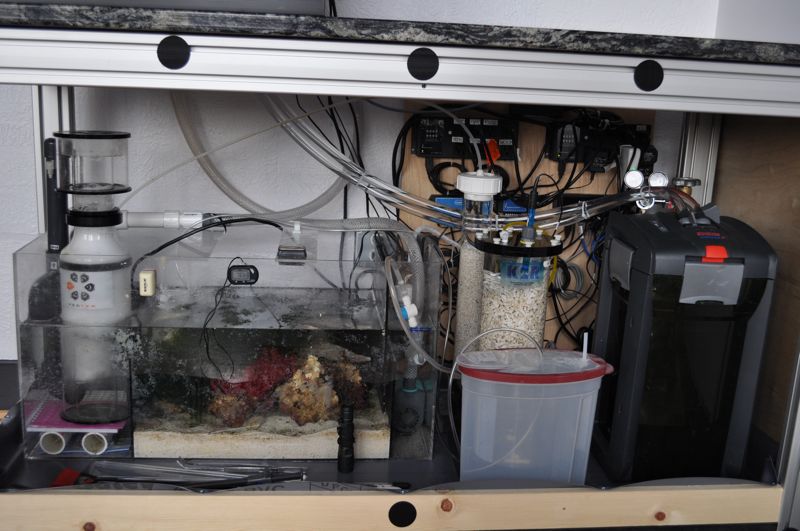

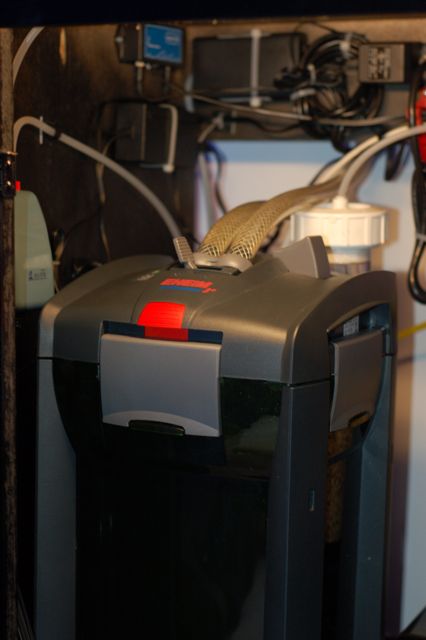

Guts of it all:


Closed up sides:

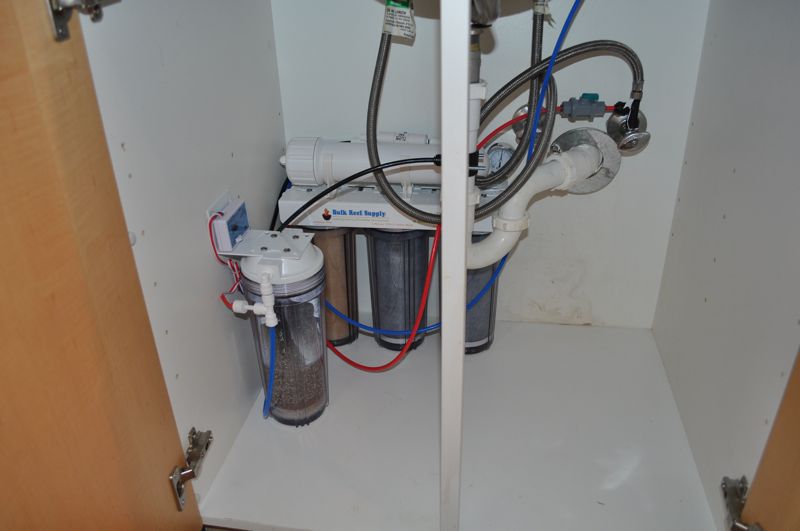

And here's the RODI setup I did! Excellent use of confined space. In my guest bathroom I was able to put my BRS 5 stage RODI under the sink. I can shut it off with the ball-valve attached to it which is important since I need to disconnect the hose from my storage container before moving it or opening it.

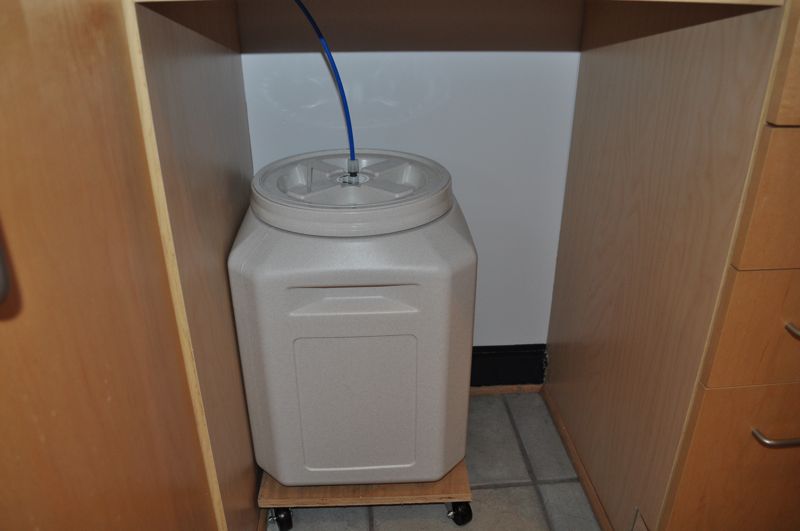

For water collection/storage, I found this "Gamma Vittles Vault" which is a 50# dry food storage container made of food-grade plastic. It is 14x14x20 and holds 15 gallons PERFECTLY which is exactly what I use for my water changes. My intention is to make 15 gal of RODI and the night before I do a change, I will add my salt, a powerhead and a heater, and then on change day I can wheel it out and do the change pretty easily. This seemed like the perfect container for a small space.


And, well, that's about it! Just keeping an eye on things and some day down the road I'm looking to add a BTA and a Crocea clam, and maybe another fish.

It looks good. The rods open up a whole new world to aquascaping. A little epoxy here and there will hide the rods...

It looks good. The rods open up a whole new world to aquascaping. A little epoxy here and there will hide the rods...

Thanks! Yep, Maybe this weekend, I need to epoxy some rubble over the exposed rods. That and some coraline will go a long way!

Still trying to figure out the D5000 and get good pics, but here's a few from the weekend.

Rics:


RBTA:


Flower Nem:


I ticked off the Nem:


Black Suns:

Great job saving the tank split from being a total catastrophe, plus a very nice job on the upgrade. My tank just had its bottom crack a few days ago, went from full to empty in about 1 minute, so I can understand the feeling watching your tank drain. The only good thing about watching my tank dump all its water was I got a laugh watching my lovely girlfriend grab a water bottle to try and catch the water pouring out from under my tank. It was coming out from everywhere around the tank bottom. She did get about 10 ounces though, lol. Now I just need to decide if I try this again or cut my losses.

Just a few updates to the tank since I've posted in the thread last.

Added an Aussie elegance coral. After reading some horror stories on them, I didn't know how well it would do, but so far it's been doing GREAT. It eats like a horse every few days and has no real issues. Very beautiful purple tips. We tried a chili coral at the same time, but I may as well have lit 2 $20's on fire because that's about how fast it disintegrated. Oh well, you win some you lose some.



Wanting to add another fish, but also wanting something rather unique, I found the Mimic Filefish (Paraluterus prionurus) which by all accounts looked to be the perfect fish. Stays small, peaceful, reef safe (relatively) and (relatively) easy to care for. The biggest problem was FINDING one. After a few months of research and waiting, we finally found one and pulled the trigger.

He's been in the tank for 3 days now and has had no problems with other livestock or corals, inverts, etc. He has nudged a few corals but has not nipped anything. Frankly, I hope he does get a taste for snails and he starts eating the hundreds (if not thousands) of tiny snails I have that creep out at night.

I'm very excited about this fish. He's quite curious, but VERY mellow.




And finally, on the equipment side, I had been struggling with low pH since moving from the McMansion in WI to a 1200 sq-ft loft in Atlanta. I had seen a few posts regarding "CO2 Scrubbers" but never really paid attention to them. Then I found a local guy who was willing to split a 5 gal pail with me so I went for it.

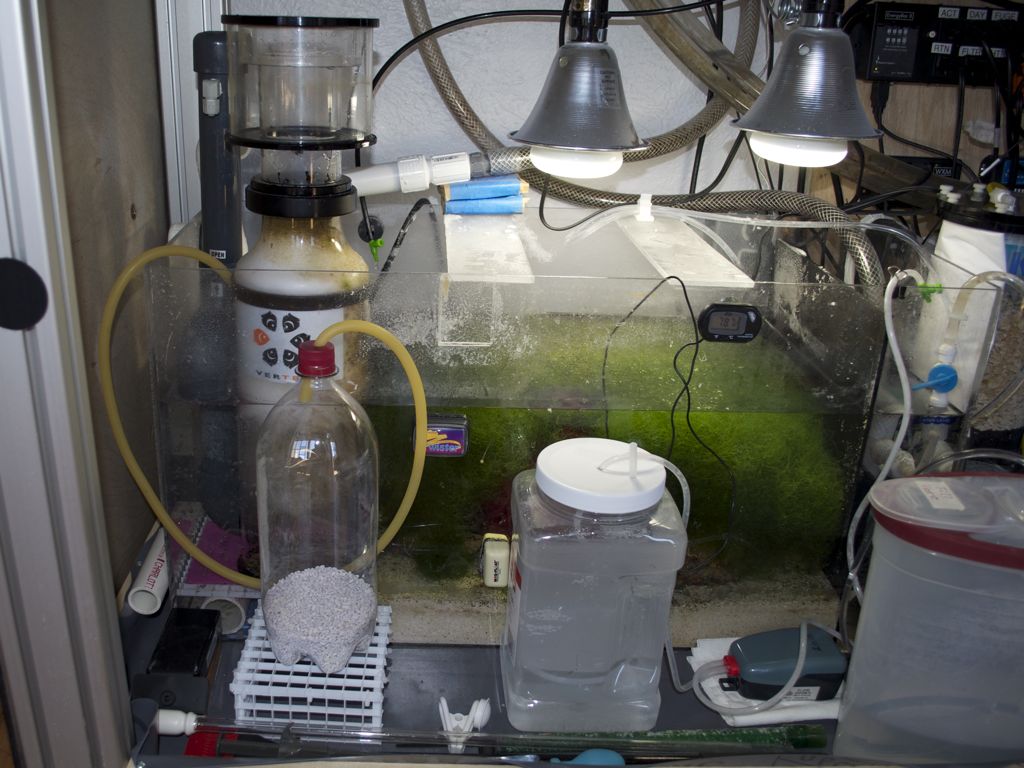

The 5 gal pail was $72 from my local Airgas (about a mile from the loft). For the scrubber/reactor itself, I just went simple. I used a 2L soda bottle and drilled holes in the bottom and extended my skimmer hose, into the soda bottle. I didn't know how much Soda Lime to put in so I just dumped a bit in (it really doesn't matter how much you use, it should just effect how quickly the material exhausts and needs replacing).

My pH was running from 7.68 at night to peaking at maybe 7.9 during the day. Now, I'm running at 8.08 overnight with the windows closed and have hit 8.3 in the day with a window open! Absolutely unheard of before. And even with the window closed, I'm still in the 8.2 range now which was impossible before this. Now it's just a matter of how long the material will last!
