Someone deleted the files so here is the updated link! https://1drv.ms/f/s!Akco_cmvvLNrgZdidaM1bosnUqv21g


Sent from my iPhone using Tapatalk

I have a jbj 45 rl tank been setup for close to a year now, but just recently switched over the the hydra26hd lights from the maxspect razors. I'm running 2 of the 26, 12 inches off the waterline do you have any recommendations on what a good profile to run would be. I run a mixed a reef lps in lower to mid, then some sps from mid to upper. I've been using the saxby lower power settings in acclimation mode and look pretty good but a little white for me I like the more blue look. I've loaded up your sps ab+ lower power with peaks and added 30 percent acclimation mode for now, looks pretty good to me spectrum wise, just don't wanna bleach or fry my corals. Tank dimensions are 26.5" x 21" x 19" any help would be greatly appreciated, from reading through here you seem to be pretty experienced with these lights.

Please someone give me some guidance, I'm driving myself crazy toying with the lights haha. A few of my orange/rainbow BTA's are now turning brown. Tank is a Red Sea E260 with 2x Hydra 26HDs. BTA dominated up top, leathers in the middle, zoas on the bottom. I just want to make sure the BTA's have enough light that they're not turning brown, but not bleach them at the same time.

Here are the settings that I've landed on tonight
UV: 75
V: 75
RB: 75
B: 75
G: 10
R: 3
CW: 20


I was running my UV and V way down around 40% previously which I believe has started to brown my BTA's. The blues were at 80% with CW around 12%. Colors were popping very well but I dont think they were getting enough overall PAR/PUR.
You can see the left side BTA's are overall brown. All the roses have been recently added in the last 2 weeks so they're still bright. The guy I got them from was running his Atlantik LED's at 100% all channels, some of them are a little bleached but they are super bright.




Last edited:
Please someone give me some guidance, I'm driving myself crazy toying with the lights haha. A few of my orange/rainbow BTA's are now turning brown. Tank is a Red Sea E260 with 2x Hydra 26HDs. BTA dominated up top, leathers in the middle, zoas on the bottom. I just want to make sure the BTA's have enough light that they're not turning brown, but not bleach them at the same time.

Here are the settings that I've landed on tonight
UV: 75
V: 75
RB: 75
B: 75
G: 10
R: 3
CW: 20


I was running my UV and V way down around 40% previously which I believe has started to brown my BTA's. The blues were at 80% with CW around 12%. Colors were popping very well but I dont think they were getting enough overall PAR/PUR.
You can see the left side BTA's are overall brown. All the roses have been recently added in the last 2 weeks so they're still bright. The guy I got them from was running his Atlantik LED's at 100% all channels, some of them are a little bleached but they are super bright.






Use my sps AB+ settings your nems will love the extra par. Should blanket them in a solid 250-300 par.


Sent from my iPhone using Tapatalk

I have a jbj 45 rl tank been setup for close to a year now, but just recently switched over the the hydra26hd lights from the maxspect razors. I'm running 2 of the 26, 12 inches off the waterline do you have any recommendations on what a good profile to run would be. I run a mixed a reef lps in lower to mid, then some sps from mid to upper. I've been using the saxby lower power settings in acclimation mode and look pretty good but a little white for me I like the more blue look. I've loaded up your sps ab+ lower power with peaks and added 30 percent acclimation mode for now, looks pretty good to me spectrum wise, just don't wanna bleach or fry my corals. Tank dimensions are 26.5" x 21" x 19" any help would be greatly appreciated, from reading through here you seem to be pretty experienced with these lights.



I would say that low power setting should be perfect for the corals you are trying to grow. If you notice your acros are not coloring up after about 3 months at those settings bump up to my full power no peak profile over a 2-3 month slow acclimation.


Sent from my iPhone using Tapatalk

Thanks for the help. I am certainly glad to hear I am not the only one who has issues. I am always amazed by the help and support of the reefing community. I plan to drop my dKH to 7 and see what the results are. Since I dose Alk I am going to have to wait a few days for it to drop naturally. However, I will test daily until it reaches the desired level.



Anytime just glad to help. Let me know how it turns out and if your acros rebound.


Sent from my iPhone using Tapatalk

I would say that low power setting should be perfect for the corals you are trying to grow. If you notice your acros are not coloring up after about 3 months at those settings bump up to my full power no peak profile over a 2-3 month slow acclimation.


Sent from my iPhone using Tapatalk
Thanks for the settings and advice

Thank you so much for the help and validation. Your settings are pretty much exactly like mine. I'm going to leave them alone for awhile.

This stupid UV channel has me confused. Everyone on the facebook group says drop UV to almost nothing, but all the documentation for the HD's says keep it up with the rest of the channels.



Dropping the uv diode always makes me laugh. 250 watt Metal halides put out about 100 times more uv radiation then the lonely near uv diode in the AI pucks.


Sent from my iPhone using Tapatalk

Orcus, what T5's and schedule do you run?

Sent from my SM-G892A using Tapatalk



I currently run my AB+ with t5ho schedule with no peaks on my hydra 52hd on a 24x24 cube. I currently supplement with 1 actinic and 1 Tropic t5. And am in the process of adding 1 more Tropic and actinic.


Sent from my iPhone using Tapatalk

I currently run my AB+ with t5ho schedule with no peaks on my hydra 52hd on a 24x24 cube. I currently supplement with 1 actinic and 1 Tropic t5. And am in the process of adding 1 more Tropic and actinic.


Sent from my iPhone using Tapatalk

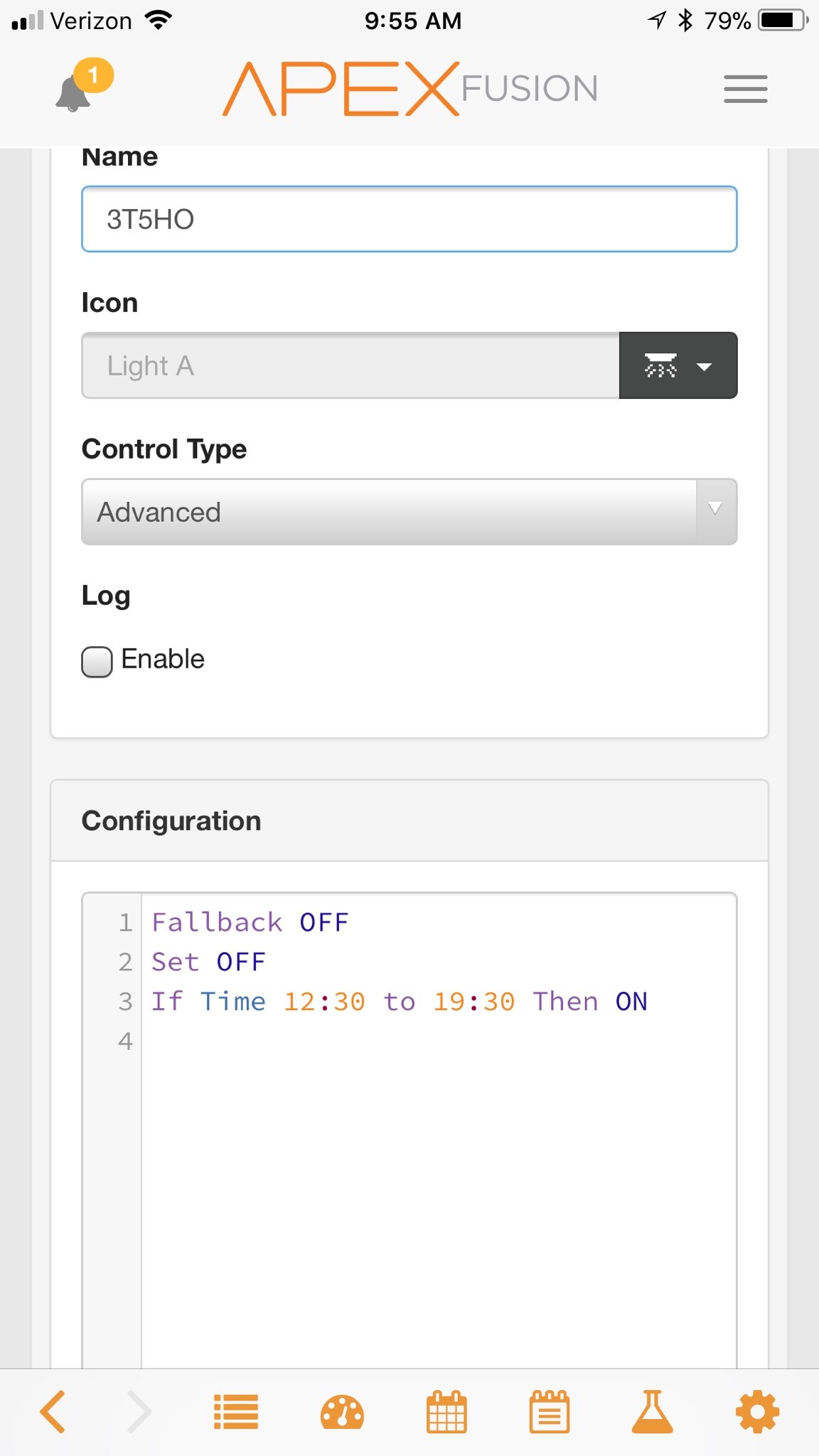

How long are your T5's on? When do they go on and off?

Sent from my SM-G892A using Tapatalk

I'm with @rishma nutrients cause algae not light imo. I think the red and green channels are essential for proper chromatoprotien formation and zooxanthella health. Most of our corals are from less then 20' of water. As such they get plenty of this wavelength light in their natural environment.



Agree, algae growth has little to do with light.
The red and green channels are already covered by the white led. Take a look at the published spectrum plot and you can see.
Red and green are more for marketing.
Also they are low power so they don't do much at all.


Sent from my iPhone using Tapatalk

Agree, algae growth has little to do with light.
The red and green channels are already covered by the white led. Take a look at the published spectrum plot and you can see.
Red and green are more for marketing.
Also they are low power so they don't do much at all.


Sent from my iPhone using Tapatalk



Agreed they are of little significance. I more appreciate what they do for the visual appearance of the tank by warming up the color temp of the display without the par increases boosting the cool white diodes has.


Sent from my iPhone using Tapatalk

Quick question,
I'm currently rocking a center mounted hydra 26HD on my Reefer 250. I finally purchased a 2nd one. Should I dial down the settings when I install the second one, or just keep them the same? I'm running Orcus Varuna's AB+ Low power currently. I have a decently large anemone I don't want to bleach.

Thanks in advance!

Quick question,
I'm currently rocking a center mounted hydra 26HD on my Reefer 250. I finally purchased a 2nd one. Should I dial down the settings when I install the second one, or just keep them the same? I'm running Orcus Varuna's AB+ Low power currently. I have a decently large anemone I don't want to bleach.

Thanks in advance!



Since you effectively doubled the light output I would set both lights at 50% acclimation for 30-60 days. Eventually though you will want to move over to the full power schedule on both lights especially with nems. I'm running my low power on a hydra52hd with 48 watts of t5ho supplements on a 50 gallon cube and get 200-300 par throughout the tank. You with 4 pucks on a 66 gallon tank running just the low power schedule will not have many locations in the tank receiving more then 150 par.


Sent from my iPhone using Tapatalk

Hey,

Thanks for the pointers! Do you suggest I just switch to the high power version now? The difference was the red/green/white channels had more power right? Light came in last week but they sent the wrong mount so I should have it set up in the next day or 2.

Here is a recentish picture of the tank if it helps:


Thanks again for the profiles and the support!
