I don't know about ur meanwells but mine, the HLG-80H-48B doesn't need the wall wart. Just a 100k ohm pot.
CanadaChop
New member
I prefer a whiter look then blue but I will through the blues in to get the corals to pop a little. As I understand it 10000k is good for growth of coral. Am I wrong about this? Does anyone think 100w of 10000k and 40w of 420nm will look to yellow?
hillscp
Soylent Green is People!!
I know. I tried it both ways just because
. I never wired a POT as a voltage divider (I always wanted to say that) before so it is a new adventure. My day job involves software design and implementation in a hospital. Working with things I can actually touch is what I do for fun.When I get it on my controller it will be getting the 0 - 10V signal so I wanted to give that a rip.
hillscp
Soylent Green is People!!
I have the actinic hybrid and it is quite white. The only reference I have is this; I used to run 14k XM halides and they were brilliant white. Then I got some 14k Phoenix bulbs and they were quite blue. The actinic hybrid looks more like my old XM and the Phoenix bulbs running beside the hybrid have kind of a green/blue tinge by comparison.
Lassef
Member
The key wavelengths for photosynthesis for most corals is between 420-460 nm. And yes - it will be rather yellow in a saltwatertank with your configuration. Since you usually do not change as much water in a saltwater tank compared to a freshwater tank accumulates more yellowish organic substances in the water. These then reflect a yellowish color to a much greater extent than in a normal freshwater aquarium.
With this type of multichip you need at least 2 white to 1 blue (in the 445-455 range) but in your case I would prefer a ratio of 1:1
The 420 is good to have with but for our eyes it will appear very weak.
Sincerely Lasse
Last edited:
Lassef
Member

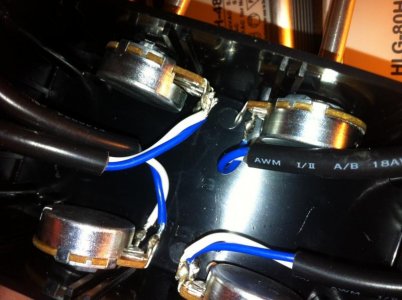

I'll get you one this morning. The blue wire goes to the middle tab and the white wire goes to either side depending on if you you want it increase or decrease resistance by turning it clockwise. But Ill get you a pic in about 2 hrs.
Tony
This is the best I can do. With the shaft pointing away from you and the tabs facing up I have the white wire on the left tab and the blue on the middle tab
Tony
Attachments
"What Lasse had recommended. Despite all the negative people have talked about him one her, he knows what he's talking about. I'm using the Meanwell HLG-80H-48B with 4 20wers in series and apparently still have some room to add a couple of Crees for a bit more white"
Budlight + iPad = bad typing.
Should say "on here" where I underlined.
Tony
Budlight + iPad = bad typing.
Should say "on here" where I underlined.
Tony
Last edited:
Lassef
Member
I'll just blame it on "preppen" then (beer from Gothenburg)
- of course I mean the XM-L series.Sincerely Lasse
I'll just blame it on "preppen" then (beer from Gothenburg)
Sincerely Lasse
Thanks Lasse! I ordered 2 with different lenses.
Last edited:
tfrizz80
New member
Is this on the 100 gal tank in your previous pics?
