You certainly can. That is what I've been using. Basically you keep your current drain and adding one siphon and it will serve the purpose and add safety as now you have 2 drains instead of one.



[Powederblue]

My question is will the 1.5 drain be enough as my perm siphon.
Reef-only could u post a pic please



[Powederblue]

Sorry i ment the 1/2 inch.



[cherubfish pair]

I'm jumping in late on this thread, but I just found this entire site.

This is restating the obvious, but the key to this setup running quiet that nobody explicitly mentioned (unless I missed it) was that the drain line now runs liquid full from the overflow standpipe to the restrictring valve. After that, there is still air in the line, but the controlled "release" from the valve allows the water to flow along the pipe walls, rather than in some kind of transitional flow between empty and liquid full.

Rufio: You're comment about the restrictions and standpipe height is incorrect.
For this setup, the standpipe height has zero to do with the level in the overflow. As you've seen, the level in the overflow is controlled by how far the valve is closed. You could run this setup with only a bulkhead and the emergency standpipe and get exactly the same results. (NOTE: You might need a vortex breaker on the bulkhead. The strainer usually functions as one.)

Since the drain is liquid full from the valve to the level in the overflow, the static head at the valve is the same regardless of the standpipe height. If take a cardboard mailing tube in the pool with you (open on both ends) and hold it vertically against the bottom, the pressure is going to be the same inside and outside the tube, regardless of how tall it is (as long as it's totally submerged).

Dual Overflows: For everyone with dual overflows, does each line drain individually into the sump, or do you tee them together?

What are people using for vortex breakers?



[Sebastian83]

Planted tank with Herbie method

Planted tank with Herbie method

Hi, Stumbled on the Herbie design from watching some youtube videos. I didnt see anyone using HOB overflows in this thread, probably missed it, but thought I'd share what I did with an Eshopps 1000.

My Discus 120g planted aquarium resides next to my couch, so the noise of my previous overflow (Eshopps 800) was really annoying. So upgraded to the 1000 and used the Herbie method, problem solved.

In the overflow itself I have one of the inlets with no standpipe, and the other with a staight 8" pipe. The line with the empty inlet goes into a gate vale (3/4 inch threaded) and goes from the 1" pipe to 1/2 inch. I may add a strainer to the empty inlet, but so far the plastic mesh I added to box inside the aquarium is preventing any of my small tetras from getting sucked in.

The 1/2 pipe takes about 99.9% of the water, the emergency line just drips a bit from water leaking under the standpipe. It only took a few minutes to dial in the correct flow and very easy to adjust if needed. I would not recommend a ball valve, that will be very difficult to adjust.

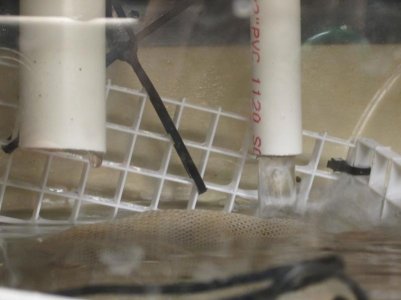

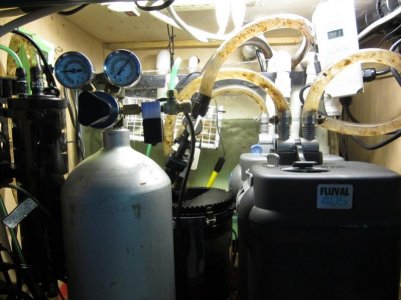

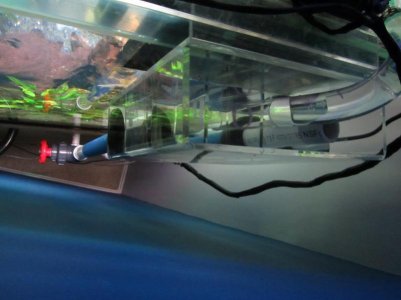

This is much quieter than my previous setup and has the added bonus of limiting C02 loss which is important in a planted setup.... not so much in a reef though. See attached pics on my setup.

Hope this helps someone
