SC Aquariums Owners Thread

[GoGo98102]

Thanks so much for the info. The bulkheads I got was from Homedepot. I would definitely try again when I am ready to drain the overflow. i am gonna get them and wait for a rainy day when I have help!



[postie1686]

Yes for any of you replacing the bulkheads if you go to the local hardware store most only carry one made for sch 80 and they are larger. i used the ones from eshopps for the sch 40 tubing and they fit right in!



[Underwoo]

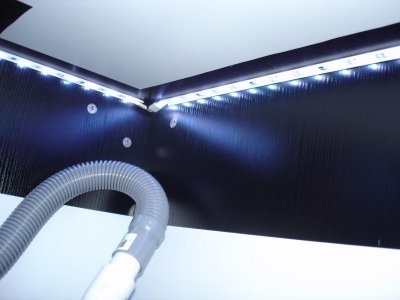

I replace the bulkheads that came with the systems, because they felt cheap.I got the a couple these from AquaCave. 0.5" BULKHEADS, SCH. 40 & 1" BULKHEADS, SCH. 40. Just finish putting in some LED lights for the sump area.



[Underwoo]

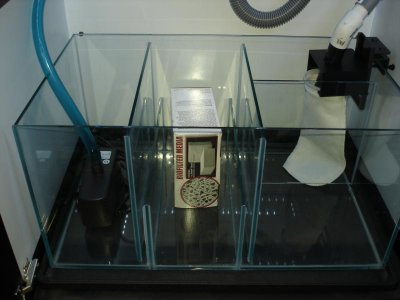

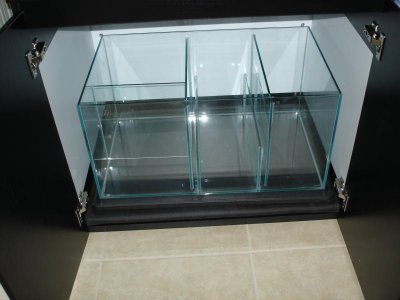

Hey booyaa138, I really like the dim's on the 80 gallon. (32"x24"x24")I always wanted a cube tank, so i went with this tank.(almost a cube!) Anyway, it's been slow going, and still have plenty to do in the sump area yet. Couple things i did in the cabinet sump area. I add the white plastic contact paper to give me more reflextion with the lighting, when have to do maintenance in the sump area. I also have my sump sitting on some R Max form, rap with a Anti-Vibration Pad, and the sump itself is on a Dog Crate, to keep some of the water from getting onto the bottom of the cabinet. Will keep posting photos of my progress.



[greaps]

Hey booyaa138, I really like the dim's on the 80 gallon. (32"x24"x24")I always wanted a cube tank, so i went with this tank.(almost a cube!) Anyway, it's been slow going, and still have plenty to do in the sump area yet. Couple things i did in the cabinet sump area. I add the white plastic contact paper to give me more reflextion with the lighting, when have to do maintenance in the sump area. I also have my sump sitting on some R Max form, rap with a Anti-Vibration Pad, and the sump itself is on a Dog Crate, to keep some of the water from getting onto the bottom of the cabinet. Will keep posting photos of my progress.

What are the dimensions for the middle refugium compartment? water level, length and width?

I'm wondering if a large marine pure block would fit well?

Thanks!



[OceanWolf]

Hey booyaa138, I really like the dim's on the 80 gallon. (32"x24"x24")I always wanted a cube tank, so i went with this tank.(almost a cube!) Anyway, it's been slow going, and still have plenty to do in the sump area yet. Couple things i did in the cabinet sump area. I add the white plastic contact paper to give me more reflextion with the lighting, when have to do maintenance in the sump area. I also have my sump sitting on some R Max form, rap with a Anti-Vibration Pad, and the sump itself is on a Dog Crate, to keep some of the water from getting onto the bottom of the cabinet. Will keep posting photos of my progress.

Please post pictures of your sump when you have set it up.

Thanks
Onur



[OceanWolf]

Sump Question

I bought a 200W heater to heat the aquarium. 50W ones were not able to bring it up to my other aquarium's temperature. It is currently in the DT. The sump is not operational yet. I have two Koralias and air in the DT.
200W heater is about 13" tall. The mid section baffles are 7". So my constant water level will be 7". I think I need to return this heater if I don't want to keep it in DT.

Anyone have water in their sumps yet? Can you post a picture of the constant water level?



[GoGo98102]

The sump water level is corespondent to the baffle next to it. The water enters the first chamber (highest) is around 9.5" on mine, it goes about half an inch lower with each chamber and eventually at the lowest where the return pump is.

Ps. I have 2x300w heaters in my sump. One set to 80f and another at 78f. The 2nd one doesn't kick in unless the temp drops too low.



[wetWolger]

OceanWolf, I assume the heater is submersible? Why not just lay it on it's side against the bottom of the sump?



[OceanWolf]

OceanWolf, I assume the heater is submersible? Why not just lay it on it's side against the bottom of the sump?

You know, right after I wrote that post, I realized how dumb my question was. :wildone:

You beat me to it. Yes, it will go to the mid section horizontally. It will be below the top of baffle which will make it always submersed.



[OceanWolf]

The sump water level is corespondent to the baffle next to it. The water enters the first chamber (highest) is around 9.5" on mine, it goes about half an inch lower with each chamber and eventually at the lowest where the return pump is.

Ps. I have 2x300w heaters in my sump. One set to 80f and another at 78f. The 2nd one doesn't kick in unless the temp drops too low.

Since I have 200w and 50w ones I will do the same. I also have chiller with a heating port to prevent the racing condition. Two heaters should give me redundancy.



[greaps]

How larger is your skimmer compartment, wondering what fits, unless the supplied skimmer is working really well, and quiet I may look to upgrade in that area. Most reviews on the SCA skimmer are positive, noise is a concern though.



[Underwoo]

I purchase a marine block 8x8x4 some time ago for this build. The only way i could get it to fit in the refugium section is length wise,what was i thinking! Can't return it, any ideas?



[OceanWolf]

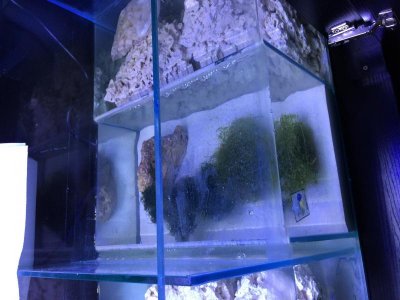

Tested the sump with Herbie, it seems working. I need more time to test. All animals are transferred.



[moondoggy4]

any ideas

any ideas

I purchase a marine block 8x8x4 some time ago for this build. The only way i could get it to fit in the refugium section is length wise,what was i thinking! Can't return it, any ideas?

They can be cut.



[booyaa138]

Tank looks good!



[OceanWolf]

I started to use the sump. 1260 is pretty quiet, but you can still hear the humming. I put some thin packaging foam under it, I will try other options. 4' headloss and the pump is on 90% and my 1/2' Herbie drain is 20% closed. These ball valves are hard to adjust. The valve on the drain is a $25 one, it acts the same with $6 one from Lowes. Flow is pretty nice, the overflow water level is low for my taste, I have falling water noise. If I fiddle with it, the emergency starts flowing. Stupid ball valve, can't fine tune it.

Next my sca302 skimmer will go in. I thought using my Aquamaxx hob-1 but it would be small.



[Smite]

66g SCA

66g SCA

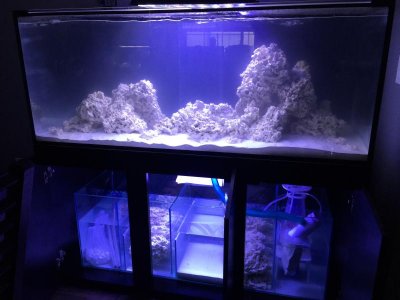

My 66g. I bought this system used. The stand had water damage so I built my own and had a custom sump made. I also upgraded from the sca301 to ConeS skimmer. I built my stand 6" taller since I hate to bend over, I'm now in the process of upgrading the return as it now seems underpowered. I do use it to power my 2 TLF150 reactors also. Lighting: 2 Ai Sol super blues with 4x24w t5 supplementation.



Day - Back when I had MH+t5


Night


Its great to see all these other SCA tanks and setups. New to this forum, but have been using it via google since I started reef keeping.



[wetWolger]

Awesme looking tank, thanks for sharing Smite...I was somewhat considering a marineland 93gal (the 30in width sounded nice, but it's kinda tall, plus clear silicone, plus I would loose saphire, plus it would be more expensive).

Your 66gal just helps in reaffirming that I should get the 66gal as well. I feel like the dimensions offer a lot of possibilities for aquascaping (I like wide tanks, and 20in tall seems like it gives it a nice size).



[Smite]

Thanks wetWolger. Its a great tank and with the sump its about 75-80g. Large enough for a broader choice in fish, but to not expensive to maintain with water changes, dosing ect.

SCA's 80g is pretty cool. Same footprint as the 66g but 4" taller.

I noticed some people found this system noisy. I don't have much to compare it to but it really doesn't bother me. At first I was getting large random gulping sounds, so I backed the drain valve back to 3/4 of the way open and it has completely stopped. I can hear my skimmer and mp40 over everything else.
