Finally My Custom Miracle Build with Fish Room

James404 said:
Great build so far. The fish room is really coming along, looking forward to seeing it progress.
Click to expand...

James404 - Thanks and welcome aboard.

jmsilhy said:
Man this is awesome!
Following along.


Out of curiosity, where do you get your PVC sheets?
Click to expand...


jmsilhy - Thanks and welcome aboard. I had to special order the 3/4 sheets from 84 Lumber. No place around me seems to carry the 3/4 in stock :(. I called a bunch of places and finally found 84 Lumber.

Tuffyyyyy said:
Awesome, awesome, AWESOME! Thank you for all of the pictures.
Click to expand...

Tuffyyyyy - Thanks and welcome aboard...more to come :).

09/26/2017 - Backsplash Finished
The backsplash is finished and sealed and the frag tank is back in place. I also started working on the control panel for the frag tank. I thought I had some extra cords but could not find them. I ordered some new cords to connect the modules and they should arrive by next Wed. My goal it to do a leak test by then. I think it turned out pretty good for what I am going to be doing...LOL. I am still a little up in the air on the edge. I cut tile to put on the ends with my trusty tile cutter but I am not sure if I will add them or not. I have not decided if it looks like it is too much space on the edge or not. You can see in the second picture below.


Backsplash
IMG_9692 by LifeThrough_TheLense, on Flickr

Backsplash
IMG_9694 by LifeThrough_TheLense, on Flickr

Backsplash Up Close
IMG_9695 by LifeThrough_TheLense, on Flickr

09/28/2017 - Frag Tank Updates - WIP

I am getting very close to being able to put water in the frag tank. While working on my frag rack for the frag tank I convinced myself I needed a mini lathe. I chose to make the legs for the frag rack from 1/2 CPVC. It seemed like a great idea at the time until I started making legs. I had to use my Dremel and do each one by hand. After three or four of them I had the feel of it and was able to do them pretty quickly. I removed about 1/4" of the material so that i could fit into the egg crate and support the frags. I like the way it turned out and may end up painting it but for now its done.

Plumbing has also been completed. The only thing left are small things like adding thread sealant on the loc-line nozzles and figuring out the height of the water in overflow section. I am trying to use BeanAnimal style so we will see how it works out. There is not as much height under the stand as I thought so there are two quick 90 degree turns which from my research could be a problem. We will see :).

Legs
IMG_9699 by LifeThrough_TheLense, on Flickr

Frag Rack
IMG_9700 by LifeThrough_TheLense, on Flickr​

09/29/2017 - Cycling of Rock - WIP

My cheap salt came in and I hauled some water from the basement up to the garage. In hind site I should have cured the live rock in the basement. Carrying water from the basement to the garage sucks! I mixed up 50 gallons of salt water in the salt water mixing station. With all the bends in the plumbing the water pressure is not a great as I thought it would be. As a result of the low pressure I may scrap the internal octagon I had planned on using. It may be something I add later so we will see. It's been so long since I cured rock from scratch I am not looking forward to it at all. I threw some flake food in each container and will probably add some shrimp later to get the process really going. I did not add a heater yet since the garage stays pretty hot. I put the trash can lids on each trashcan and crossed my fingers.​

10/03/2017 - Frag Tank - Wiring

I tired to calculate the number of outlets I will need for my frag tank and it started to increase more than I initially thought. I may have to scale it down to be more basic.

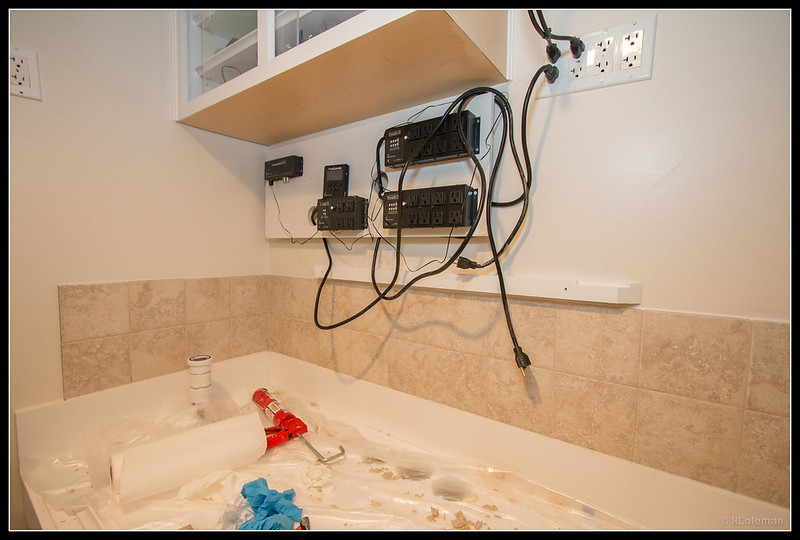

Since I know cord lengths were not going to reach all the way to the control panel I added 8 outlets under the tank. All the outlet ends cords terminate into a box I built and then the plug ends are ran through a hole in the top of the table. I used foam to "plug" the hole so the cords don't move. In the picture to the left of the gray box you can see the 1-1/2" PVC pipe I used to run the cords through. I used a coupling on the top side and so far it seems like this may work out well. I caulked the PVC pipe in place in case there is a water spill so no water would drain directly down to the wires. I now have 8 individual controlled outlets that I can just plug into the corresponding Apex outlet

Under Frag Tank Wiring
IMG_9702 by LifeThrough_TheLense, on Flickr​

10/04/2017 - Frag Tank - Bean Animal Plumbing - WIP
I finally finished the plumbing and added some RO/DI water to the frag tank. This was my first leak test for the frag tank as well so I am happy to report there are not leaks. I have to do some more fine tuning but I think I should be able to make the overflow pretty silent. The tricky part is since it's internal the water from the weirs make a crashing sound and trying to adjust the pipes to the right height is harder than I had thought. All in all it looks like the pump I am using is too powerful as the majority of the sound is coming from the water entering the sump. I will probably have to to t-off my pump and feed the water back in the sump in order to reduce the amount of water being pushed into the display or get a smaller pump. For now I am going to see if I can come up with a way to make the top quieter and then work on a solution

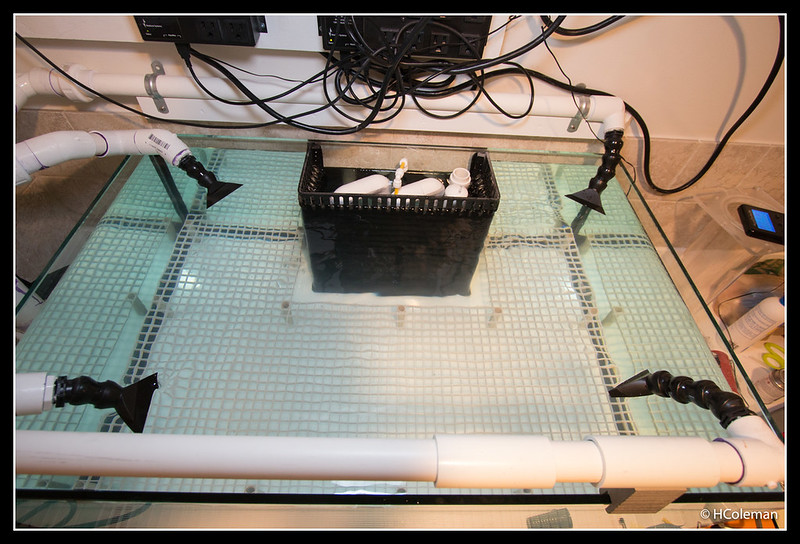

Top Down
IMG_9709 by LifeThrough_TheLense, on Flickr

Overflow Box
IMG_9711 by LifeThrough_TheLense, on Flickr

​

10/06/2017 - Main Control Tank Panel - WIP

Today I managed to create the box I will use for the main control panel. I marked out in painters tape where the panel will go on the wall. Currently its 34" W x 28" H. I forgot my camera in the basement while I was working in the garage so I will post a picture on my next update of what the frame will look like. It will open from the top or side or maybe I will use a french cleat like the frag tank. I am still trying to figure that part out :(.


Main Tank Control Panel
IMG_9707 by LifeThrough_TheLense, on Flickr​

Awesome build! Where are you in MD? I'm in Millersville and have a 315 gallon system with fish room. Noooo where near as nice as yours :)

sdweller said:
This looks like an awesome project !
Sea Dwellers
Click to expand...

Thanks sdweller!

Flatrack01 said:
Awesome build! Where are you in MD? I'm in Millersville and have a 315 gallon system with fish room. Noooo where near as nice as yours :)
Click to expand...

Flatrack01 - Thanks. I am in Capitol Heights MD. I am still adjusting to not having 3 great places to buy corals and fish within 30 mins of me from living in VA. Did you end up doing a build thread? Mine is small compared to some others but it works for me...LOL. I think we all want more space!

nightOwl said:
Thanks sdweller!



Flatrack01 - Thanks. I am in Capitol Heights MD. I am still adjusting to not having 3 great places to buy corals and fish within 30 mins of me from living in VA. Did you end up doing a build thread? Mine is small compared to some others but it works for me...LOL. I think we all want more space!
Click to expand...

Haha yeah I hear ya. I did not do a build thread strictly out of laziness, but I have always considered doing one after the fact because I'm constantly tweaking things.

You should check out Fintastic Aquariums in Frederick (yep, its outside of 30 minutes lol). Its a small store but they have really nice stuff there and are great to work with.

Flatrack01 said:
Haha yeah I hear ya. I did not do a build thread strictly out of laziness, but I have always considered doing one after the fact because I'm constantly tweaking things.

You should check out Fintastic Aquariums in Frederick (yep, its outside of 30 minutes lol). Its a small store but they have really nice stuff there and are great to work with.
Click to expand...

Flatrack01 - I may add them to my field trip list. I looked at their website and the prices are pretty good!

10/10/2017 - Curing Rock - WIP

I finally got around to checking my ammonia levels in the my trash cans for my rock that is curing. The ammonia kit said 8 but I think its higher...LOL. My garage stinks so I know something is happening. The cycle is officially underway. I may need to do a small water change to help move the process along. I also ended up buying some bacteria to add once I move it in the main display. When I looked back at my pictures of my first aquascape I realized I wanted another large rock piece or two. ON my latest BRS order I asked for large Pukani. The customer service rep I spoke to was great and told me he would go to the back and make sure I had a large piece or two. When they arrived I was very impressed. They are large with a great variety of nooks and crannies. One thing I will have to do is to bleach this rock for sure. There is some dead material on the rock that is not fully dry so even though it is dry rock there are still some things decaying. The rock also has that smell of rock that has been out of water for a while but not completely dry.

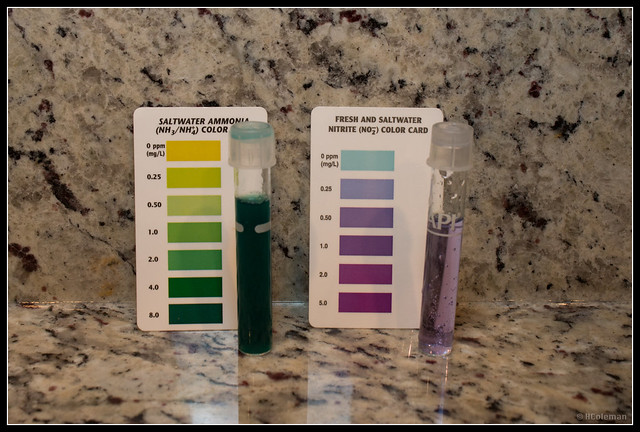

Ammonia Test
IMG_9714 by LifeThrough_TheLense, on Flickr

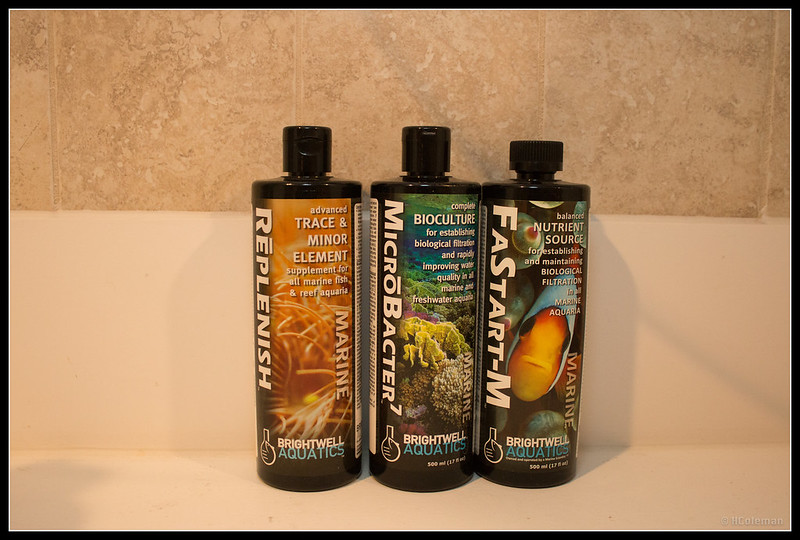

Bacteria
IMG_9729 by LifeThrough_TheLense, on Flickr

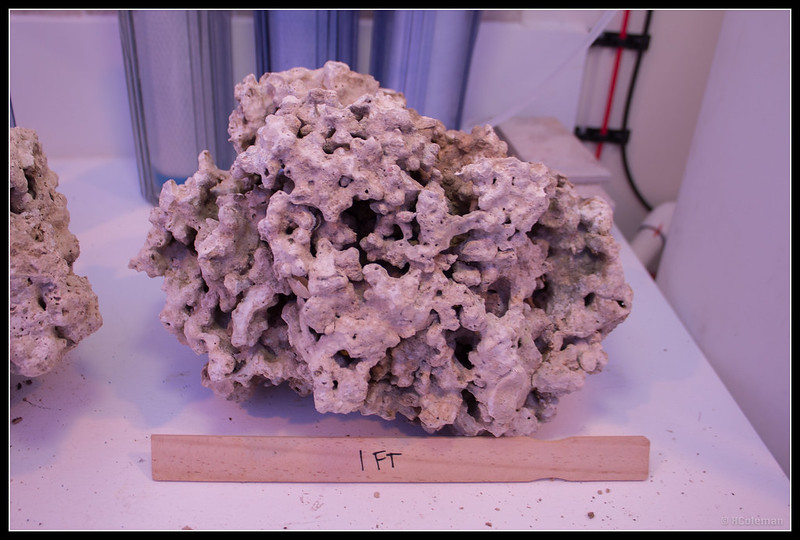

Rock 1
IMG_9731 by LifeThrough_TheLense, on Flickr

Rock2
IMG_9732 by LifeThrough_TheLense, on Flickr
​
10/11/2017 -Control Panel -WIP

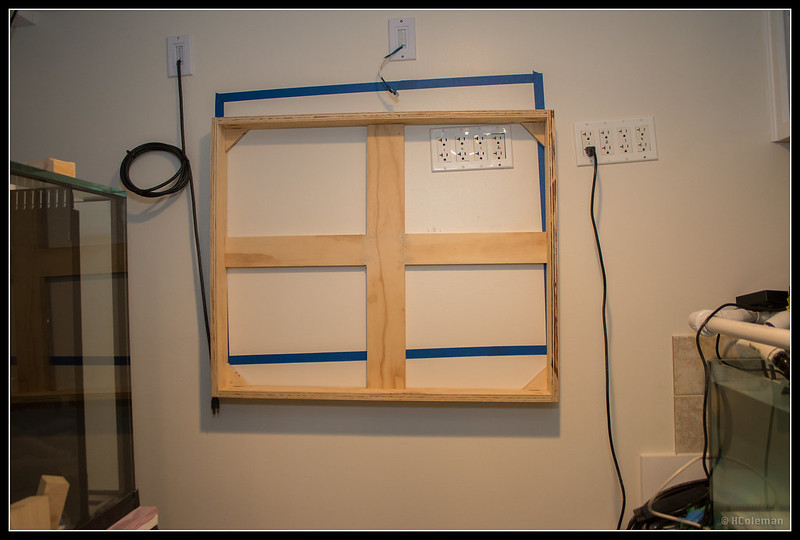

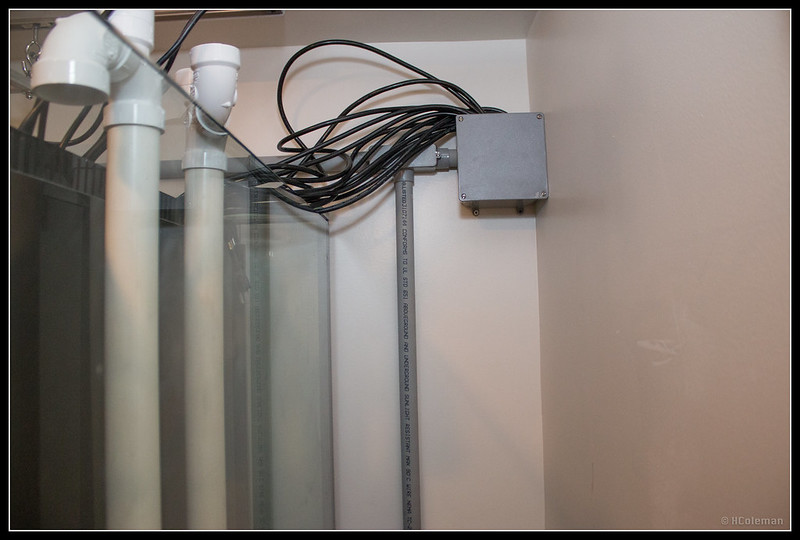

I made some updates to my control panel. I added a center brace and some corner braces. I will find the studs in the wall and then mark them so I can attach the unit after I prime it. On the left side I plan to cut two areas that I can feed the cords in. My cords have a variety of lengths. I have six fairly short, four really long, and two medium length cords. I will have a total of 12 individually controlled outlets.

Control Panel
IMG_9716 by LifeThrough_TheLense, on Flickr

12 Outlet Junction
IMG_9717 by LifeThrough_TheLense, on Flickr
​

10/13/2017 - RODI Upgrades

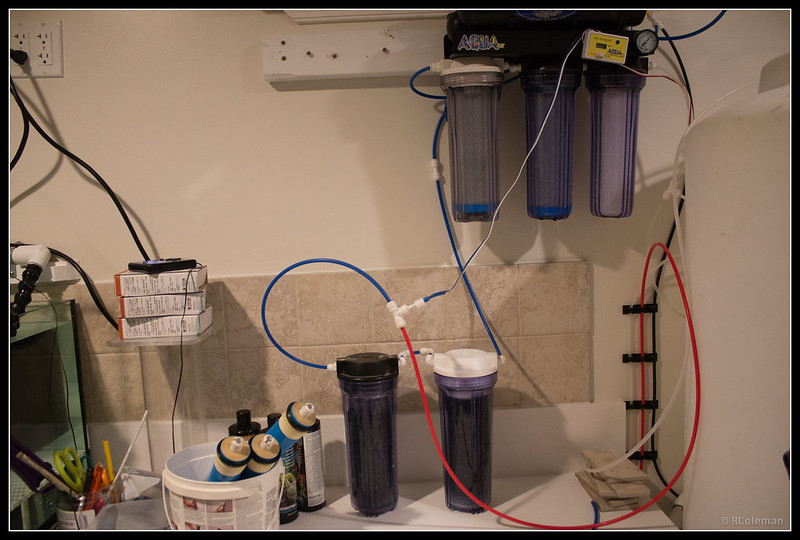

Maryland water sucks! My TDS meter is running around 240 -260 on the incoming side. I noticed no mater how many times I was changing the filters my TDS on the out line was still ranging around 12 or higher and what ever they are treating the water with killed most of my corals in my temp set up. It looks like a few may hang in there but for the most part they are on the decline. The filters below on the current system are from only 2 weeks of use.I am not sure if it is related to the chemicals the water company is using or if the DI resin is old. Either way I decide to add a second DI resin chamber. Turning my 5 stage into a 6 stage RODI unit. I thought my existing bracket could hold two chambers but the holes would not line up for two units. Temporarily I am just going to have then on the back table. I removed the old membranes and as I suspected they were swollen. When I talked to the water company they mentioned they had flushed the system in the last few weeks due to some type of algae and sediment bloom. I found a place on Ebay that sold DOW membranes for a pretty good price. So I decided to change out the membranes as well. I essentially replaced all the internals of my unit and added an additional chamber. The unit ran so much better when I flushed it for the first time.

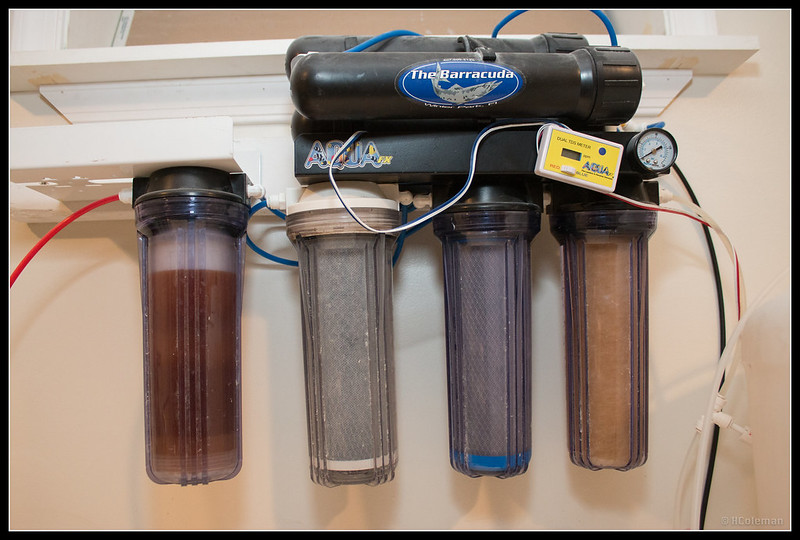

Current System
IMG_9730 by LifeThrough_TheLense, on Flickr

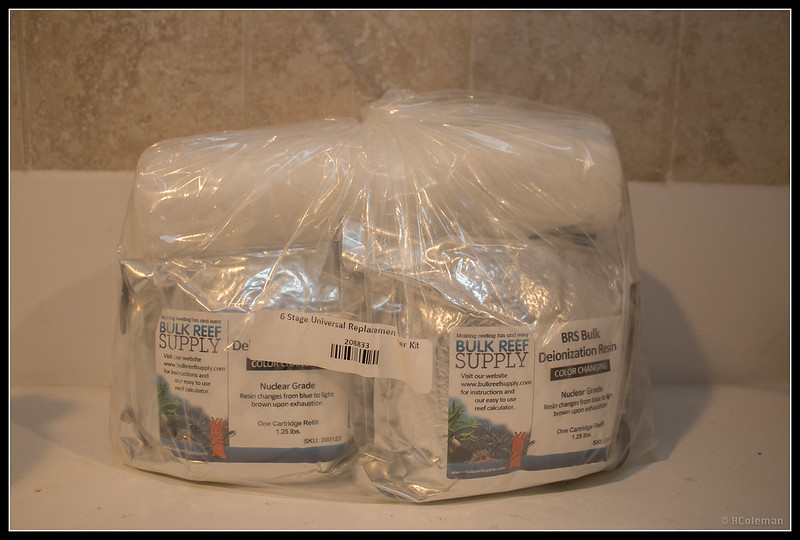

New Chamber
IMG_9724 by LifeThrough_TheLense, on Flickr

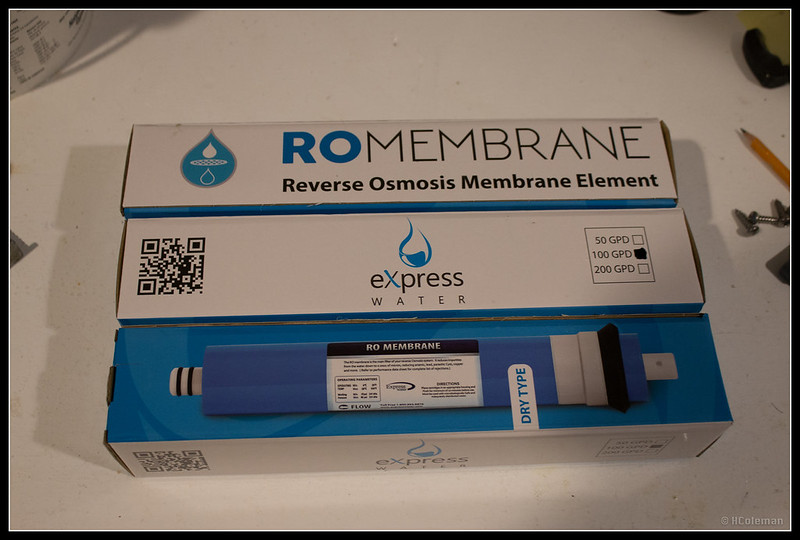

New Membranes
IMG_9739 by LifeThrough_TheLense, on Flickr

​

Main Tank Plans

So with the main tank I have a few things I need to get finished before my rock cures. I am hoping that the two new pieces of rock will be adding will allow me to make another structure or make the structure a little higher or just give me some other options.

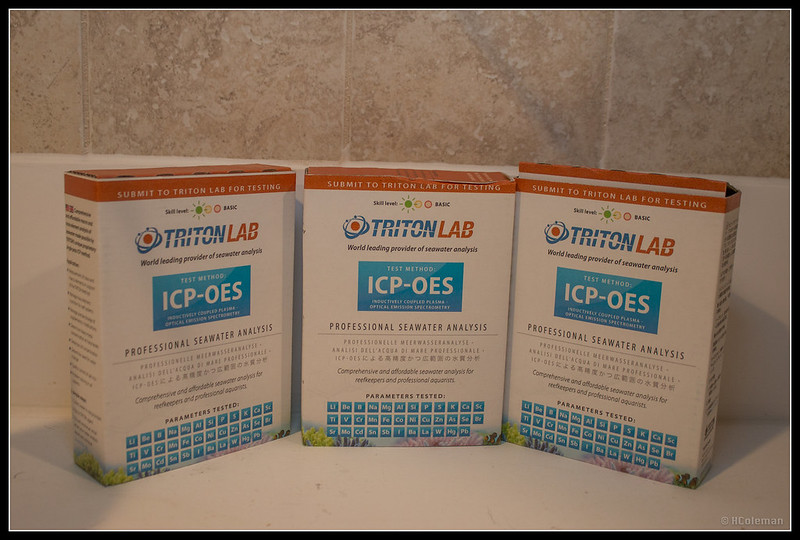

I invested in three Triton water tests after talking to the water company and not feeling like the water quality in my area will be resolved for a while. According to them there are a few factors that may be causing my issue. Ranging from water main breaks, flushing the system due to algae blooms or sediment bloom. They also mentioned because our neighborhood is fairly new it could be a plumbing issue. My plan is too send off one test when the tank is officially up and running then one every 2 months.

I also ordered some Epoxy Resin for my planned platform for my rock structure to sit on. From previous tanks rock that sits in the sand becomes a detritus playground. the platform will be made from egg crate and foam then covered in sand and epoxy.

Water Test
IMG_9726 by LifeThrough_TheLense, on Flickr

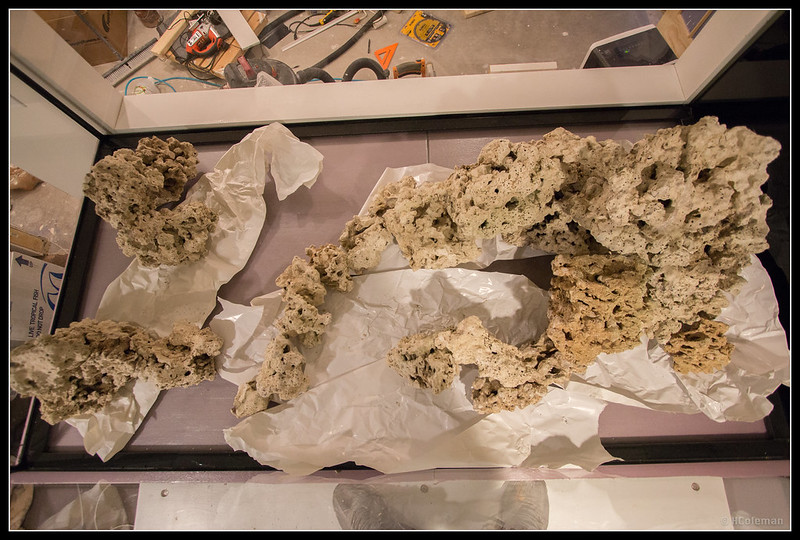

Planned Aquascape
IMG_9542 by LifeThrough_TheLense, on Flickr
​



This picture is making me lose my balance! :spin1:

Are the tape marks or the wood pieces level?

MarylandTang said:


This picture is making me lose my balance! :spin1:

Are the tape marks or the wood pieces level?
Click to expand...

MarylandTang - LOL the tape marks are level. I had it hanging on the edge of the outlet cover while I figured out how far my short cords would make it...lol.

This tank looks amazing!!! I have a question about the display! are you going to paint/cover the back of the tank so you do not see the fish room? Or is your intention to see through to the fish room? Overall this is amazing again LoL!

eonflux123 said:
This tank looks amazing!!! I have a question about the display! are you going to paint/cover the back of the tank so you do not see the fish room? Or is your intention to see through to the fish room? Overall this is amazing again LoL!
Click to expand...

eonflux123 - The back of the tank is also starfire so I do not plan on painting it. I figure when I am in the fish room I can look at the corals too :). On my last set up my drainage was on the back side and it was painted. The only time I could look at the tank was from the front and side. One of the cool things about having people over is showing the fish room and now they can see the corals and fish from three sides. Another great thing about it being able to view into the fish room is my wife can see I am not ignoring her and actually busy in "my" fish room...lol.

I have been pretty busy with other stuff besides the tank so not a lot of progress has been made. A few small things are underway or done so here is the list

  • Created a cord management track for main tank lights (probably will change this)

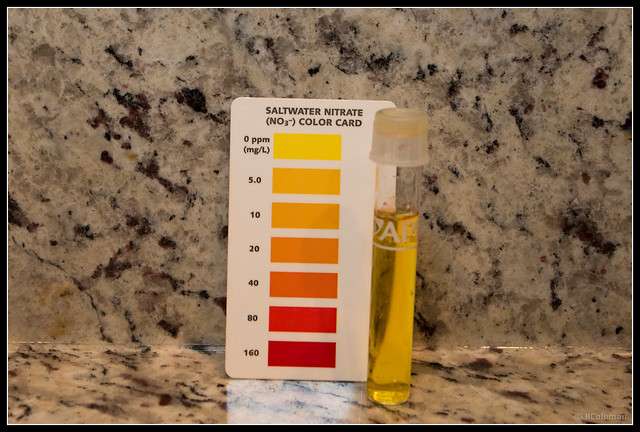

  • Both containers of cycling rock have zero ammonia
  • Nitrite is climbing in both containers
  • Nitrate is well underway as well in both containers
  • As with all Pukani rock phosphates are starting to present themselves (once the nitrite is zero I will start removing the phosphates)
  • Control board the main tank is almost done
  • Plumbing finished on the frag tank ( I have some issues with the herbie overflow)
  • Cycling of the frag tank is underway


10/17/2017
IMG_9754 by LifeThrough_TheLense, on Flickr

10/18/2017
IMG_9755 by LifeThrough_TheLense, on Flickr

10/18/2017
IMG_9760 by LifeThrough_TheLense, on Flickr
