measurements for Tunze 6095

[Felixc]

I am building a new tank and incorporating a false wall to hide these 6095. IN doing so I need some precise dimensions for the pump. Can anyone help me out.

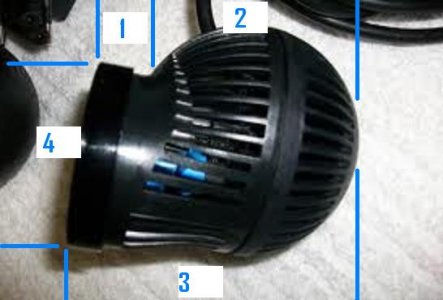

This picture below depicts four measurements I need in millimeter. Please and thank you



As well a fifth measurement with the c-bracket and magnet attached to pump.



[rvitko]

Do you want dimension 4 with the protective grid on or removed? I will need a bit of time as I need new batteries for my calipers, I plan to pick some up tomorrow. I cannot 100% guarantee my measurements, so if this is 100% critical you would be best off buying a pump to take all measurements from as needed.



[Felixc]

Do you want dimension 4 with the protective grid on or removed? I will need a bit of time as I need new batteries for my calipers, I plan to pick some up tomorrow. I cannot 100% guarantee my measurements, so if this is 100% critical you would be best off buying a pump to take all measurements from as needed.

with the grid on. I really don't need it to 100%, +- 1mm will do. thank you.



[rvitko]

I was able to get some of the measurements before my battery died totally. I am using a Vogel slide calliper and it measures to the hundredth mm but I rounded to the nearest mm as dimension 2 for example is near impossible to get 100% accurate as the jaw cannot reach the back of the ball and the neck of the pump so I had to sight it and dimension one also requires a bit of sighting in to the transition from the ball to the "pipe".

1)14mm
2)69mm
3)83mm
4)53mm



[Felixc]

Thanks Roger, just one more measurement please, from the pump output to back of magnet with c-clip attached. Tape measure will be just fine.



[rvitko]

117mm



[Felixc]

Thanks again Roger for taking the time to get me these measurements. Can you tell me if the 6095 is compatible with all of the Tunze controllers, including the single controller?



[rvitko]

Yes, it is. The only exceptions would be the 7093 which is from pre 2000.
