Meanwell LDD driver: for those who want to dim to 0 using Arduino

Well, it's $2.50 per board at a package of 10. As it stands, I am creating the files, but it's up to everyone to get the boards printed. If someone wants to buy a handful and distribute them, that's fine with me, but as of now I'm just creating the boards.

Let me make a few and see what I can do. Keep in mind you'll have to use the right terminals or they won't fit. I normally have to build those parts too.

BTW, thanks for the LDD library, saved me a some time.

Okay....

Looks like a 5x5 board fits 4 drivers well. If I really tried I could probably fit six, but it wouldn't be pretty. I wanted to start with this and I can make variations of this one fairly easy.

Manufacturer part numbers for Phoenix connectors:

2 pos - 1751248 (linky)
4 pos - 1751264 (linky)
8 pos - 1751303 (linky)


Attachments

  • 4xLDD Breakout BRD.png
    4xLDD Breakout BRD.png
    11.5 KB · Views: 13
  • 4xLDD Breakout SCH.jpg
    4xLDD Breakout SCH.jpg
    34.4 KB · Views: 15
I am fine with 4 driver boards, that looks pretty clean!

Can we save the .png and send that in or do we need another file type? And, in a pm, whom do I need to make the order with?

Okay....

Looks like a 5x5 board fits 4 drivers well. If I really tried I could probably fit six, but it wouldn't be pretty. I wanted to start with this and I can make variations of this one fairly easy.

Manufacturer part numbers for Phoenix connectors:

2 pos - 1751248 (linky)
4 pos - 1751264 (linky)
8 pos - 1751303 (linky)
Could J1 and J2 be combined so a guy would only need to buy one type of connector(2-8's), or an 8 and a 6?

I'd be interested in couple boards, they'd certainly look a lit nicer than the proto boards I have now.
I did just notice a flaw in this whole idea. I was thinking that 8 drivers might fit nicely on a 10x10 board and was shocked to read that 4 would fit on a 5x5. Then I clicked on the image and learned something new. LDD-H drivers have an entirely different pin layout and are much larger than than LDD-L's.
EDIT: would it be wise to an extra Vin- terminal to accomodate the PWM-?
Could J1 and J2 be combined so a guy would only need to buy one type of connector(2-8's), or an 8 and a 6?
Combining them into an 8 would facilitate adding an extra Vin- or two.

Last edited:
oh yea I just noticed that... we need that layup with LDD-H's (those are what I use)

I also like the 8 pin strip ideas, because if you do 2 vin and 2 vout it makes daisy chaining boards easier

LDD-H's use a total of 9 pins... they have 2 vin+ 2vin- pwm dim 2 vout+ and 2 vout- :)

Can we save the .png and send that in or do we need another file type? And, in a pm, whom do I need to make the order with?

No, they would laugh at you. You have to send gerber files to the board house. Once the layouts are finalized, I can provide those.

Could J1 and J2 be combined so a guy would only need to buy one type of connector(2-8's), or an 8 and a 6?

Yes. I thought about using a 6 pos to begin with, but thought it would be easier to identify the ports this way. Easy to modify if we want.

I did just notice a flaw in this whole idea. I was thinking that 8 drivers might fit nicely on a 10x10 board and was shocked to read that 4 would fit on a 5x5. Then I clicked on the image and learned something new. LDD-H drivers have an entirely different pin layout and are much larger than than LDD-L's.

I used LDD-Ls on a previous fixture, which is why I chose those. I wasn't aware anyone was using the LDD-Hs.

Combining them into an 8 would facilitate adding an extra Vin- or two.

I don't follow. Why would I need to add a Vin-? I think he just wants a single 6 pos instead of a 2 and a 4. Less parts. If an 8 was used for some reason, the terminals could be left unused.

EDIT: would it be wise to an extra Vin- terminal to accomodate the PWM-?

Well, the driver and controller need to share a ground, so that might not be a bad idea. I didn't think of that when I threw this together, of course, I would probably ground the controller to the supply GND anyways. Ground is a ground. Usually.

oh yea I just noticed that... we need that layup with LDD-H's (those are what I use)

I also like the 8 pin strip ideas, because if you do 2 vin and 2 vout it makes daisy chaining boards easier

LDD-H's use a total of 9 pins... they have 2 vin+ 2vin- pwm dim 2 vout+ and 2 vout- :)

I'll take a look at the data sheet, but why does it have those extra pins? What added benefit do they provide?

LDD-H's can be ran up to 56v input compared to 36v input of the LDD-L, but as for the additional pins I really don't have a clue.

the H's are just more flexible overall though, the additional voltage allows them to run more LED's per string as well too, plus you can get an LDD-H in 1000ma

This is a 10x5. I believe itead lets you go up to 10x10 for the larger boards. This board would cost the same as a 10x10. I could probably double this up and put 8 drivers on a 10x10, but I don't know how useful that is to people. Like I said, I'll just make a bunch and whoever want to use what, go for it.


Attachments

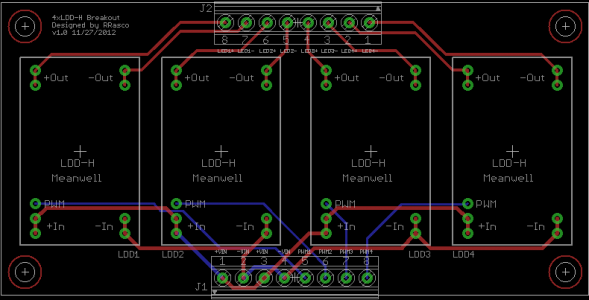

  • LDD-Hx4 Breakout BRD.png
    LDD-Hx4 Breakout BRD.png
    16.1 KB · Views: 12

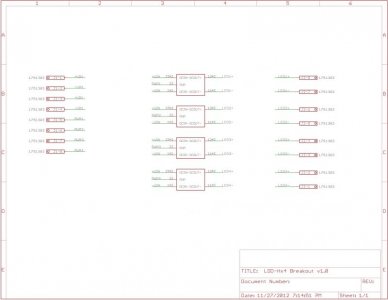

  • LDD-Hx4 Breakout SCH.jpg
    LDD-Hx4 Breakout SCH.jpg
    35.1 KB · Views: 12
rrasco if you were anywhere near me I'd totally get you something really special.. like a cupcake or a pack of twizzlers :-P

rrasco, I am just getting ready to build a large DIY LED system over my 600g FOWLR system and plan to do 8 channels of lighting so I would be real interested in what you come up with. Please let us know as you get closer. Thanks

rrasco if you were anywhere near me I'd totally get you something really special.. like a cupcake or a pack of twizzlers :-P

LOL...

rrasco, I am just getting ready to build a large DIY LED system over my 600g FOWLR system and plan to do 8 channels of lighting so I would be real interested in what you come up with. Please let us know as you get closer. Thanks

What drivers were you wanting to use? LDD-D or LDD-H? I can make a board with 8 drivers if you need one.

Wow I started a factory! There better be some free boards coming in the mail for me as a payback for discovering those drivers. :rolleyes:

I am wanting boards of 6-H
To keep it simple, for a GB, How about 4-L, 8-L, 4H, and 8 H. Thats it.

For six LDD-H, you're going to need at least a 10x10 board. I can make the layout for you if that's what you need.

http://imall.iteadstudio.com/open-pcb/pcb-prototyping.html

22 bucks plus shipping for 10 of those 5 x 10 boards.. I don't think I could buy everything to make a few boards at home that cheap lol

I didn't even know they offered those sizes or color options. I'm so used to going to the istore before the imall was there. Even though my last order I placed through the istore. I'm distracted easily.

rrasco would you just provide us the gerber files and we would order what we need directly or you looking to organize some sort of group buy? Thanks Chris
