Prisitine plumbing thread!

[Adkins.its]

Had to do it. [emoji3]
Your plumbing looks great. Nice setup

Lol I agree with you. I notice it every time I open the door. I'm like how did I not notice?!

I should just grab some acetone and clean it off.



[robert s b.]

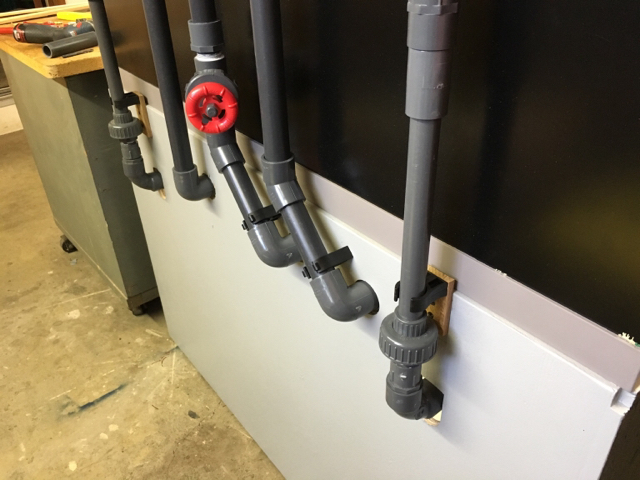

Just did a dry fit, before I mark and glue.



[805reef]

Just did a dry fit, before I mark and glue.

Looks nice! Any chance you can post a pic of the side of your tank /stand? It looks like you made the stand a big longer to accommodate the drain pipes. I'm thinking of doing that with me new build.



[dcforester1]

Just did a dry fit, before I mark and glue.

Looks good, what size/type sump is that? Do you have a pic from the front?

Thanks Derek



[robert s b.]

I'll post another pic, when finished. Just got done cutting out my shelves and ready to get them painted.



[Chetna]

Wow must be nice to have show pieces above and below. Good job



[robert s b.]

Here's my build thread if you guys want to follow along....

http://reefcentral.com/forums/showthread.php?t=2484584



[naterealbig]

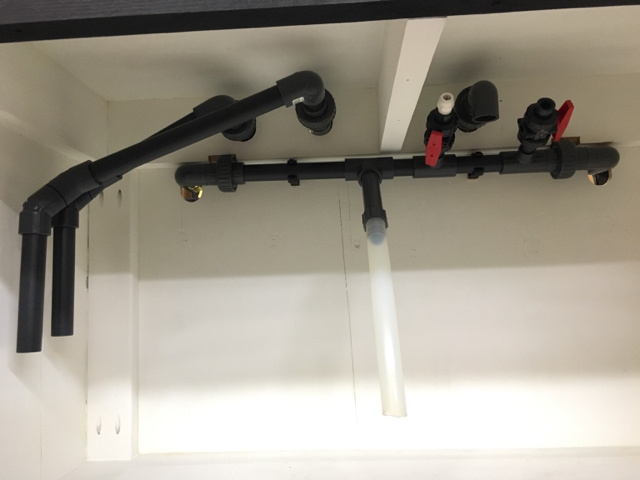

Some handy work I finished up today. This is the sump (20L) for my custom 65 display.

If you're interested, check out my build thread here.



[Bent]

Mine probably does not count, but wth.

Might look a little better if I would clean up the sump room/man cave.



[mfinn]

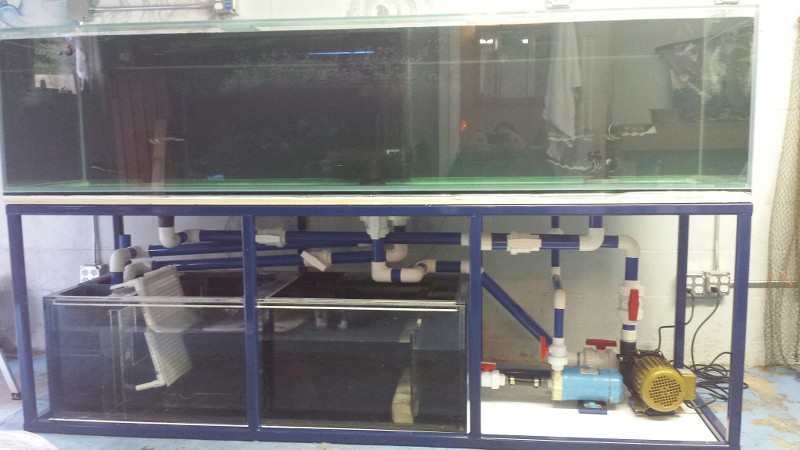

It's not the prettiest, but I had fun plumbing this custom 275 for a friend.

I wish I had removed the temporary skimmer stand out of the way before this picture was taken.
The blue pvc we got at bulkreefsupply.com was fun to work with.



[rjjr1963]

Following.



[don_chuwish]

Getting ready to plumb my 120G with Synergy Reef Overflow and a 40B sump/refugium. Lots of great examples in here to learn from. I'm curious to hear from the experts - what sort of process do you go through to come up with the best layout? There's so many different ways to plumb a system, but keeping it simple and elegant is an achievement!



[FFrankie]

For me simplicity is the key. Don't over think it



[FullBoreReefer]



[don_chuwish]

I can't even begin to follow what all that does!



[FullBoreReefer]

I can't even begin to follow what all that does!

Bahahaha. Hard to explain to be honest. Return pump is plumbed into a drain line, and a "recycle" line so I can clean and filter just the sump. Then the manifold for my ATS and reactors are ran off a seperate pump.



[don_chuwish]

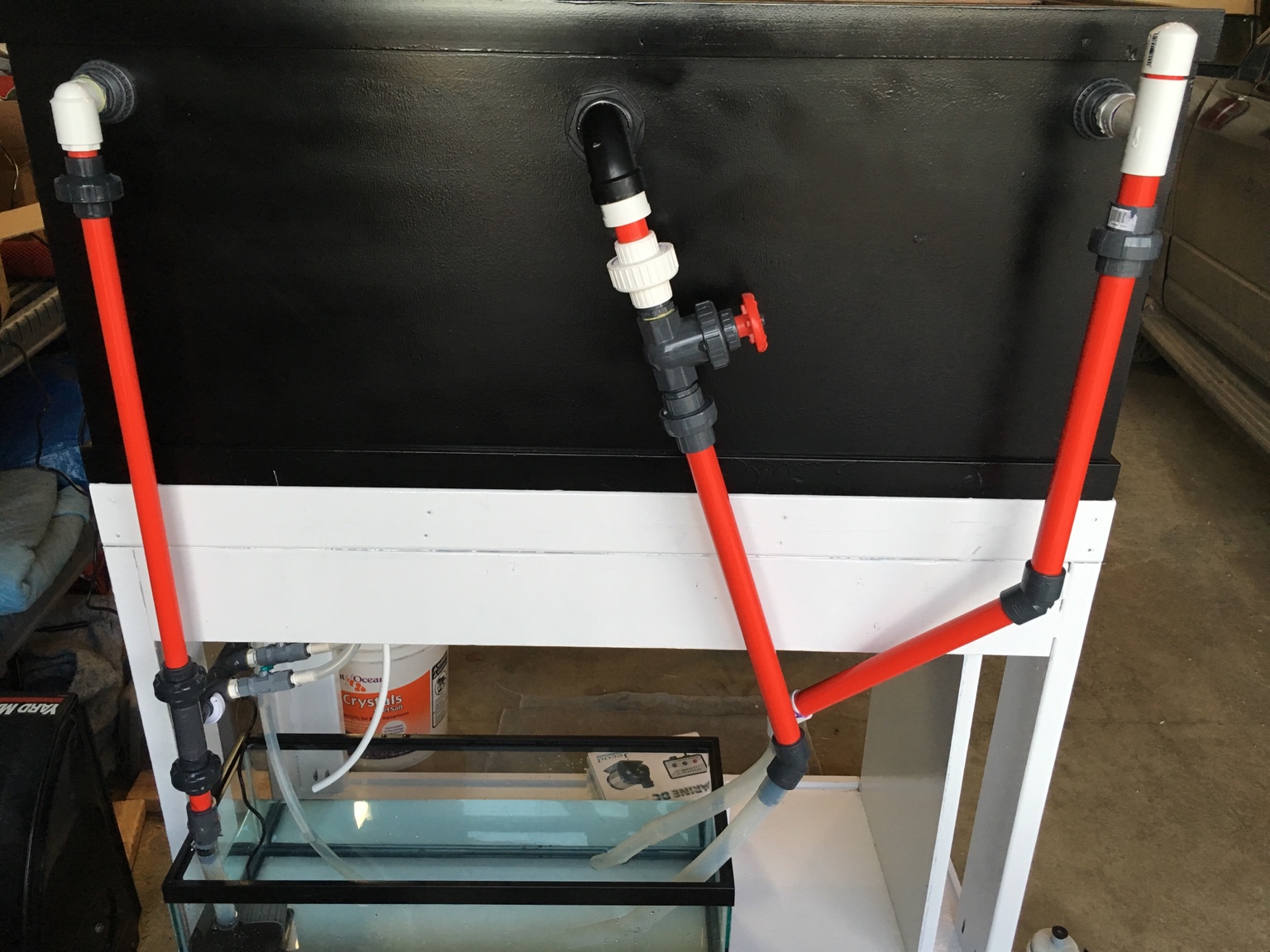

A work in progress, but so far so good:



[FlyingFishSKYw]

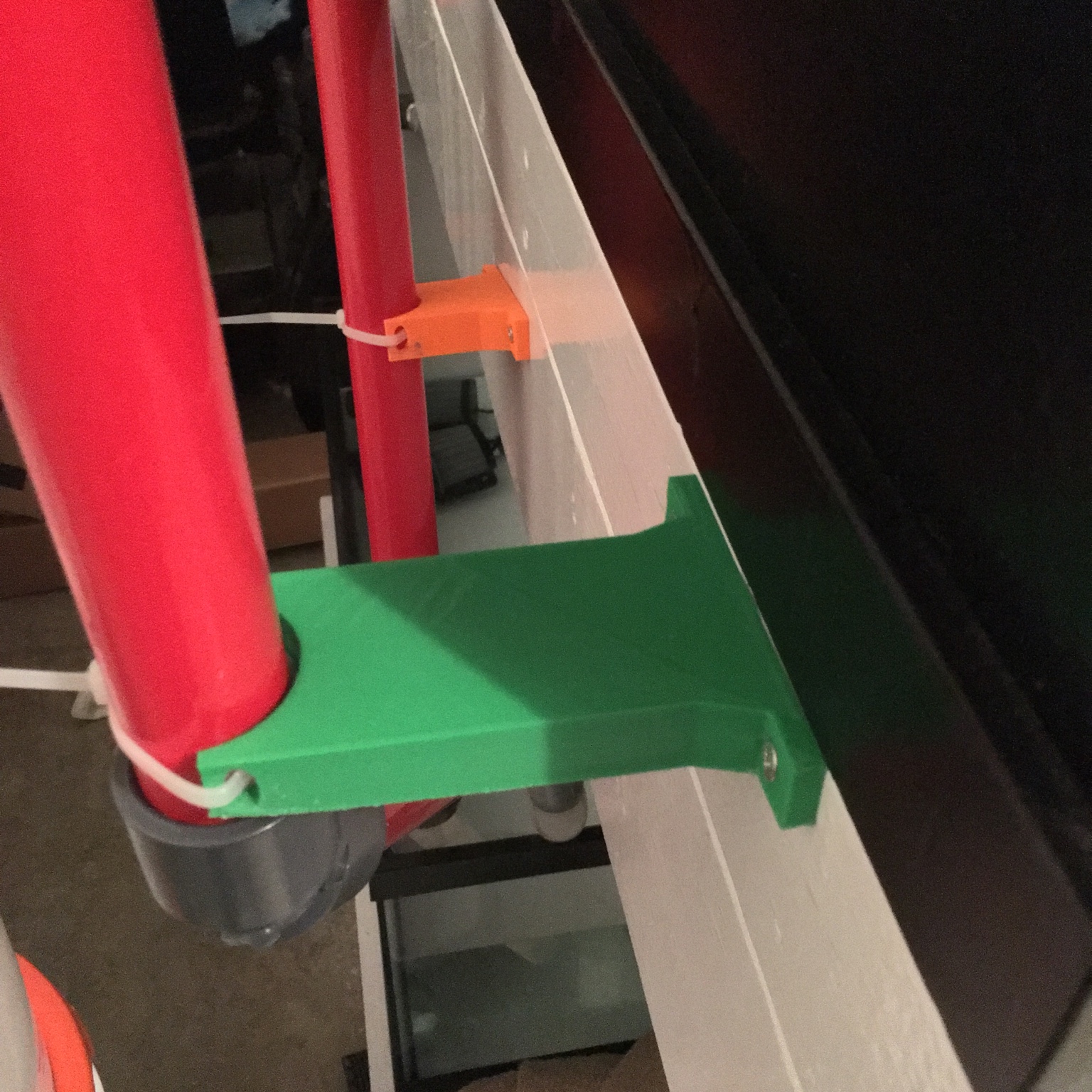

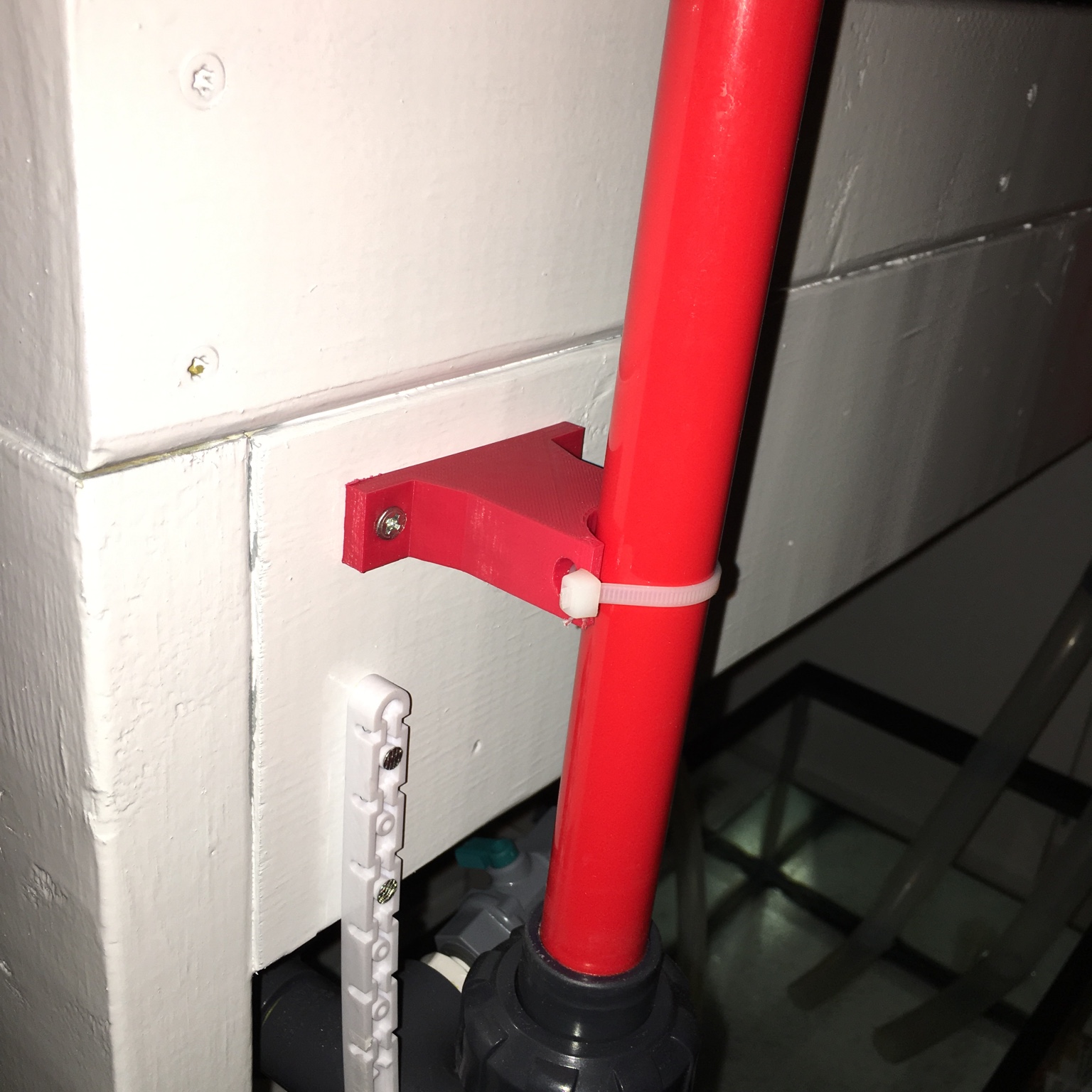

Borrowed a friend's 3D printer and made my own PVC supports:



[karimwassef]

are they hollow?



[FlyingFishSKYw]

I don't remember what the exact fill % is, but it's got a honeycomb structure. These aren't supporting any weight. They're more like stabilizers than actual supports.
