ATI Powermodule Hybrid Club

Hey guys,

I have an ATi hybrid LED 8xT-5 unit, I'll need new bulbs in the next few months, whats a good bulb combo and LED intensity mix for this unit?



It's over a 40X20X20 SPS tank

Sorry for the double forum post.

If i run only 7 hours of full light my tank will brown in few days.. I use minimum 10 hours of full light ..now i'm pushing up color and brightness and using 12 h.. If corals bleach with more light time the problems are others not the light.. Trust me..





Full growth on my sps.. Only a little bit dark for my eyes

Beautiful.... Love it. What bulbs are your running Zon? I just got my 36" 8xt5 installed above my tank. I will post pics shortly. Love it. Ran it through the preview and I love the light combo.

I am being a bit conservative :headwalls: with power levels. Ch1 is 75% for 8 hours and ch2 is 60% for 6 hours. Ramp is 1 hour before and after. Leds are set to 50 max 20k for 10 hours. Bulb choice is 5 b+ and 3 C+. I might do 4 B+ and 4 C+. 8" ABL The combo looks like 14-16k

Has anyone ran there t5s at 100% out of the gate?

Any suggestions :)

Once acclimatised you can run your light as follows depending on tank size, layout and coral focus (ie SPS dominated etc):

T5's run both channels at 100% for around 7 hours a day. With 30mins to 1 hour either side for ramping up.

LED's: At peak time
RB: 100%
B: 50%
W:35%
R: 10%

Run them also around 7 hours with ramping up either side, concentrating on Royal Blue towards the evening etc.

If your rockwork is that like a minimal look with lots of open sandbed, you can run the outer T5 banks for a bit less time, but if you are utilising the main parts of tank with wall to wall corals then run the inner and outer T5's same amount of time.

This is just a brief guide to give you an idea...each tank is different and your corals may even bleach with 7 hours of full light...so the most important thing is to watch your corals and adjust a little per week.

HTH. :)

Hi Sahin,

Thank you for the input :) I will post a picture so you can see the type of rock structure I have. Tank is 36X24X22 SPS dominated.

i use 12 tubes 6 FM ultra royal blue 2 Blue plus 3 aquascience duo 1 KZ fiji purple

led are 60% of general power for 10 h 1 h sunrise 1 h sunset and colors are RB 100% B 70% white & red totally OFF


Just change a few T5s and having second though about it. stil trying to mimic 400 Radiums that i missed badly..
what you guys think?
front to back:

ATi B+
GIESMANN SUPER ACTINIC
GIESMANN lagoon blue
KZ GEN-2

LED

KZ FP
KZ GEN-2
ATI C+
ATI B+

Last edited:
Just change a few T5s and having second though about it. stil trying to mimic 400 Radiums that i missed badly..
what you guys think?
front to back:

ATi B+
GIESMANN SUPER ACTINIC
GIESMANN lagoon blue
KZ GEN-2

LED

KZ FP
KZ GEN-2
ATI C+
ATI B+
alternate b+ & C+.

you mean use only b+ and c+ , four of each?

Well, I am running 5 b+ and 3 c+. I too am coming from a 250 MH (over driven) Radium 20k bulb. Mine we crisp white with a ting of blue. Whit the 5/3 combo cranked to 100% I think its close. Maybe just a bit bluer.

Well, I am running 5 b+ and 3 c+. I too am coming from a 250 MH (over driven) Radium 20k bulb. Mine we crisp white with a ting of blue. Whit the 5/3 combo cranked to 100% I think its close. Maybe just a bit bluer.

Have you tried Purple tube or some other ?.

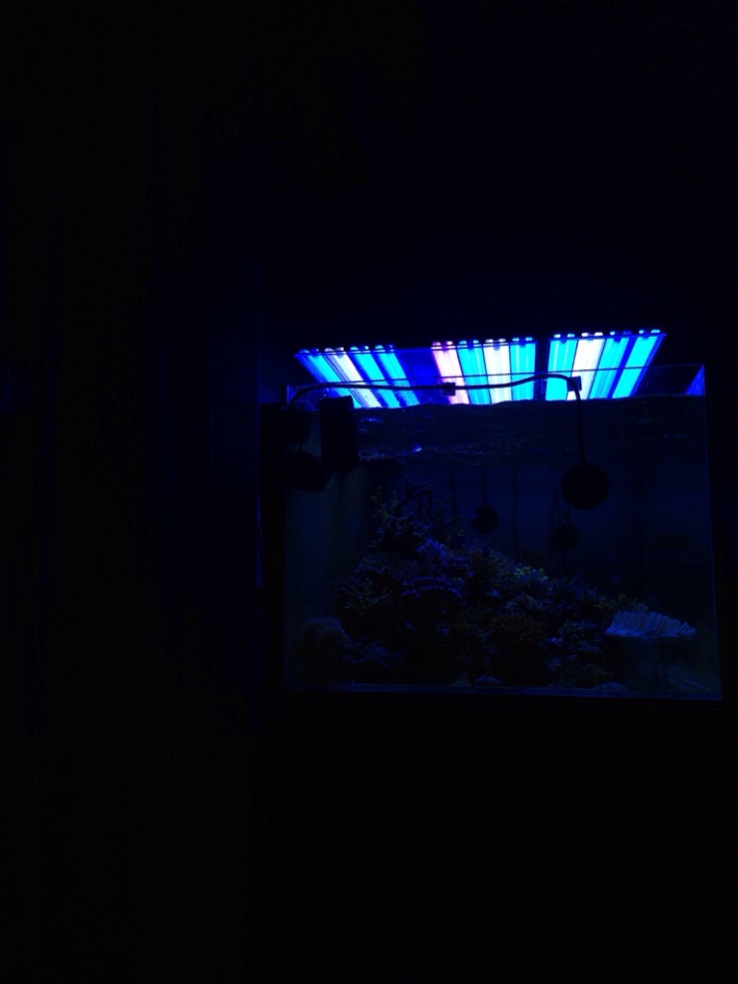

Hi guys, After my post receiving the light I wanted to show the setup at the moment.




WOW!!! I love your tank! Looks beautiful. Such a nice, sleek setup! :beer:

You have the same light unit as me. Do you have a build thread on RC or elsewhere? You can PM me the website if it is on another forum.



This is another beautiful reef setup. Love the work on the stand/cabinet. I am following your thread. :beer:
