How to build a CO2 regulator for your calcium reactor.
- Thread starter alanle
- Start date
200psi but was thinking that I would replace both gauges with new ones. So far it has been working great though.
Attachments
I write from Uruguay, I use a translator for the language, I hope it is understood. Is that link valve good enough?
https://www.marinedepot.com/needle-valve-for-co2-regulator
https://www.marinedepot.com/needle-valve-for-co2-regulator
It should be fine. You don't really need a lower reading gauge if everything is dialed in.
Sent from my iPhone using Tapatalk
Hoke 1300 Fittings
Hoke 1300 Fittings
Hello, I purchased a Hoke 1300 (hoke 1335g3ymm) meter valve and need help finding the fittings to connect it to the 1/8 male side of the Swagelok (SS-4-RSE-2) Fitting Elbow.
The Hoke 1300 uses a 3mm Gyrolok, what fitting do I need to attach it to the elbow?
In the original post Swagelok SS-400-R-2 is used to attach it to the Co2 tube, but not the elbow side.
Thanks in advance!
Hoke 1300 Fittings
Hello, I purchased a Hoke 1300 (hoke 1335g3ymm) meter valve and need help finding the fittings to connect it to the 1/8 male side of the Swagelok (SS-4-RSE-2) Fitting Elbow.
The Hoke 1300 uses a 3mm Gyrolok, what fitting do I need to attach it to the elbow?
In the original post Swagelok SS-400-R-2 is used to attach it to the Co2 tube, but not the elbow side.
Thanks in advance!
Last edited:
Can you post a picture of the parts layout? Gyrolock and Swagelok ferrules are interchangeable.
Hello Alan - the metering valve in this ebay link is the exact one as mine. I'd like to connect it to the 1/8 male side of the SS-4-RSE-2 Fitting Elbow.
https://www.ebay.com/p/13017018883
https://www.ebay.com/p/13017018883
You will need Swagelok SS-400-R-2 and Swagelok SS-2-TA-1-2
Thanks!
If it's for the male side of the other fitting then you need SS-2-TA-7-2
yellojello
New member
[MENTION=296993]alanle[/MENTION] curious... after all these years and building these, what is your current setup and how long have you been using it? Or do you just keep switching around like new cars for fun?
salty joe
Active member
I just want to chime in...I followed alane's advice and couldn't be happier! While the quality parts are not dirt cheap, compared to the cost of a high quality reactor setup, it's a bargain. I set the bubble rate and a month later it's still the same. Nice.
I had a reactor with cheap/junk parts. What a hassle.
Thank you alane!
I had a reactor with cheap/junk parts. What a hassle.
Thank you alane!
Alan, I have the solution for swagelok 1/8 tube port, it is a more sturdy adapter, It is in the picture of above post.
It took a while before I start making new co2 system again, actually about 4 month, did research and looked for parts and new solutions...
And during that time I've got what I wanted, have more info to fill a new metering valve selection thread, posted in TPT. I also try to post the info here but not eligible to start a thread, yet.
It took a while before I start making new co2 system again, actually about 4 month, did research and looked for parts and new solutions...
And during that time I've got what I wanted, have more info to fill a new metering valve selection thread, posted in TPT. I also try to post the info here but not eligible to start a thread, yet.

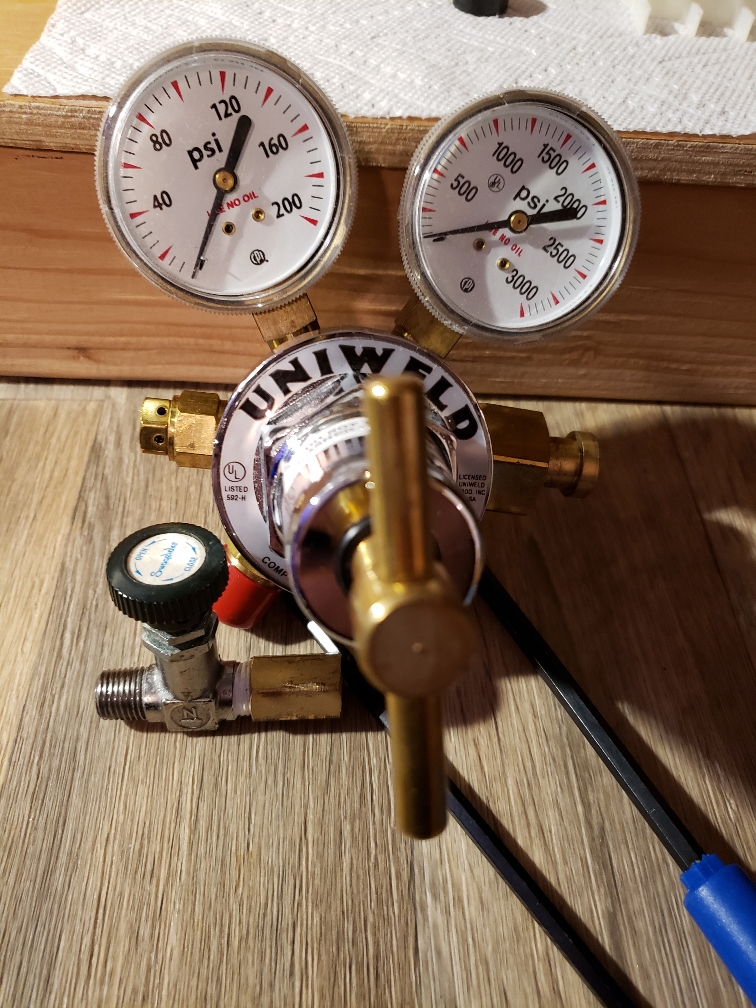

I just received my new regulator today. I also have an older Swagelok valve. My question next is the output on the regulator is not 1/4"...maybe 3/8? Can anyone tell from the pic of the regulator? It's a Uniweld RH3018. Also...will I need to change it the low pressure meter? Thanks!
Sent from my SM-N960U1 using Tapatalk
Sent from my SM-N960U1 using Tapatalk
the output port is 1/4 female npt, you need to take out the adapter fitting(red plastic cap in the picture).
the low pressure meter, I assume that you are talking about the low pressure gauge, you can leave it on the regulator.
and that model of swagelok/nupro bonnet needle valve is not good to use, it can't handle the low co2 flow control.
the low pressure meter, I assume that you are talking about the low pressure gauge, you can leave it on the regulator.
and that model of swagelok/nupro bonnet needle valve is not good to use, it can't handle the low co2 flow control.
