How to build a CO2 regulator for your calcium reactor.
- Thread starter alanle
- Start date
oreo57
Well-known member
You mean power supply?
Any 24v DC will work as long as it's capable of 166mA or more...could be 100A/24V DC won't matter
https://www.burkert.com/en/Media/plm/MAN/MA/MA6014-UL-EU-EN.pdf?id=MAN0000000000000001000010164ENO
LQT
Active member
I think he's trying to avoid what happened when he he used an over rated power supply...
So this isn't supposed to happen...
Sent from my SM-N960U1 using Tapatalk
Yes exactly. I don't want a fire. So with that said, I found one that is 24v dc and 0.76mA and wired that up. It gets hot but other wise seems to be ok. It's been running for about 6hrs or so....I keep checking on it because now I'm paranoid.
Sent from my SM-N960U1 using Tapatalk
Sent from my SM-N960U1 using Tapatalk
oreo57
Well-known member
That's not from too much current....per se
https://www.womackmachine.com/engin.../finding-the-cause-of-solenoid-coil-burn-out/
Ac coils are hooked to circuits capable of 15A yet the coils are still rated at 4W (36mA) or so..
Can't tell if that was an AC or DC coil in that photo.. so best to read about both.
oreo57
Well-known member
Nothing wrong w/ a little paranoia..
considering the use a coil rated for continuous duty is what you want..

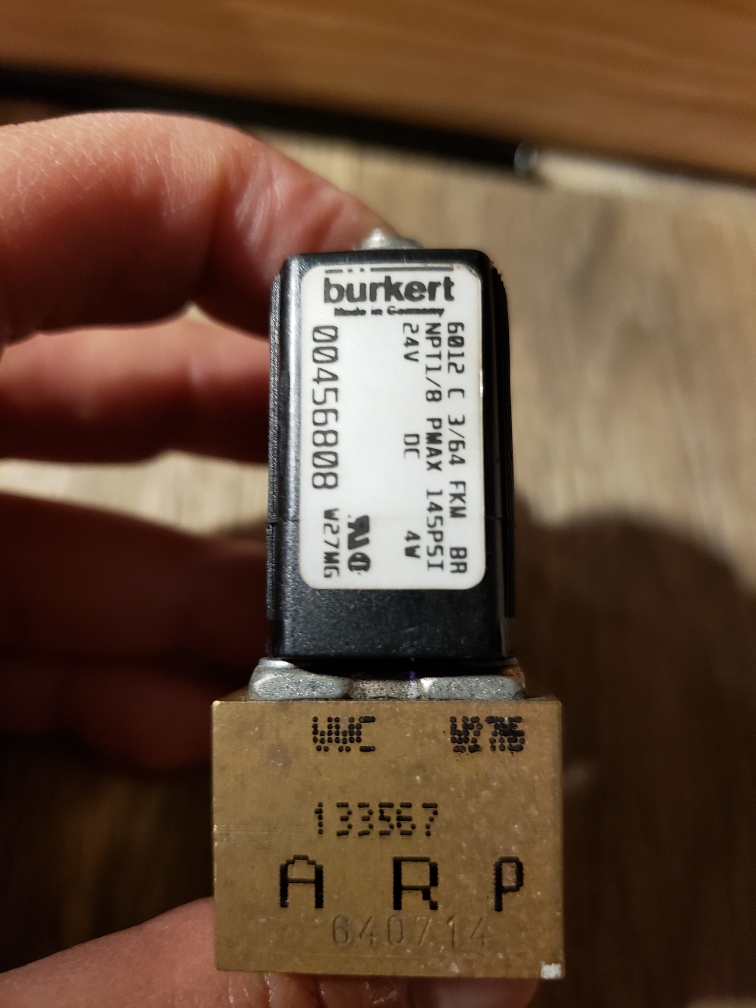

So I just want to confirm I get the correct adapter for the solenoid. Here is the solenoid I have
Sent from my SM-N960U1 using Tapatalk

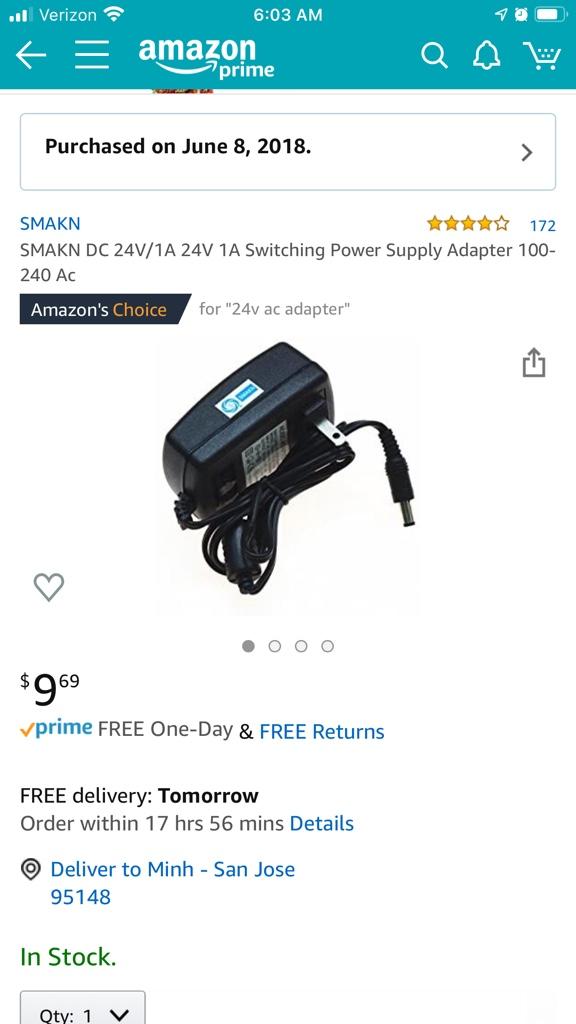

This power adapter will work.
Sent from my iPhone using Tapatalk
alan, try the high precision flowmeters, they are really good, the exact flowrate and flow volume (flowrate/time) into the aquarium are known.
I've already make the full range of high precision flow meter data base thread in The planted tank, you can search for them according to the info that I published.
I've already make the full range of high precision flow meter data base thread in The planted tank, you can search for them according to the info that I published.
flowerfishs
New member
love the build. really recommend the flow meter. I love mine.
here is another system that I built recently, I used a Key instruments(now belongs to brooks) high precision flow meter on the system, it is for oxygen but I calibrate the co2 flow rate under different pressure, I can provide the calibration data if you need it. The valve on the flowmeter is low flow needle valve, the capacity of fine adjustment is between a swagelok S series and a M series.
This flow meter is still available in good quantity, you can get it while they are still available, really cheap because normal price is into the $300 a piece, search key word is "adjustable Oxygen flow meter 100 psig"
good luck.
This flow meter is still available in good quantity, you can get it while they are still available, really cheap because normal price is into the $300 a piece, search key word is "adjustable Oxygen flow meter 100 psig"
good luck.
I'm new to this but I've read through most of this thread 3 times.
I want to build a basic dual stage regulator to use on my 180g tank and I guess I still just don't know what I'm looking for on ebay. Can someone help point me at a few active listings so I can have a good reference to work from?
If it helps, I'm in Ontario.
I want to build a basic dual stage regulator to use on my 180g tank and I guess I still just don't know what I'm looking for on ebay. Can someone help point me at a few active listings so I can have a good reference to work from?
If it helps, I'm in Ontario.
oreo57
Well-known member
Being in Canada changes things..
Anyway just an example:
https://www.ebay.com/itm/Harris-Mod...a=1&pg=2047675&_trksid=p2047675.c100010.m2109
Things to note.. 1)Ignore gauge numbers.
This part reg has a max output pressure of 50psi. Hard to see but w/ zoom it's on the body label. Some may state it but BEST to know the body sticker.
some sellers just state a gauge number.
Victor regs usually use gauges on the low pressure side that have max scale of 2x the real limit for example.
https://www.ebay.ca/itm/Harris-9296...r&brand=Harris&_trksid=p2047675.c100005.m1851
2)Inlet is not for CO2. Unless you are lucky most aren't
One w/ CO2 inlet BUT max outlet pressure is low.. Fine if one doesn't use atomizers..15psi max..
https://www.ebay.ca/itm/Victor-Mode...302523?hash=item4b6f53af3b:g:6oIAAOSwTWZblyaX
Little bit beat up but ..well..
victor models use an A,BC,D scale going from low to high pressure output.
As you can see "A" is 15psi.
New..for fun:
https://www.airgas.com/p/VIC0781-3569
3)General condition or age. Hard to detrmine w/out knowing models and years made.
4)Many regs are just re-branded.
5) There are 2 types of CGA threads if you need to replace them. Most common is 1/4npt. Try not to get a reg w/ the other one..
Your shipping customs are a bit odd. Not sure you can get regulators through if shipped from the US.
Rarely see one from Canada to Canada either..
Last edited:
oreo57
Well-known member
Really? Replaced gauges, arrow on nut and nut showing def. used..
Seller states "can't tell if its new or used"
Max pressure out 25psi..
CGA's been changed.. per PTFE tape on it..
Can be returned at buyers cost (shipping would be equal to the cost of the unit)
Granted could be just fine. All used is a crapshoot.
I know you can do better..
Oh yea.. shipping from US to canada adds about $40 Canadian to most of them.
Used Toronto zip code for fun.
Last edited:
don't know if you are still looking for a pressure regulator.
there is one from canada, condition look ok.
254289681388
good luck.
ajhudson15
New member
Hi Alan. Water dog from clay-boa sent me over here to possibly purchase a dual stage co2 regulator from you and I wanted to get in touch on that if possible. My number is (812) 606-1638 if you would line to text Me
Alan,
This is a nice collection bro. You didn't get the Chell mechanism valve?
Sent from my iPhone using Tapatalk
