... Please advise. I moved the cap with the airline over to my open channel at the recommendation of BA, and while the system is "working," the open channel is taking on a ton of flow. My siphon is operating smoothly. Just wondering why there's so much turbulence in the open channel. See attached photos.From left to right: emergency drain(dry), open channel, full siphon. Note the massive amount of air/ flow from the open channel. Perhaps I need to valve down my return pump? ( which id rather not if I don't have to)
Thanks in advance.

Have you tried slightly opening the valve on the siphon line to allow more water through the siphon and less through the OC? In my experience, it can be tricky to find the sweet spot where the flow is 'just right'. On mine, it took a lot of playing with the ball valve on the initial setup.

Because I'm too lazy to look back , what size bulkheads and pipes are you using, and what is the flow rate of your pump?



[uncleof6]

Overgrown:

Shut the system down. Open the valve on the siphon all the way, open the valve on the pump all the way. Make sure you drain lines are clear. Remedial perhaps, but check the system over for any differences between this one and previous systems.

Power up the system and watch what happens. When the water level in the overflow box drops suddenly, close the valve on the siphon till water just flows in the open channel. E.G. rather than try to mess with any current adjustment, start over from scratch.

Assuming you have not made any of the classic implementation errors, it sounds to me like it is just way out of adjustment, and the open channel is just behaving like the Durso it is: over 1/4 full of water, and it goes turbulent.

If there is a pump size issue, it will become pretty obvious with the system being overpowered (e.g. water level just keeps rising.) I doubt that is the issue here.

Rybren: Next time out, try a gate valve rather than a ball valve. Ball valves are great for on/off operation, but flow control should be accomplished with gate valves. That is what they are for. Although with just a course adjustment (ball valve) this system will work, you will find it easier to find the sweet spot with a gate valve.



[Overgrown]

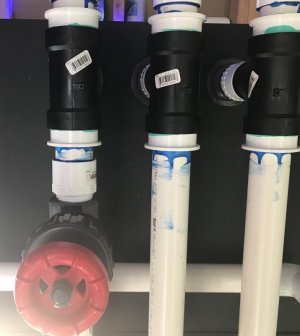

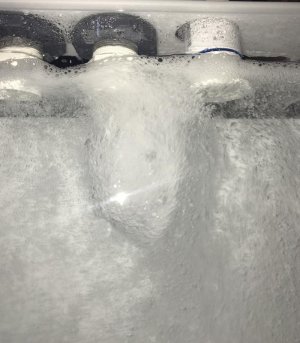

Uof6: I just did the troubleshooting you suggested. Let it stabilize and here's where I'm at. I've got a solid strong siphon(pictured far right) but as you can see still have a ton of turbulence out of the open channel(middle) although it's pulling substantially less water than the full siphon. Which is hard to tell from the photo. Something else possibly noteworthy is that the open channel settles down when I remove the airline from the push lock valve on top of the cap. Why would that be?

Both my open channel and full siphon terminate about a half inch into the water line.



[uncleof6]

Uof6: I just did the troubleshooting you suggested. Let it stabilize and here's where I'm at. I've got a solid strong siphon(pictured far right) but as you can see still have a ton of turbulence out of the open channel(middle) although it's pulling substantially less water than the full siphon. Which is hard to tell from the photo. Something else possibly noteworthy is that the open channel settles down when I remove the airline from the push lock valve on top of the cap. Why would that be?

Both my open channel and full siphon terminate about a half inch into the water line.

Where is the water level in the overflow box? Possibly in transitional flow, (heading to siphon) kink/partial occulsion in the air vent line... just thinking...



[Overgrown]

Where is the water level in the overflow box? Possibly in transitional flow, (heading to siphon) kink/partial occulsion in the air vent line... just thinking...

Water level is right at the top of the downturned Ell's. And the bottom of the downturned Ell's is approx 3/4".(not sure if that's relevant)

Only other thing I can think of is that I couldn't find 1.5" street 90's so I went with 2" ABS and used transition cement and adapted them down. Is it possible that the 2" street elbows to the 1.5" are causing issues?



[Overgrown]

Water level



[Rybren]

Rybren: Next time out, try a gate valve rather than a ball valve. Ball valves are great for on/off operation, but flow control should be accomplished with gate valves. That is what they are for. Although with just a course adjustment (ball valve) this system will work, you will find it easier to find the sweet spot with a gate valve.

Yeah, I found out the hard way :headwallblue: and I'm too lazy to swap the ball valve out. It works fine once you get the hang of it.



[uncleof6]

Water level

You had a thought that the flow rate from the pump was too much for the system. A 1.5" line with a 1.5" bulkhead, should be able to handle ~3000gph (allowing 20% friction loss) @ 24" drop, and greater @ 36" drop. Of course a 1" bulkhead would allow ~1500gph at a 24" inch drop. The question here would be what size bulkheads, and what is the pump actually able to send up to the tank (realistically; not what the flow chart says.)

The sanitary tee really does not have much affect on the system. It reduces turbulence in the tee as opposed to a "straight" tee, but that is about it. Larger size, and ABS should not have any negative impact. Just FYI: Spears, Nibco, and Charlotte Pipe and Foundry make sch 40 DWV sanitary tees in 1.25" and larger. A wise LFS that caters to high end reef systems, should carry them, but they generally do not. There is a LFS in San Diego that used too, not sure if they still do. They (1.5") are pretty easy to find online however, but not at Home Depot or other big box stores.

Remedial refresher:

As you know, a Durso, (what the open channel is) only handles so much flow. For a 1.5" it is somewhere around 350gph or so, or the point when the water in the pipe occupies more than 1/4 of the cross-sectional area. So, the reason the open channel is bubbling away is because it is handling too much of the total flow.

The balance needs to be shifted back toward the siphon, and the flow reduced in the open channel. To reduce the flow in the open channel, you need to lower the water level in the overflow, with the valve on the siphon, which will in turn increase the flow in the siphon.

Water in the open channel will start flowing when the water level reaches the point in the TEE, where the water heads down. This point is BELOW the horizontal center line of the elbow. (perpendicular to the main drain line.) The only height needed above that is that which will maintain the siphon. E.G. prevent a vortex from forming at the siphon inlet.

As you can tell, I am still seeing this as an adjustment issue, because so far I haven't heard of or seen any issue with the drain system itself, other than too much flow in the open channel. That equals water level. (or siphon not fully started, related to implementation errors that I am not seeing in this case.)



[BeanAnimal]

I prefer a discussion.

Please take it someplace else

This thread is for the support of an overflow system.

Tangential comments and cordial conversation are certainly welcome, but outright debates where one or more participants are willfully committing intellectual dishonesty for the sole purposes of perpetuating a fight are not.

If you guys want to beat each other up over RE sumps, then by all means start a thread in the equipment forum and go for it.



[Ted_C]

Extra Drain on the Beananimal design

Extra Drain on the Beananimal design

Update on my overflow:

I know this is no longer a beananimal design since I have 4 drains instead of three - but I did want to send shoutouts out to Bean and Uncle for all of their great advice in this thread. That advice allowed me to achieve my desired result of a silent overflow with lots of turnover flow in my 310.

My modification to the beananimal design is an extra gated siphon drain to help alleviate what the regular bean animal couldn't handle.

I am running two DC12000's at around 70% of maximum flow. I figure I am getting ~ 4K GPH Turnover. I have been running this since March 11th of this year.

My drains terminate around 3 inches under the surface. I drilled 1/2" holes in the pipe 1" below the water surface to ensure the siphon could start up (Since these are in filter socks - I wanted the pipes to terminate in a smooth surface to not rip up the filter socks so much).

<iframe width="560" height="315" src="https://www.youtube.com/embed/8-NVtOFE4s4" frameborder="0" allowfullscreen></iframe>
