Silent and Failsafe Overflow System

[Sisterlimonpot]

Hello everyone, this is my first post here on RC but i've been reading for a while silently

I wanted to share my project and maybe have some advice about the setup since i have time to change if i made errors or missunderstood how a bean animal works.

Here are the render on how it should be (pardon my poor skills)


So, the 4 red marked pvc joints are going to be on the other side of the glass, so everything will be dropped down few cm (sorry, metric system here in Italy).

- the third pipe is going to be the syphon and will be as close as possible to the bottom of the box.. that is what i understood, to avoid that something could go sucked in (it will anyway, i know)

- the second pipe is the open channel (it's not drilled on top for the vent, this is still a mockup), the vertical pipe marked with the arrow can be adjusted in height as needed.

- the fourth pipe is the emergency, has to be cut down to size, nothing is glued for now.

- the first is the return pipe from the pump, has nothing to do with the rest.

The box is going to be mounted on a rimless tank and siliconed flush on top, the box is not a full coast to coast design since i need extra space on the side, the total height is 18 cm (7") and it's 42 cm wide (16").. the weir is 4cm from the top oh the glass (1.5") and as i understand the waterfall in the box should not be more than 1" (2.5 cm), i think it should be ok like this.

So how should i proceed now? Drill the holes on the bottom of the box and silicone all in place, then fix the syphon in place as it is now and use the valve to adjust the flow right? The height of the emergency should be cut 1" (2.5cm) from the top of the glass, that is not a big deal, but how can i set the height of the open channel?

The valve on the syphon is what is going to set the water height in the box? so the open channel could be cut in relation of this height, or not? I saw some drawnings here way back 100 pages, but some say to leave them on the same height.

Thanks and sorry for my english.

Couple things to add, correct me if i'm wrong, it seems like you're going to silicone the pipes in place, if that's true, I would advise against it. use bulkheads to pass the pipes through the glass.

second, is to ensure that you use a gate valve on your full siphon in order to be able to fine tune the water level in the overflow.



[pigr8]

Hello everyone, thanks for the replys

So progress has been made, i drilled the holes in the glass (measuring where was a bit tricky because they land vertically in the sump and i wanted them i a precise spot) and then build the box, this is the result:

The valve is what sets the water level inside of the box, but the open channel is what determines where the water level is set. U only want a trickle of water going down the open channel. So determine where u want the water level & set the open channel at that hieght, then use the valve on the syphon to get it to that water level.

perfect, that is exactly how i wanted to proceed, thanks for the confirmation.

It sounds like the tank is actually notched for a weir then. If that is the case I would just set that section of the open channel about 1/2" to 1" lower then the weir, then set the emergency 1" above that.

Mmm good advice, after i placed the box on the tank i will probably do so and tweak it later.

Don't glue any of the plumbing inside of the overflow box. It's not needed & u don't want it set in place to where u can't make adjustments or reve the pipes for cleaning or whatever reason.

Yep i'm not going to glue them, only the elbows are because they are cut shorter and have to be supported. The vertical pipes will not be glued so everything could be removed for cleaning, and those are not in definitive lenght and have to be adjusted.

Couple things to add, correct me if i'm wrong, it seems like you're going to silicone the pipes in place, if that's true, I would advise against it. use bulkheads to pass the pipes through the glass.

Nope no silicone will be in contact with pvc, it doesn't stick, there are 2 rubber gromet inside and outside the glass like in the picture.

second, is to ensure that you use a gate valve on your full siphon in order to be able to fine tune the water level in the overflow.

The valve is in my shopping list, it seems no one has them here in Italy, i have to order one in the UK (nearest place) and will be pricey (70$).


Box is finished, i will repost when done/tested but so far everything should be ok.



[Sisterlimonpot]

The valve is in my shopping list, it seems no one has them here in Italy, i have to order one in the UK (nearest place) and will be pricey (70$).

I was having a hard tie trying to source an all pvc gate valve, it seems that they're only used in our hobby, cheapest I found it was off of zoro.com . Not sure if that helps you in Italy or not though.

I always wondered if a better choice of valve for the full siphon should've been a globe valve, they not only allow for fine tuning but they also act as a regulator. Maybe the price plays a big role in that decision.



[88rxna]

5 years of service for my bean animal and all of a sudden the air will not purge out of the primary drain...
Drains are around an inch under the surface in the sump. They are not glued near the sump for easier service and I disconnected the primary a few days ago and I think I broke the air tight seal it may have had? Could this be the source of all of the air not purging creating the air bubbles noise near the display?
Never before have I not been able to clear the air from the system

Sent from my SM-G920V using Tapatalk



[Sisterlimonpot]

5 years of service for my bean animal and all of a sudden the air will not purge out of the primary drain...
Drains are around an inch under the surface in the sump. They are not glued near the sump for easier service and I disconnected the primary a few days ago and I think I broke the air tight seal it may have had? Could this be the source of all of the air not purging creating the air bubbles noise near the display?
Never before have I not been able to clear the air from the system

Sent from my SM-G920V using Tapatalk

possible but unlikely. I would first check the breather hole on the open channel to ensure it's not clogged with salt creep. and move on from there. If it's clogged then the open channel is trying to become a full siphon as well, which will prevent your full siphon to purge. if you outfitted your open channel with a ball valve, close it off and see if you can purge the air from your full siphon. That should point you down the right path.



[88rxna]

possible but unlikely. I would first check the breather hole on the open channel to ensure it's not clogged with salt creep. and move on from there. If it's clogged then the open channel is trying to become a full siphon as well, which will prevent your full siphon to purge. if you outfitted your open channel with a ball valve, close it off and see if you can purge the air from your full siphon. That should point you down the right path.

Thanks for the reply. I checked the breather hole and it is not clogged. I am currently trying to purge the siphon channel by closing the open channel..it's slowly filling until the emergency drain begins to do its job..I then open the open channel and I can hear the air from the breather hole, it immediately goes back to normal level I have it set at with no results to fixing the air trapped..

Sent from my SM-G920V using Tapatalk



[88rxna]

Also, if I place my finger over the breather ot does not cause the open channel to become a full siphon

Sent from my SM-G920V using Tapatalk



[Sisterlimonpot]

Is there a way for you to post a picture of your configuration?



[88rxna]

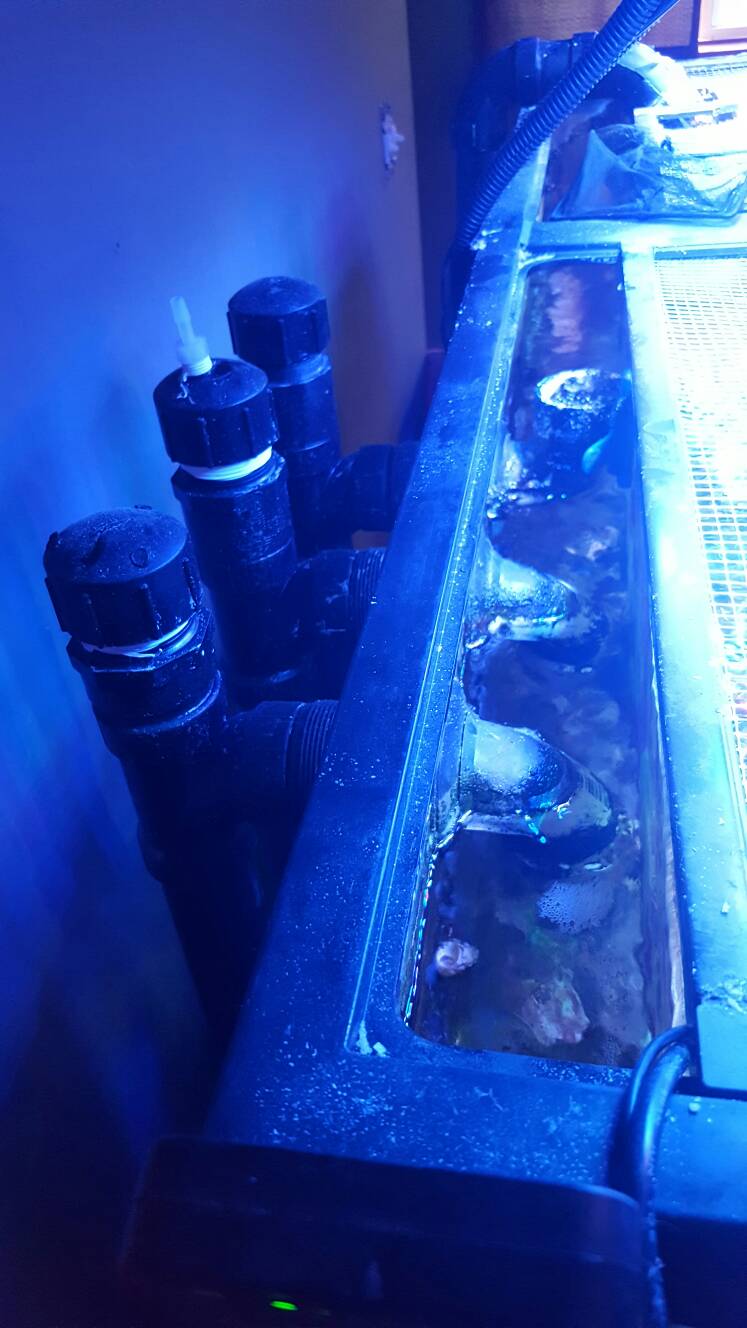

I took the air line off earlier...it's going back on tonight..let me know if you need more photos.

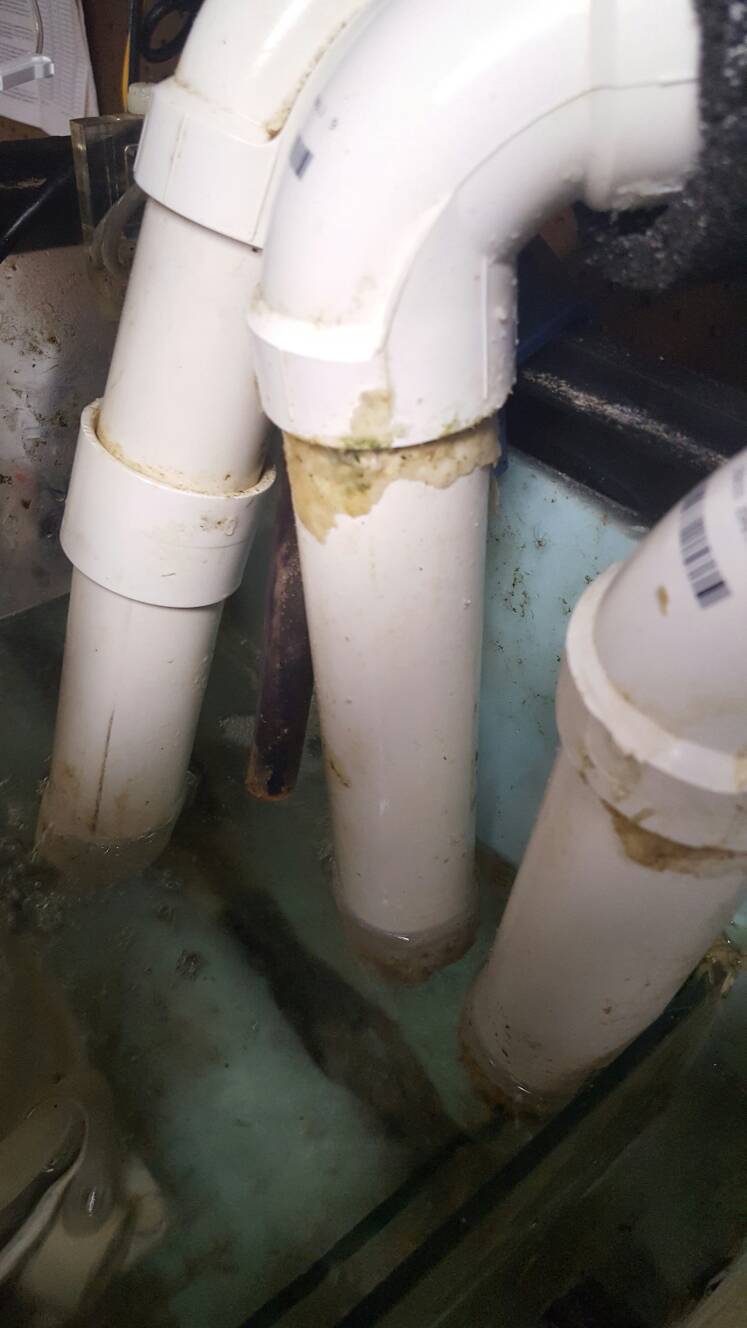

The returns go into a 50 gallon sump jist below in the basement.
2 45 elbows are used on each line..

Sent from my SM-G920V using Tapatalk



[Djbeasley05]

I took the air line off earlier...it's going back on tonight..let me know if you need more photos.
The returns go into a 50 gallon sump jist below in the basement.
2 45 elbows are used on each line..

Sent from my SM-G920V using Tapatalk

You can try shortening the full siphon to around 1/4 inch below the water surface in the sump. That might help it purge the air easier.


Sent from my iPhone using Tapatalk



[Lsufan]

It looks like u have a coupling on the syphon close to where it enters the sump. If it isn’t glued I would just remove the pipe after the coupling & see if it helps. It will be loud at the sump but it will let u know if that is the issue. If it is then cut the pipe to where it is just below the water level in the sump.



[88rxna]

It looks like u have a coupling on the syphon close to where it enters the sump. If it isn't glued I would just remove the pipe after the coupling & see if it helps. It will be loud at the sump but it will let u know if that is the issue. If it is then cut the pipe to where it is just below the water level in the sump.

Thank you for the tip. I will give it a try and report back.

Sent from my SM-G920V using Tapatalk



[88rxna]

Unfortunately that didn't not work. I removed that section near the sump to try and purge the line with no luck.

Sent from my SM-G920V using Tapatalk



[DougSupreme]

you have an air leak somewhere in the siphon line and the open channel. I'd bet the leak is at the threaded caps.



[88rxna]

Something must have moved the other day when i was doing maintenance.
I guess I wait for salt creep to find my leak
Any other ideas? I wonder if the valve is leaking somehwere.
Funny thing is, is it didn't loosen those caps since it started up years ago?

Sent from my SM-G920V using Tapatalk



[88rxna]

https://youtu.be/tNxIev7-uL0

Think I found my leak...
Taking it apart and cleaning it out now..gonna make sure the rubber seal is good and cleaned

Sent from my SM-G920V using Tapatalk



[Lsufan]

U may find that u just need to tighten it a little. The gasket may have compressed a little over time so it isn’t as tight as it used to be.



[Sisterlimonpot]

I'm glad you found it... it's so obvious now that you posted that video...



[88rxna]

Still sucking air..I may have to replace the union.
I can not get it to stop sucking air no matter how tight I get it..
Any suggestions?

Sent from my SM-G920V using Tapatalk



[Sisterlimonpot]

You may have the right idea, anything that you do to try to repair it would be the equivalent of putting a band aid on it.

You can try cleaning the area and slopping on tons of glue, but replacing everything from the valve down would be best. You can also use this a s a perfect opportunity to put the required gate valve on it rather than a ball valve, that way you have better control over the full siphon.
