How to build a CO2 regulator for your calcium reactor.

[royvoss]

i think port adapters will work ,

http://www.ebay.com/itm/Swagelok-1-...285069?hash=item33b3f1910d:g:MMcAAOSwBahVPd~B

alanle may chime in with a different solution,



[TalloneJosh]

Alright, I pulled the trigger on a regulator, and it is on its way!!! Now I just need some help locating the burkert 6011 solenoid and the hoke 1300 series metering valve, I did some searching online but couldn't really find anything, anyone know where to get these parts??



[vhuang168]

How to build a CO2 regulator for your calcium reactor.

Here's 1

https://www.ebay.com/ulk/itm/281745270968

You are going to need a 1/8" tube to npt adapter 1/4" or 1/8" depending on what size is the end you are trying to connect to.


Sent from my iPhone using Tapatalk



[alanle]

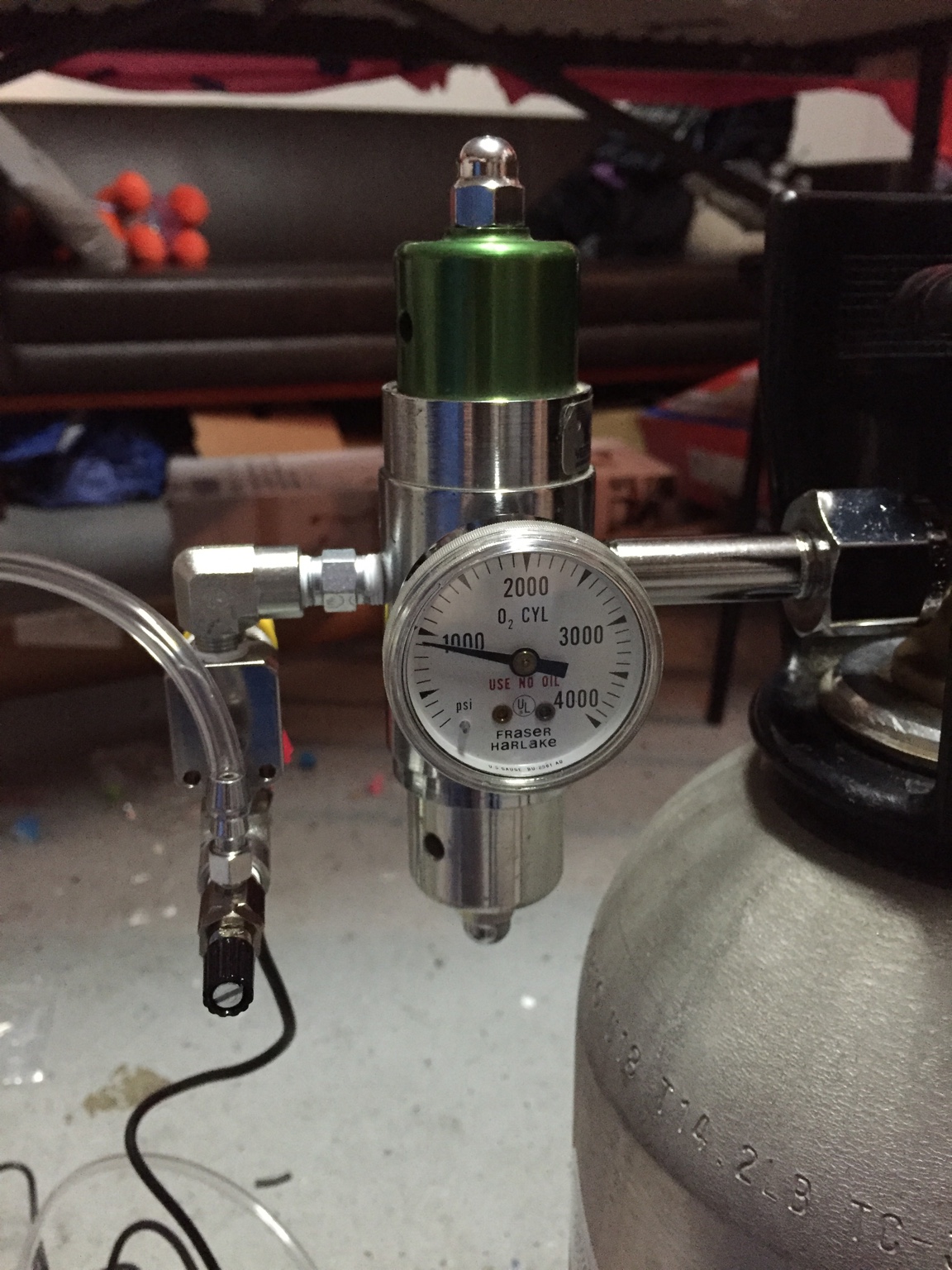

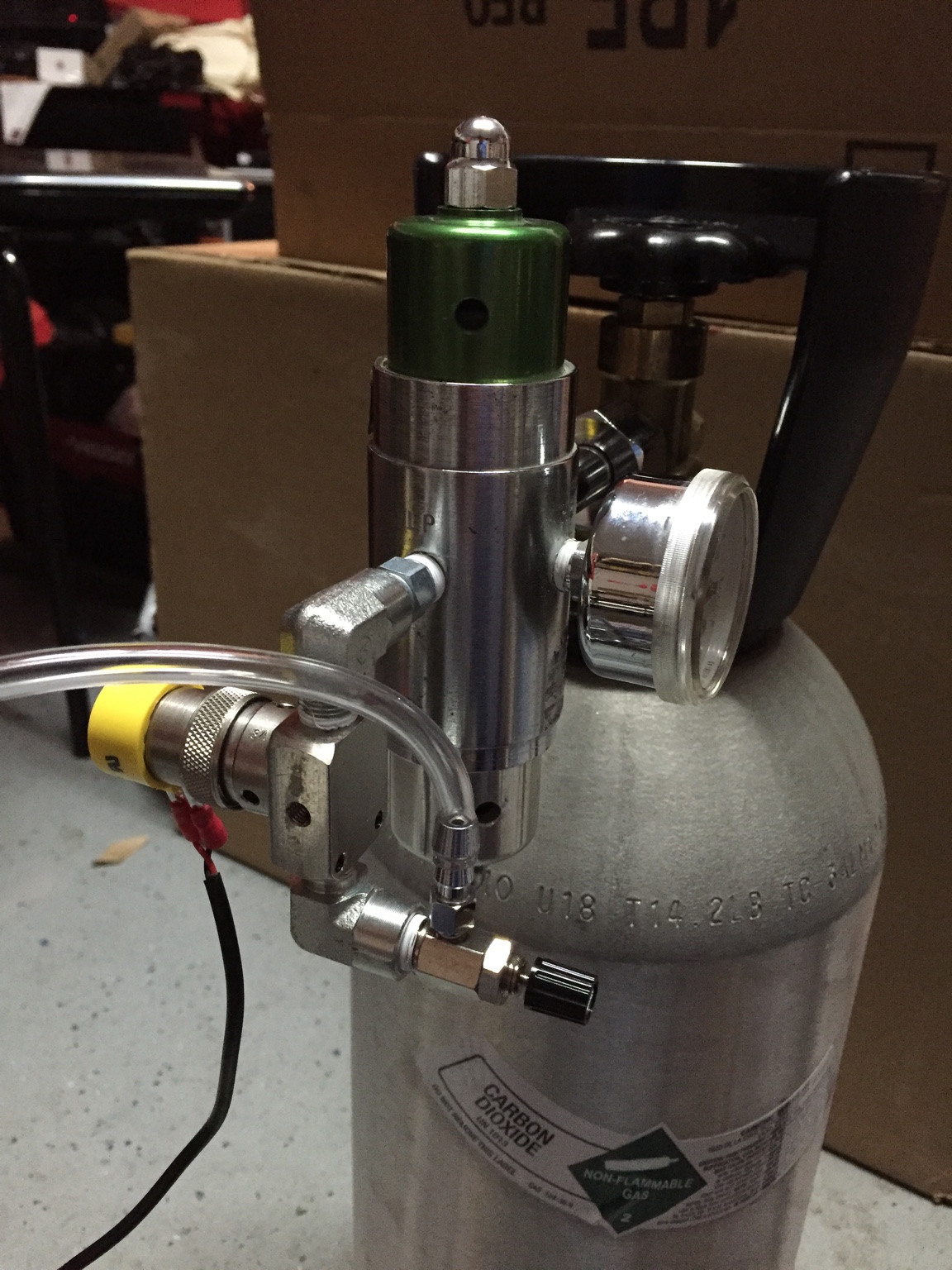

Check out this compact dual stage reg. It's a Parker veriflo medical grade. Needle valve is also small. This setup is good for people with tight space. I preset it to 40 psi output.

Sent from my iPhone using Tapatalk



[alanle]

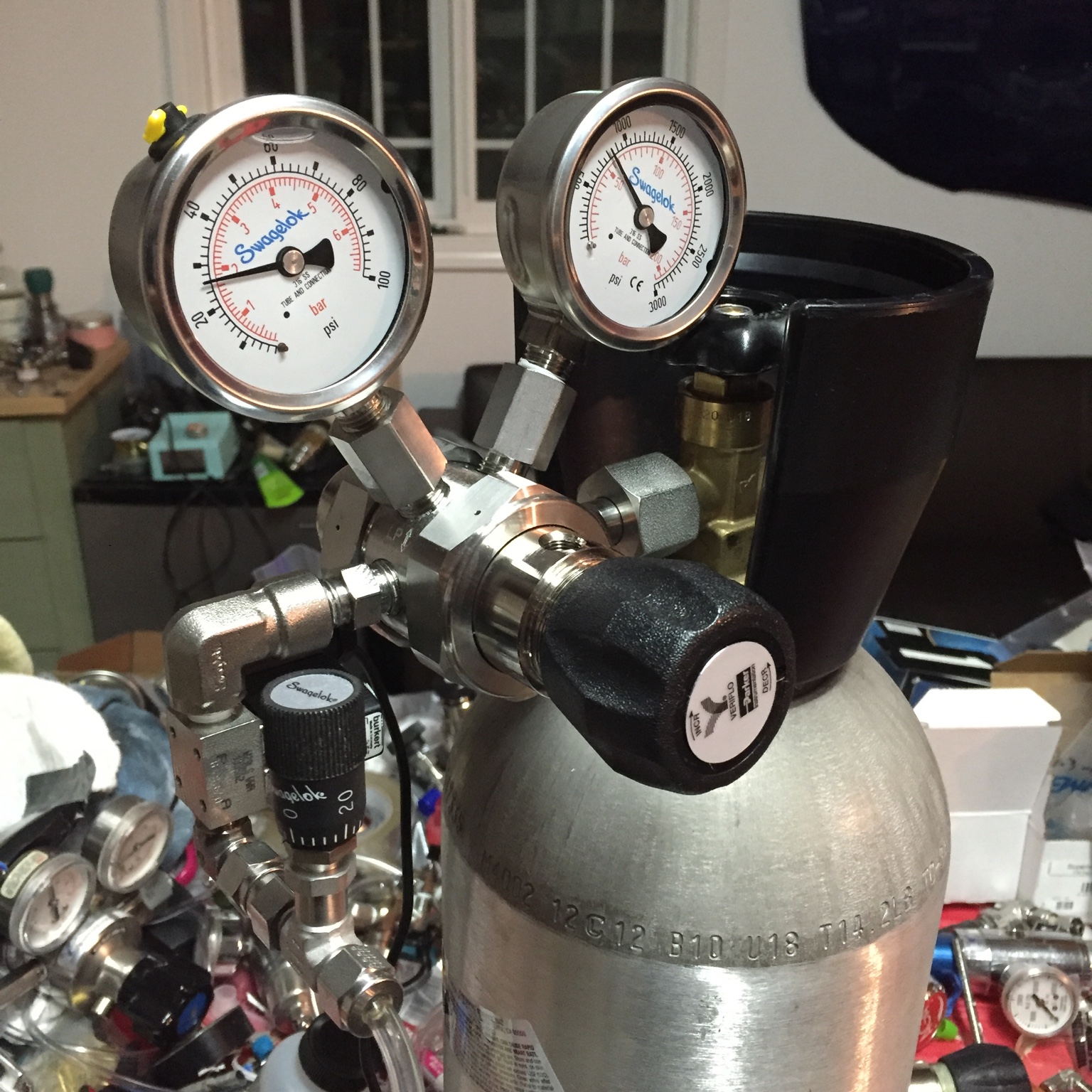

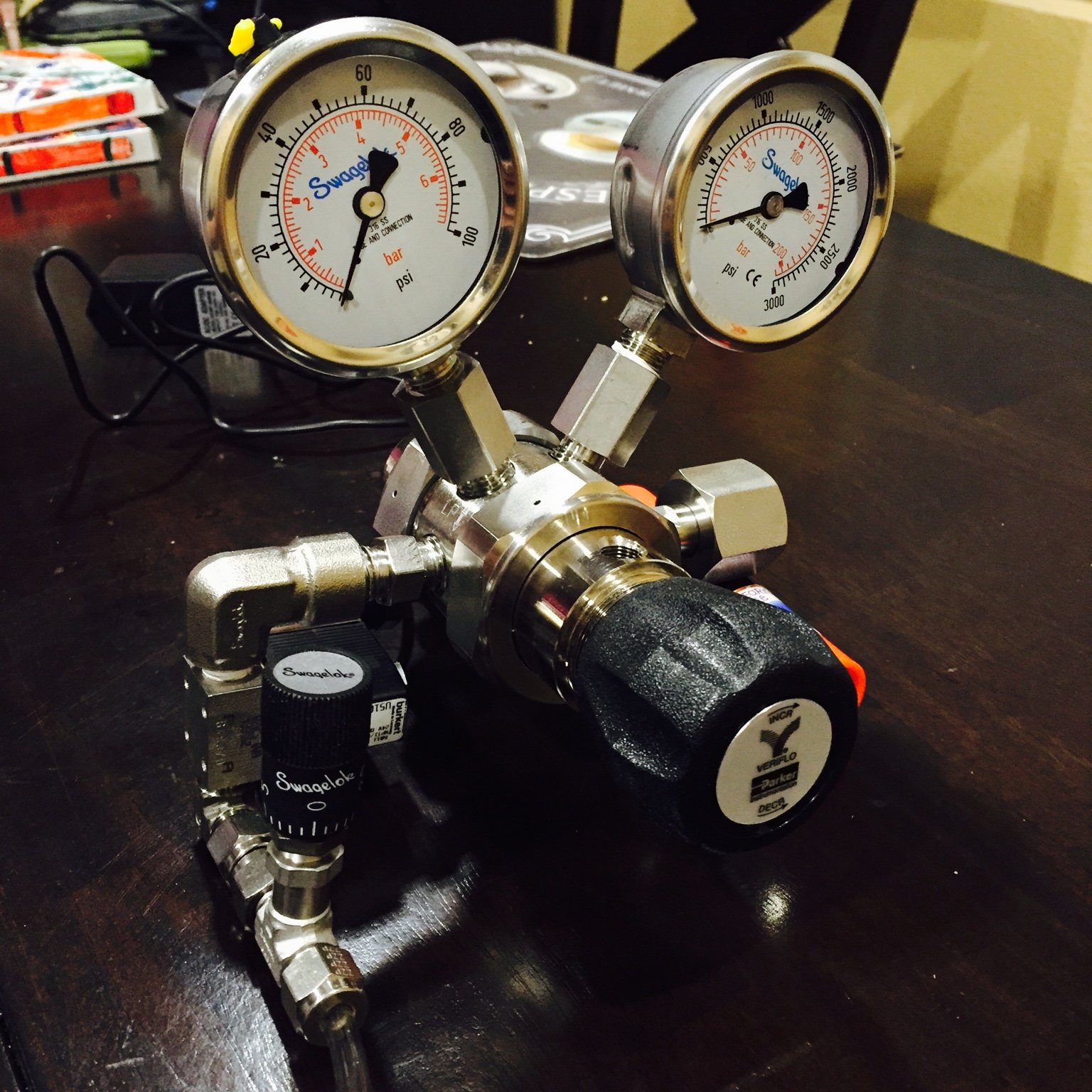

Here's a full stainless system. Regulator is a vcr Parker IR6000 with liquid filled Swagelok gauges, Burkert 6011 solenoid and Swagelok S series needle valve with vernier handle. This is the best system I built to date.

Sent from my iPhone using Tapatalk



[n8rad]

Thanks for starting this thread alanle and thanks to those who helped me get this together..



[TalloneJosh]

will this one work? http://www.ebay.com/itm/Burkert-6011-2-way-solenoid-valve-/182092133728?hash=item2a65897560:g:CK8AAOSwKtlWizF8



[alanle]

will this one work? http://www.ebay.com/itm/Burkert-601...133728?hash=item2a65897560:g:CK8AAOSwKtlWizF8

Yes



[TalloneJosh]

Awesome, thanks for the help. Now, I'm one step closer to getting this thing completed!!!!!



[alanle]

How to build a CO2 regulator for your calcium reactor.

Here's a full stainless system. Regulator is a vcr Parker IR6000 with liquid filled Swagelok gauges, Burkert 6011 solenoid and Swagelok S series needle valve with vernier handle. This is the best system I built to date.

Sent from my iPhone using Tapatalk

Hey guys something came up and I cannot keep this regulator for my new tank. It's available on the sales section.



[Jlentz]

Hey guys something came up and I cannot keep this regulator for my new tank. It's available on the sales section.

That's shiny. Wish I could afford it.



[TalloneJosh]

Alright, I ordered a swagelok needle valve, but it arrived disassembled. Does anyone know how to assemble this properly, I can't seem to figure it out. Here's a pic.



[vhuang168]

http://www.swagelok.com/downloads/webcatalogs/en/MS-01-142.pdf


Sent from my iPhone using Tapatalk



[africangrey]

From the photo it looks like the stem is missing!!! where did you order this from?



[alanle]

Yup stem is broken!


Sent from my iPhone using Tapatalk



[TalloneJosh]

yeah, that's what I was afraid of.... Guess I'm going to try and return this and see if I can get one that will work for me. Thanks.



[khngl123]

What pressure gauge are you guys recommending? Also, could someone point me to a good metering valve? Thanks



[khngl123]

Whitey SS-22RF2 Needle Valve used for $85 shipped a good deal???thanks



[alanle]

Whitey SS-22RF2 Needle Valve used for $85 shipped a good deal???thanks

It's expensive. About $50 is good



[khngl123]

It's expensive. About $50 is good

Got it!!!
